Datalogic Magellan 1100i – Barcode Scanner – 1D

Part Number: MG112010-001-105B
Model: Magellan 1100i
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Form Factor
Presentation
Scanner Capability
1D
Scanner Type
Imager

Product Description:

  Datalogic Magellan 1100i Desktop Barcode Scanner - Cable Connectivity - 1D, 2D - Laser - Imager - Omni-directional - Serial - Black
Explore all Datalogic Magellan 1100i Barcode Scanners
Add to Quote
Datalogic MG112010-001-105B Barcode Scanner
Datalogic MG112010-001-105B Barcode Scanner
Datalogic MG112010-001-105B Barcode Scanner
Datalogic MG112010-001-105B Barcode Scanner
Datalogic MG112010-001-105B Barcode Scanner
Datalogic MG112010-001-105B Barcode Scanner
Datalogic MG112010-001-105B Barcode Scanner Datalogic MG112010-001-105B Barcode Scanner Datalogic MG112010-001-105B Barcode Scanner Datalogic MG112010-001-105B Barcode Scanner Datalogic MG112010-001-105B Barcode Scanner

Full specifications (PDF)

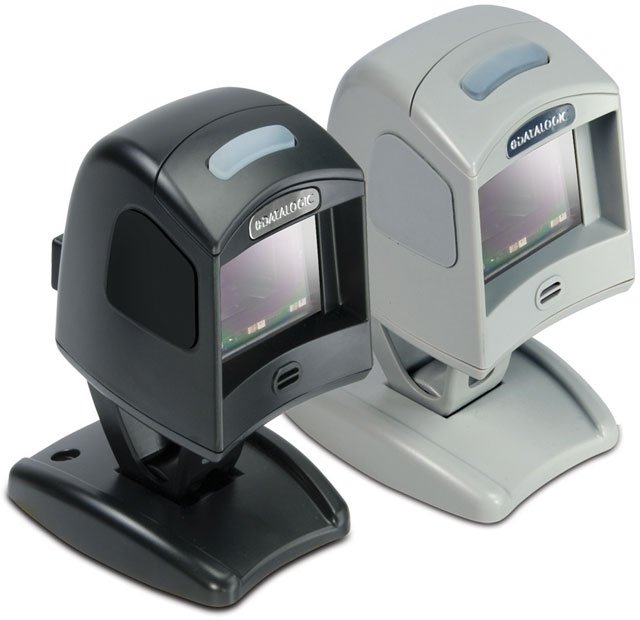

Datalogic Magellan 1100i Barcode Scanner Model Overview

The Datalogic Magellan 1100i omnidirectional presentation scanner is a high performing and versatile data collection tool for a variety of applications. The Magellan 1100i uses Datalogic's latest digital imaging technology to provide intuitive and fast reading performance on 1D and 2D barcodes as well as supporting advanced features like image capture and EAS tag deactivation. A revolutionary External Read Indicator (ERI) allows the Magellan 1100i reader to integrate with other third party RFID or EAS systems for a truly "future-proof" solution.

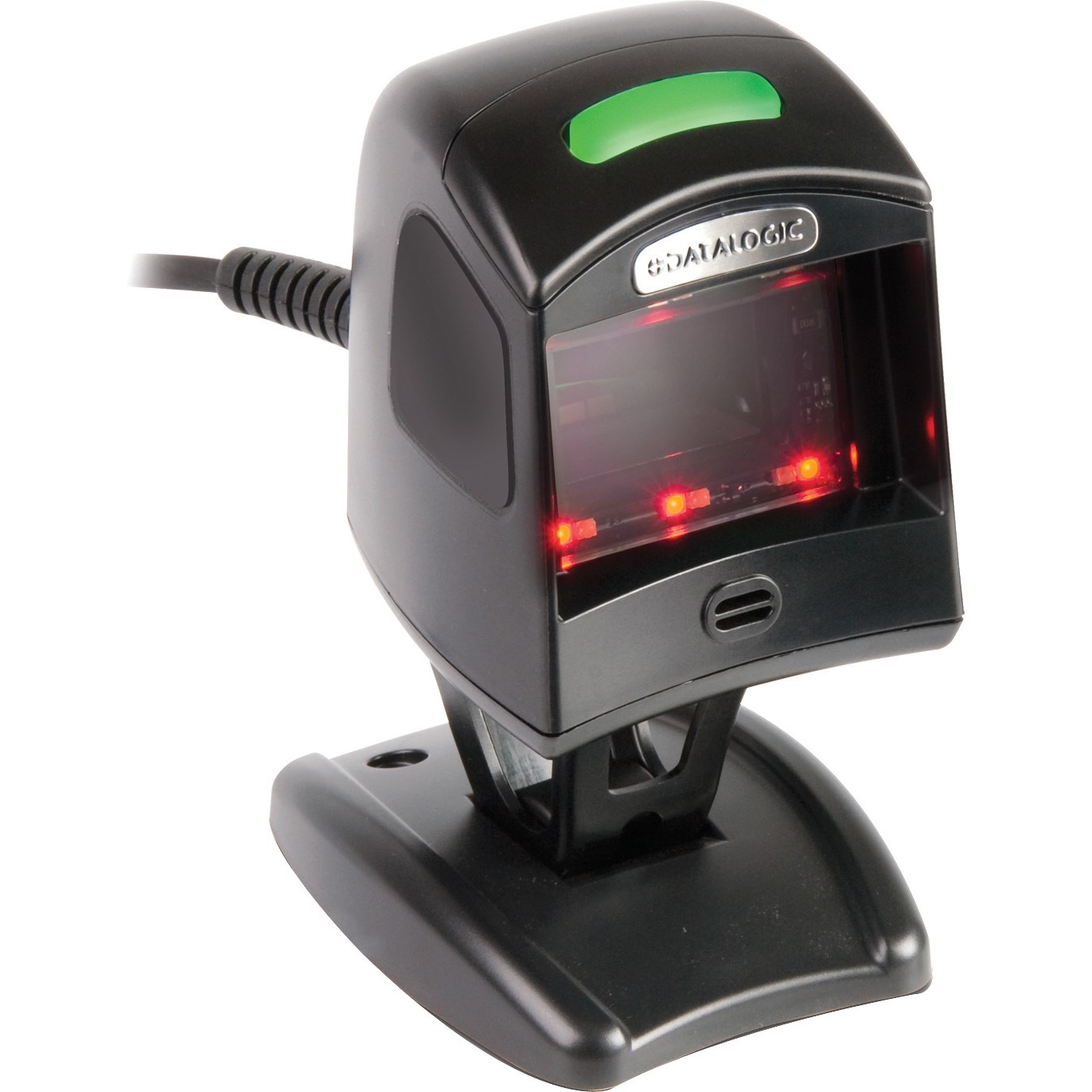

Datalogic MG112010-001-105B Barcode Scanner Overview

The Magellan 1100i omnidirectional presentation scanner is a high performing and versatile data collection tool for a variety of applications. It uses Datalogic ADC's latest digital imaging technology to provide intuitive and fast reading performance on 1D and 2D bar codes as well as supporting advanced features like image capture and EAS tag deactivation. A revolutionary External Read Indicator (ERI) allows the Magellan 1100i reader to integrate with other third party RFID or EAS systems for a truly "future-proof" solution.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

2D Codes:

  • Aztec Code
  • Data Matrix
  • MaxiCode
  • QR Code

Stacked Codes:

  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MicroPDF417
  • PDF417
Light Source:
Laser
Image Sensor Type:
Imager
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0.5" - 1.8"@5mil - 1D / Linear Codes
  • 0.25" - 2.25"@7.5mil - 1D / Linear Codes
  • 0" - 5"@10mil - 1D / Linear Codes
  • 0" - 6"@13mil - 1D / Linear Codes
  • 0" - 6.7"@20mil - 1D / Linear Codes
  • 1.5" - 6.3"@6.6mil - PDF
  • 0" - 1.8"@10mil - Data Matrix
  • 1" - 6"@15mil - PDF
  • 0" - 5"@24mil - Data Matrix
Scan Pattern:
Omni-directional
Features:
Scan Button
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Form Factor:
Desktop
Product Color:
Black
Height:
3.7"
Width:
3.3"
Depth:
2.8"
Weight (Approximate):
7 oz
Miscellaneous
Package Contents:
  • Magellan 1100i Desktop Barcode Scanner
  • 12ft RS-232 DB-9 POT Cable
  • 3" Black Tilting Stand Kit
Additional Information:

USB Cable separate

Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
