Datalogic MG110010-000 Barcode Scanner

Datalogic MG1501-10210-1100 Barcode Scanner A newer version of this item is available.
It is replaced by the Datalogic MG1501-10210-1100 Barcode Scanner.
Datalogic Magellan 1100i - Multi-Interface, No Button, 1D only, Black, RS232 Config. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# 8-0734-08), PS/2 (Part# 8-0752-01), or RS-232 Serial cables (Part# 8-0736-80) and a Power supply (Part# 11-0387).
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

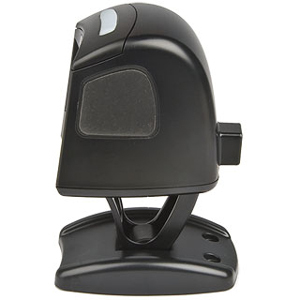

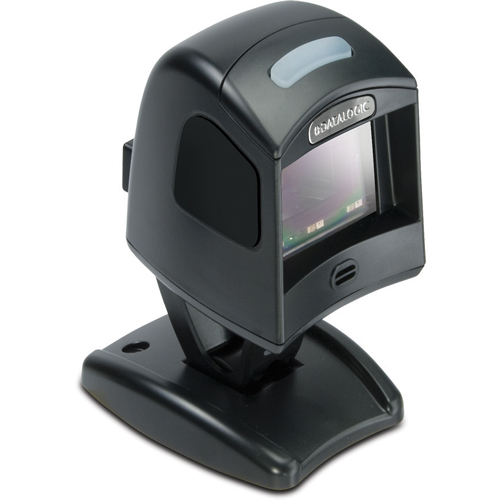

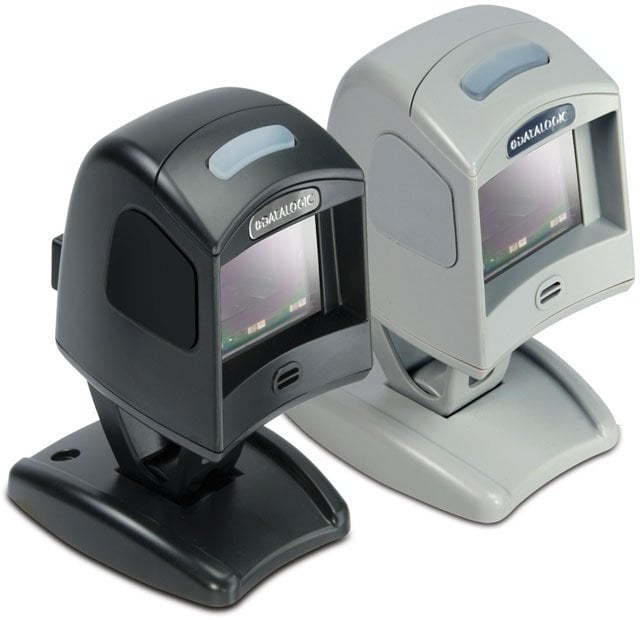

Datalogic Magellan 1100i Barcode Scanner Model Overview
The Datalogic Magellan 1100i omnidirectional presentation scanner is a high performing and versatile data collection tool for a variety of applications. The Magellan 1100i uses Datalogic's latest digital imaging technology to provide intuitive and fast reading performance on 1D and 2D barcodes as well as supporting advanced features like image capture and EAS tag deactivation. A revolutionary External Read Indicator (ERI) allows the Magellan 1100i reader to integrate with other third party RFID or EAS systems for a truly "future-proof" solution.
Datalogic MG110010-000 Barcode Scanner Overview

The Magellan 1100i omnidirectional presentation scanner is a high performing and versatile data collection tool for a variety of applications. It uses Datalogic Scanning's latest digital imaging technology to provide intuitive and fast reading performance on 1D and 2D bar codes as well as supporting advanced features like image capture and EAS tag deactivation. A revolutionary External Read Indicator (ERI) allows the Magellan 1100i reader to integrate with other third party RFID or EAS systems for a truly "future-proof" solution.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linear Codes

2D Codes:

  • Aztec Code
  • Data Matrix
  • MaxiCode
  • QR Code

Stacked Codes:

  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MicroPDF417
  • PDF417
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0.5" - 1.8"@5mil
  • 0.25" - 2.25"@7.5mil
  • 0" - 5"@10mil
  • 0" - 7"@13mil
  • 0" - 7"@20mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Form Factor:
Desktop
Product Color:
Black
Height:
2.3"
Width:
2.8"
Depth:
3.9"
Weight (Approximate):
7 oz
Miscellaneous
Additional Information:

USB Cable separate

Item Numbers
GTIN: 5711045277115
EAN: 5711045277115
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic MG110010-000 Barcode Scanner is also known as DTL-MG110010000 or MG110010000.
