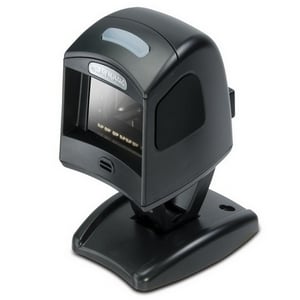

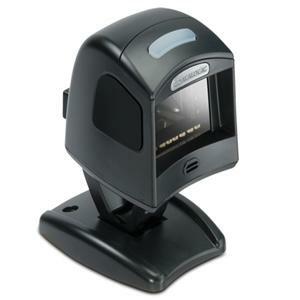

Datalogic MG102041-001-411BR Barcode Scanner

Datalogic Magellan 1000i - Magellan 1000i Barcode Reader - Wired - Imager
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Laser scan engine guarantees rapid error free data entry
Read More

Full specifications (PDF)

Omnidirectional Imaging

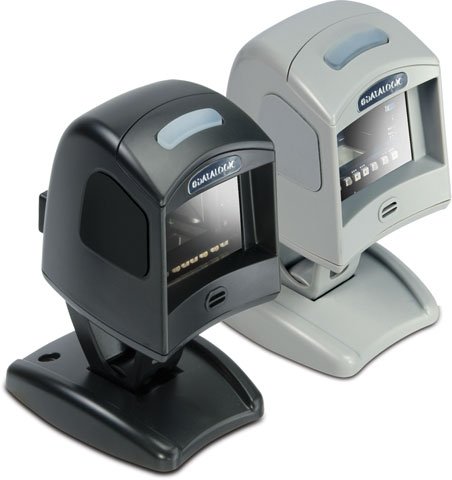

The Magellan 1000i is an Omnidirectional Imaging Scanner designed for "small-counter" retail environments. This new imaging technology improves checkout productivity by allowing users to scan barcodes in any orientation with a sweeping motion or a presentation style of scanning. The ergonomic design and small size allow for either hands-free scanning for small items or for use as a handheld scanner for large items. To optimize scan time, the tilting stand allows individual users to adjust the scanner to a comfortable scanning position. Additionally, the omnidirectional imaging technology of the Magellan 1000i eliminates misreads and quickly scans hard-to-read and damaged barcodes.
Datalogic MG102041-001-411BR Overview

Magellan 1000i Bar Code Reader imager in poor lighting conditions, through a counter window, or with direct contact. Datalogic Scanning offers high-performance, industry-leading quality the Magellan 1000i imager is compact, durable, and robust.

Protect Your Product

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D/Linear Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

Retail Codes:

  • UPC Versions A&E
  • UPC Supplementals (Bookland & Coupon Code)
  • UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
  • Dual Bar Codes for Japan (2 label read)
  • Reduced Space Symbology (RSS) RSS-14, RSS expanded, and
  • RSS Stacked Omni-directional)
  • EAN 8 & 13 with full expansion 8 to 13
  • JAN 8 & 13 with full expansion 8 to 13
  • EAN/JAN two label
  • UCC/EAN 128
  • Italian Pharmacode
  • Supports GTIN

Industrial Codes:

  • Code 39 (with full ASCII)
  • Code 128 (Up to 80 characters, including Code 39 conversions)
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Codabar
  • MSI/Plessey

Stacked Codes:

  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
Light Source:
Laser
Image Sensor Type:
Imager
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0.5" - 1.8"@5mil
  • 0.25" - 2.25"@7.5mil
  • 0" - 5"@10mil
  • 0" - 6"@13mil
  • 0" - 6.7"@20mil
Scan Pattern:
Omni-directional
Stand Included:
Yes
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Color:
Black
Height:
5.5"
Width:
2.9"
Depth:
3.8"
Weight (Approximate):
13.58 oz
Miscellaneous
Package Contents:
  • Magellan 1000i Bar Code Scanner
  • Tilting riser stand
  • Fixed mounting plate
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
