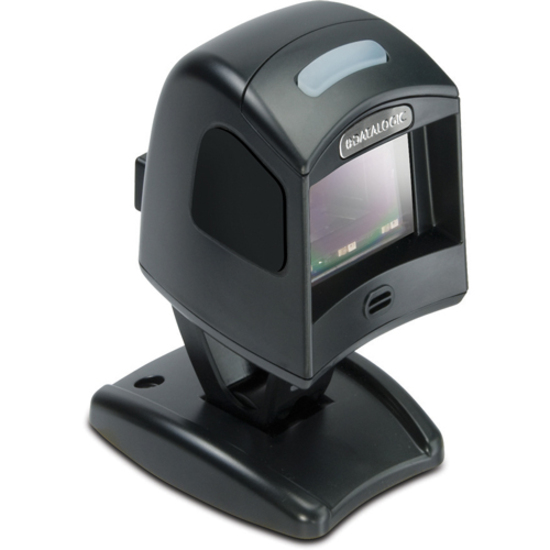

Datalogic MG102041-000-411R Barcode Scanner

Datalogic Magellan 1000i - Omnidirectional Imaging Scanner (5V with Trigger, USB and 12 ft. POT Cable) - Color: Black
  • Perfect for space-obliged situations
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More

Full specifications (PDF)

Omnidirectional Imaging

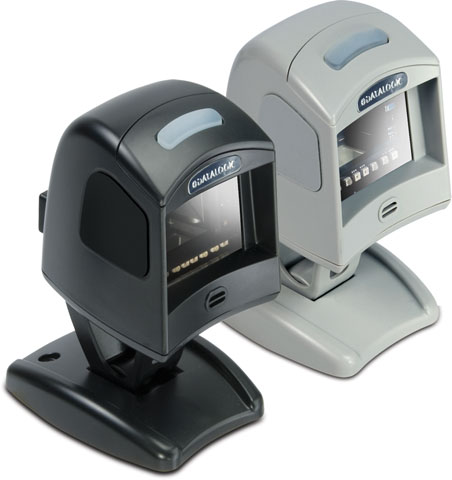

The Magellan 1000i is an Omnidirectional Imaging Scanner designed for "small-counter" retail environments. This new imaging technology improves checkout productivity by allowing users to scan barcodes in any orientation with a sweeping motion or a presentation style of scanning. The ergonomic design and small size allow for either hands-free scanning for small items or for use as a handheld scanner for large items. To optimize scan time, the tilting stand allows individual users to adjust the scanner to a comfortable scanning position. Additionally, the omnidirectional imaging technology of the Magellan 1000i eliminates misreads and quickly scans hard-to-read and damaged barcodes.
Datalogic MG102041-000-411R Overview

The Magellan 1000i Bar Code Reader represents the newest breakthrough in data capture technology from Datalogic Scanning. The world's first imaging based presentation scanner, the Magellan 1000i Bar Code Reader is designed for convenience stores, drug stores, specialty stores and other medium volume checkout environments. The Magellan 1000i Bar Code Reader solid-state construction with no moving parts increases reliability while the ultra-small size frees up valuable counter selling space. The Magellan 1000i Bar Code Reader excels at capturing hard-to-read bar codes in an omni-direction orientation and supports both presentation and sweep scanning styles. The Magellan 1000i Bar Code Reader also offers an optional targeted scanning mode for scanning close proximity bar codes like those on a pick list.

Protect Your Product

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:

Retail Codes:

  • UPC Versions A&E
  • UPC Supplementals (Bookland & Coupon Code)
  • UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
  • Dual Bar Codes for Japan (2 label read)
  • Reduced Space Symbology (RSS) RSS-14, RSS expanded, and RSS Stacked Omni-directional)
  • EAN 8 & 13 with full expansion 8 to 13
  • JAN 8 & 13 with full expansion 8 to 13
  • EAN/JAN two label
  • UCC/EAN 128
  • Italian Pharmacode
  • Supports GTIN

Industrial Codes:

  • Code 39 (with full ASCII)
  • Code 128 (Up to 80 characters, including Code 39 conversions)
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Codabar
  • MSI/Plessey
Maximum Scan Resolution:
5 mil
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Color:
Black
Height:
3.3"
Width:
2.8"
Depth:
3.7"
Weight (Approximate):
7 oz
Miscellaneous
Package Contents:
  • Magellan 1000i Bar Code Reader
  • 12' USB POT Cable
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701

Recommended Accessories for Model: Datalogic Magellan 1000i Barcode Scanner

Category

  • Accessories (14)
Recommended Accessories for Model: Datalogic Magellan 1000i Barcode Scanner

Accessories

Datalogic (11-0114)
3" riser stand with tilt adjustment & fixed mounting holes, black
In Stock: Ships Same Day
$25.10
+ Add to Quote
Datalogic (8-0429-04)
Direct Connect Cable - 12 ft.
Datalogic (8-0481-12)
POT Cable - USB - 12 ft.
Datalogic (8-0429-02)
Coiled POT Cable - 12 ft.
Datalogic (8-0423-02)
RS-232 Cable - Female - 12 ft.
Datalogic (8-0577-11)
12' Magellan 82/85/95 aux. port cable
Datalogic (8-0739-02)
Handheld Cable - 12 ft. Data Transfer Cable
Datalogic (11-0117)
Gray Fixed Mounting Plate (for the Magellan 1000i)
Datalogic (11-0116)
Black Fixed Mounting Plate - Black
Datalogic (11-0115)
3" riser stand with tilt adjustment & fixed mounting holes, gray
Datalogic (8-0671-01)
Keyboard wedge Cable - 3 ft.
Datalogic (8-0736-02)
8' coiled DB-25 RS-232 cable. Requires external power supply, not included.
Datalogic (11-0143)
9" Flexible Gooseneck Barcode scanner Stand - Black
Datalogic (11-0160)
GooseNeck Flexible Stand for Barcode scanner - Gray

The Datalogic MG102041-000-411R is also known as Data Logic DTL-MG102041000411R or MG102041000411R .
