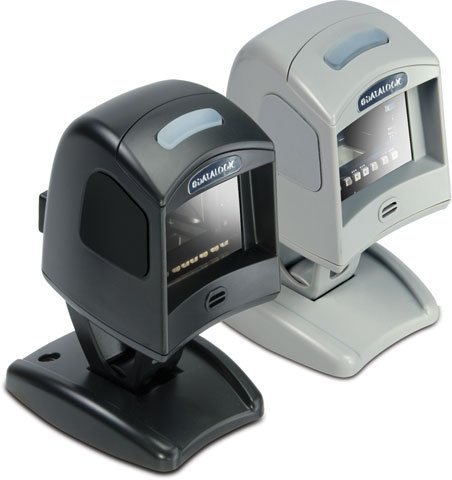

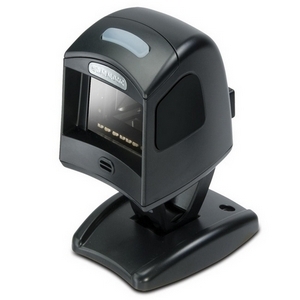

Datalogic MG102010-101-106R Barcode Scanner

Datalogic Magellan 1000i - Omnidirectional Scanner kit. IncludesRS-232cable.

Full specifications (PDF)

Omnidirectional Imaging
The Magellan 1000i is an Omnidirectional Imaging Scanner designed for "small-counter" retail environments. This new imaging technology improves checkout productivity by allowing users to scan barcodes in any orientation with a sweeping motion or a presentation style of scanning. The ergonomic design and small size allow for either hands-free scanning for small items or for use as a handheld scanner for large items. To optimize scan time, the tilting stand allows individual users to adjust the scanner to a comfortable scanning position. Additionally, the omnidirectional imaging technology of the Magellan 1000i eliminates misreads and quickly scans hard-to-read and damaged barcodes.

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Omni-directional
  • Scan Rate: 1170 scan/s
  • Connectivity Technology: Cable
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • UPC Versions A&E
    • EAN/JAN Two Label
    • UCC/EAN 128
    • Italian Pharmacode
    • Supports GTIN
    • Code 39 Full ASCII
    • Code 128
    • Code 93
    • Interleaved 2 of 5
    • Standard 2 of 5
    • Codabar
    • MSI/PLESSEY
    • DataMatrix
    • UPC Versions A&E
    • EAN/JAN Two Label
    • UCC/EAN 128
    • Italian Pharmacode
    • Supports GTIN
    • Code 39 Full ASCII
    • Code 128
    • Code 93
    • Interleaved 2 of 5
    • Standard 2 of 5
    • Codabar
    • MSI/PLESSEY
    • DataMatrix
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0.50" - 1.75"@5 mil
    • 0.25" - 2.25"@7.50 mil
    • 0 mil - 6.75"@20 mil
    • 0 mil - 6"@13 mil - UPC

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: 1000i
  • Product Name: Magellan 1000i Barcode Reader
  • Product Line: Magellan

Physical Characteristics

  • Height: 3.3"
  • Width: 2.8"
  • Depth: 3.7"
  • Color: Black
  • Weight (Approximate): 13.60 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Magellan 1000i Barcode Reader
    • 12' RS-232 Cable
    • US Power Supply
    • Stand
    • Magellan 1000i Barcode Reader
    • 12' RS-232 Cable
    • US Power Supply
    • Stand
  • Certifications & Standards:
    • Electrical:
    • Gost R
    • TÜV
    • UL
    • cUL
    • NOM
    • Emissions:
    • FCC
    • EN 55022
    • AS/NZS CISPR 22
    • VCCIM
    • CNS 13438
    • ICES-003
    • Restriction of Hazardous Substances:
    • EU RoHS
    • RoHS Compliance
  • Additional Information:
    • Supported Interfaces:
    • SerialUSBKeyboard WedgeWand EmulationIBM 46XX

Warranty

  • Limited Warranty: 2 Year

Power Description

  • Input Voltage: 5 V DC
Protect Your Product

Full specifications (PDF)

Brand Datalogic
Model Magellan 1000i
