Datalogic Magellan 1000i – Barcode Scanner – 2D

Part Number: MG101010-102-106BR

Model: Magellan 1000i

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

Scanner Capability

Scanner Type

CCD, Imager

Product Description:

Datalogic Magellan 1000i Bar Code Reader - Wired - Imager

Explore all Datalogic Magellan 1000i Barcode Scanners

Add to Quote

Datalogic MG101010-102-106BR Barcode Scanner

Overview

Full specifications (PDF)

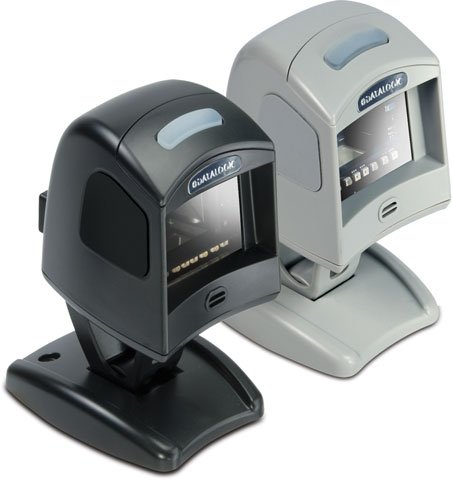

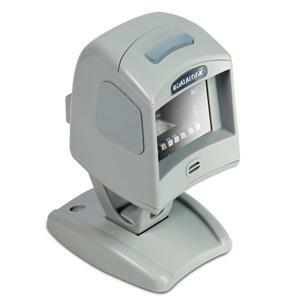

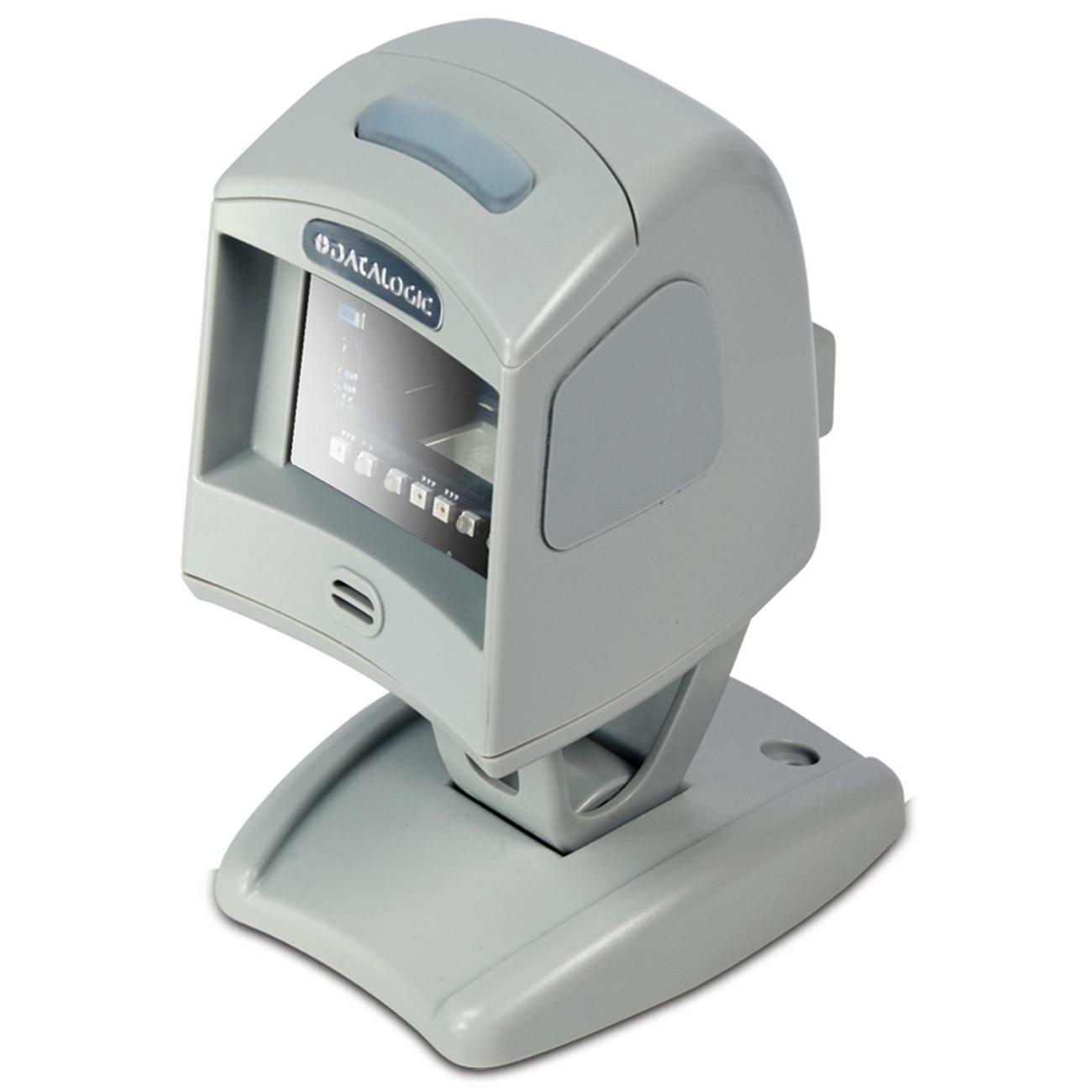

Datalogic Magellan 1000i Barcode Scanner Model Overview

The Magellan 1000i is an Omni-Directional Imaging Scanner designed for "small-counter" retail environments. This new imaging technology improves checkout productivity by allowing users to scan barcodes in any orientation with a sweeping motion or a presentation style of scanning. The ergonomic design and small size allow for either hands-free scanning for small items or for use as a hand-held scanner for large items. To optimize scan time, the tilting stand allows individual users to adjust the scanner to a comfortable scanning position. Additionally, the omni-directional imaging technology of the Magellan 1000i eliminates misreads and quickly scans hard-to-read and damaged barcodes.

Datalogic MG101010-102-106BR Barcode Scanner Overview

Magellan 1000i Bar Code Reader imager in poor lighting conditions, through a counter window, or with direct contact. Datalogic Scanning offers high-performance, industry-leading quality the Magellan 1000i imager is compact, durable, and robust.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Scanning Capability:

Barcode Symbology Supported:

1D/Linear Codes:

Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

Retail Codes:

UPC Versions A&E
UPC Supplementals (Bookland & Coupon Code)
UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
Dual Bar Codes for Japan (2 label read)
Reduced Space Symbology (RSS) RSS-14, RSS expanded, and
RSS Stacked Omni-directional)
EAN 8 & 13 with full expansion 8 to 13
JAN 8 & 13 with full expansion 8 to 13
EAN/JAN two label
UCC/EAN 128
Italian Pharmacode
Supports GTIN

Industrial Codes:

Code 39 (with full ASCII)
Code 128 (Up to 80 characters, including Code 39 conversions)
Code 93
Interleaved 2 of 5
Standard 2 of 5
Codabar
MSI/Plessey

Stacked Codes:

GS1 DataBar Expanded Stacked
GS1 DataBar Stacked
GS1 DataBar Stacked Omnidirectional

Light Source:

Laser

Image Sensor Type:

Imager

Maximum Scan Resolution:

5 mil

Depth of Field:

0.5" - 1.8"@5mil
0.25" - 2.25"@7.5mil
0" - 5"@10mil
0" - 6"@13mil
0" - 6.7"@20mil

Scan Pattern:

Omni-directional

Stand Included:

Yes

Interfaces/Ports

Host Interface:

Serial

Physical Characteristics

Form Factor:

Desktop

Product Color:

Gray

Height:

5.5"

Width:

2.9"

Depth:

3.8"

Weight (Approximate):

13.58 oz

Miscellaneous

Package Contents:

Magellan 1000i Bar Code Scanner
Tilting riser stand
Fixed mounting plate

Additional Information:

USB Cable separate

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

2 Year

Item Numbers

UNSPSC: 43211701
