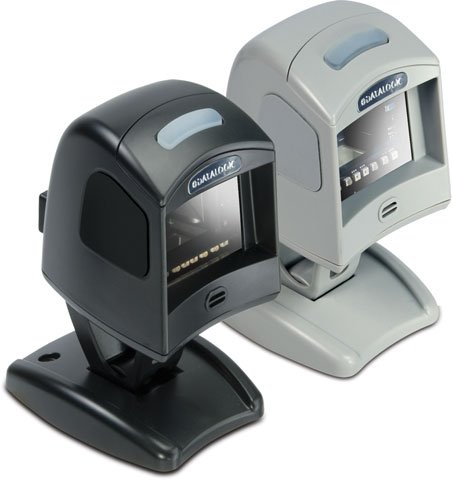

Datalogic Magellan 1000i – Barcode Scanner – 1D

Part Number: MG10-6031-001-302
Model: Magellan 1000i
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Datalogic Magellan 1000i Bar Code Reader - Cable Connectivity - 1D, 2D - LED - Imager - Omni-directional - IBM 46XX, Serial - Black
Explore all Datalogic Magellan 1000i Barcode Scanners
Add to Quote
Datalogic MG10-6031-001-302 Barcode Scanner
Datalogic MG10-6031-001-302 Barcode Scanner
Datalogic MG10-6031-001-302 Barcode Scanner
Datalogic MG10-6031-001-302 Barcode Scanner Datalogic MG10-6031-001-302 Barcode Scanner Datalogic MG10-6031-001-302 Barcode Scanner
Full specifications (PDF)

Datalogic Magellan 1000i Barcode Scanner Model Overview

The Magellan 1000i is an Omni-Directional Imaging Scanner designed for "small-counter" retail environments. This new imaging technology improves checkout productivity by allowing users to scan barcodes in any orientation with a sweeping motion or a presentation style of scanning. The ergonomic design and small size allow for either hands-free scanning for small items or for use as a hand-held scanner for large items. To optimize scan time, the tilting stand allows individual users to adjust the scanner to a comfortable scanning position. Additionally, the omni-directional imaging technology of the Magellan 1000i eliminates misreads and quickly scans hard-to-read and damaged barcodes.
Datalogic MG10-6031-001-302 Barcode Scanner Overview

The Magellan 1000i reader features a unique approach to imaging technology by using digital scan patterns for omnidirectional reading. Its compact size makes it the ideal solution when counter space is limited. Multiple reading modes match the right scanning technique to the item to be read. Offering hands-free operation using either presentation or sweep scanning styles, it can also be picked up and used as a handheld reader to scan larger items. The 1000i also offers an optional targeted mode for reading close proximity codes, like those found on price look-up (PLU) lists. The Magellan 1000i presentation reader offers multi-interface support built-in to every scanner that allows new interfaces to be used just by a simple program parameter change and changing cables.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • UPC Versions A&E
  • UPC Supplementals (Bookland & Coupon Code)
  • UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
  • Dual Bar Codes for Japan (2 label read)
  • Reduced Space Symbology (RSS) RSS-14,RSS expanded and RSS Stacked Omni-directional)
  • EAN 8 & 13 with full expansion 8 to 13
  • JAN 8 & 13 with full expansion 8 to 13
  • EAN/JAN two label
  • UCC/EAN 128
  • Italian Pharmacode
  • Supports GTIN
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0.5" - 1.8"@5mil
  • 0.25" - 2.25"@7.5mil
  • 0" - 5.0"@10mil
  • 0" - 6.0"@13mil - UPC
  • 0" - 6.7"@20mil
Scan Pattern:
Omni-directional
Stand Included:
Yes
Interfaces/Ports
Host Interface:
  • IBM 46XX
  • Serial
Physical Characteristics
Form Factor:
Desktop
Product Color:
Black
Height:
3.3"
Width:
2.8"
Depth:
3.7"
Weight (Approximate):
13.60 oz
Miscellaneous
Package Contents:
  • Magellan 1000i Bar Code Reader
  • Tilting Riser Stand
  • Fixed Mounting Plate
Additional Information:
  • Pitch Angle 65
  • Skew angle 75

USB Cable separate

Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
