Datalogic MG10-2020-101-201 Barcode Scanner

Datalogic Magellan 1000i - Magellan 1000i Barcode Reader - Wired - Imager
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Read More

Full specifications (PDF)

Omnidirectional Imaging

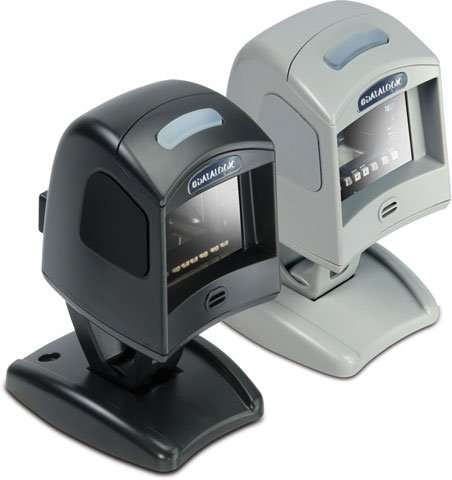

The Magellan 1000i is an Omnidirectional Imaging Scanner designed for "small-counter" retail environments. This new imaging technology improves checkout productivity by allowing users to scan barcodes in any orientation with a sweeping motion or a presentation style of scanning. The ergonomic design and small size allow for either hands-free scanning for small items or for use as a handheld scanner for large items. To optimize scan time, the tilting stand allows individual users to adjust the scanner to a comfortable scanning position. Additionally, the omnidirectional imaging technology of the Magellan 1000i eliminates misreads and quickly scans hard-to-read and damaged barcodes.
Datalogic MG10-2020-101-201 Overview

The Magellan 1000i reader features a unique approach to imaging technology by using digital scan patterns for omni directional reading. This innovative technology offers maximum reliability and high performance while excelling at capturing hard-to-read bar codes. Its compact size makes it the ideal solution when counter space is limited. Its precise imaging scan volume helps to prevent accidental misreads of items caused by stray scan lines reducing overall error correction time caused by these misreads.

Protect Your Product

Full specifications (PDF)

Technical Information
Connectivity Technology:
Scanning Capability:
Barcode Symbology Supported:

1D/Linear Codes:

  • Auto discriminates all standard 1D codes including GS1 DataBar linear codes

Retail Codes:

  • UPC Versions A&E
  • UPC Supplementals (Bookland & Coupon Code)
  • UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
  • Dual Bar Codes for Japan (2 label read)
  • Reduced Space Symbology (RSS) RSS-14, RSS expanded, and
  • RSS Stacked Omni-directional)
  • EAN 8 & 13 with full expansion 8 to 13
  • JAN 8 & 13 with full expansion 8 to 13
  • EAN/JAN two label
  • UCC/EAN 128
  • Italian Pharmacode
  • Supports GTIN

Industrial Codes:

  • Code 39 (with full ASCII)
  • Code 128 (Up to 80 characters, including Code 39 conversions)
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Codabar
  • MSI/Plessey

Stacked Codes:

  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
Light Source:
Image Sensor Type:
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0.5" - 1.8"@5mil - 1D / Linear Codes
Stand Included:
Host Interface:
  • IBM 46XX
  • Keyboard Wedge
Physical Characteristics
Form Factor:
Weight (Approximate):
7 oz
Package Contents:
  • Magellan 1000i Bar Code Scanner
  • Tilting riser stand
  • Fixed mounting plate
Additional Information:

USB Cable separate

Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
