Datalogic Magellan 1000i – Barcode Scanner – 1D

Part Number: MG10-0041-001-411
Model: Magellan 1000i
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Omni-directional Imaging Scanner Optional: Target Scanning Button
Explore all Datalogic Magellan 1000i Barcode Scanners
Add to Quote
Datalogic MG10-0041-001-411 Barcode Scanner
Datalogic MG10-0041-001-411 Barcode Scanner
Datalogic MG10-0041-001-411 Barcode Scanner
Datalogic MG10-0041-001-411 Barcode Scanner
Datalogic MG10-0041-001-411 Barcode Scanner
Datalogic MG10-0041-001-411 Barcode Scanner
Datalogic MG10-0041-001-411 Barcode Scanner Datalogic MG10-0041-001-411 Barcode Scanner Datalogic MG10-0041-001-411 Barcode Scanner Datalogic MG10-0041-001-411 Barcode Scanner Datalogic MG10-0041-001-411 Barcode Scanner Datalogic MG10-0041-001-411 Barcode Scanner
Full specifications (PDF)

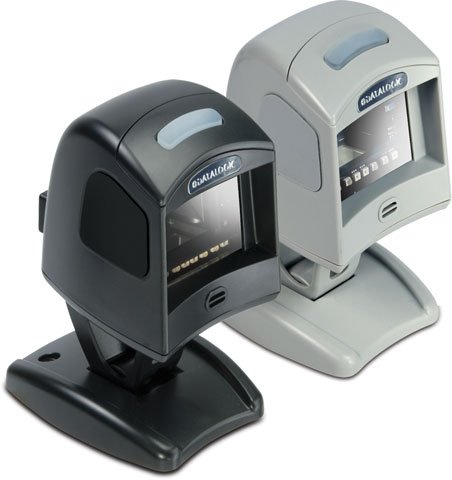

Datalogic Magellan 1000i Barcode Scanner Model Overview

The Magellan 1000i is an Omni-Directional Imaging Scanner designed for "small-counter" retail environments. This new imaging technology improves checkout productivity by allowing users to scan barcodes in any orientation with a sweeping motion or a presentation style of scanning. The ergonomic design and small size allow for either hands-free scanning for small items or for use as a hand-held scanner for large items. To optimize scan time, the tilting stand allows individual users to adjust the scanner to a comfortable scanning position. Additionally, the omni-directional imaging technology of the Magellan 1000i eliminates misreads and quickly scans hard-to-read and damaged barcodes.
Datalogic MG10-0041-001-411 Barcode Scanner Overview

The Magellan 1000i Bar Code Reader is designed for small counter retail environments incorporates several new design wins for the user. Our design objectives were simple improve checkout productivity while protecting the customer's investment by adding capabilities that would extend the typical life of the scanner.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • UPC Bookland
  • UPC Coupon Code
  • UPC Add-ons
  • Japan 2 Label Code
  • RSS-14 Expanded
  • RSS-14
  • RSS-Stacked
  • EAN-8
  • EAN-13
  • JAN-8
  • JAN-13
  • EAN/JAN
  • UCC/EAN 128
  • Italian Pharmacode
  • GTIN Compliant
  • Code 39
  • Code 93
  • Code 128
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Codabar
  • MSI/PLESSEY
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0.5" - 1.75"@5mil
  • 0.25" - 2.25"@7.5mil
  • 0" - 5"@10mil
  • 0" - 6"@13mil - UPC
  • 0" - 6.75"@20mil
Scan Pattern:
Omni-directional
Stand Included:
Yes
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Desktop
Product Color:
Black
Height:
3.3"
Width:
2.8"
Depth:
3.7"
Weight (Approximate):
7 oz
Miscellaneous
Package Contents:
  • Magellan 1000i Bar Code Reader
  • 12ft USB POT Cable
  • Stand
Additional Information:

Supported Interfaces:

  • USB
  • IBM 46XX
  • Keyboard Wedge
  • Serial
  • Wand Emulation

    • Certifications & Standards:

    Electrical:

    • Gost R
    • TÜV
    • UL
    • cUL

    Emissions:

    • FCC
    • EN 55022
    • AS/NZS 3548
    • VCCI
    Warranty
    Limited Warranty:
    2 Year
    Item Numbers
    UNSPSC: 43211701

    Recommended Accessories

    Category

    • Scanner Accessories (5)

    Recommended Accessories for Model: Datalogic MG10-0041-001-411 Barcode Scanner

    Top Scanner Accessories Purchased With Datalogic MG10-0041-001-411

    See All Scanner Accessories for Datalogic MG10-0041-001-411 Barcode Scanner >
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Datalogic MG10-0041-001-411 Barcode Scanner is also known as PSC-MG100041001411 or MG100041001411.
