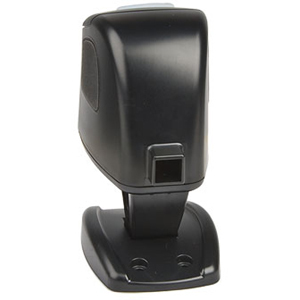

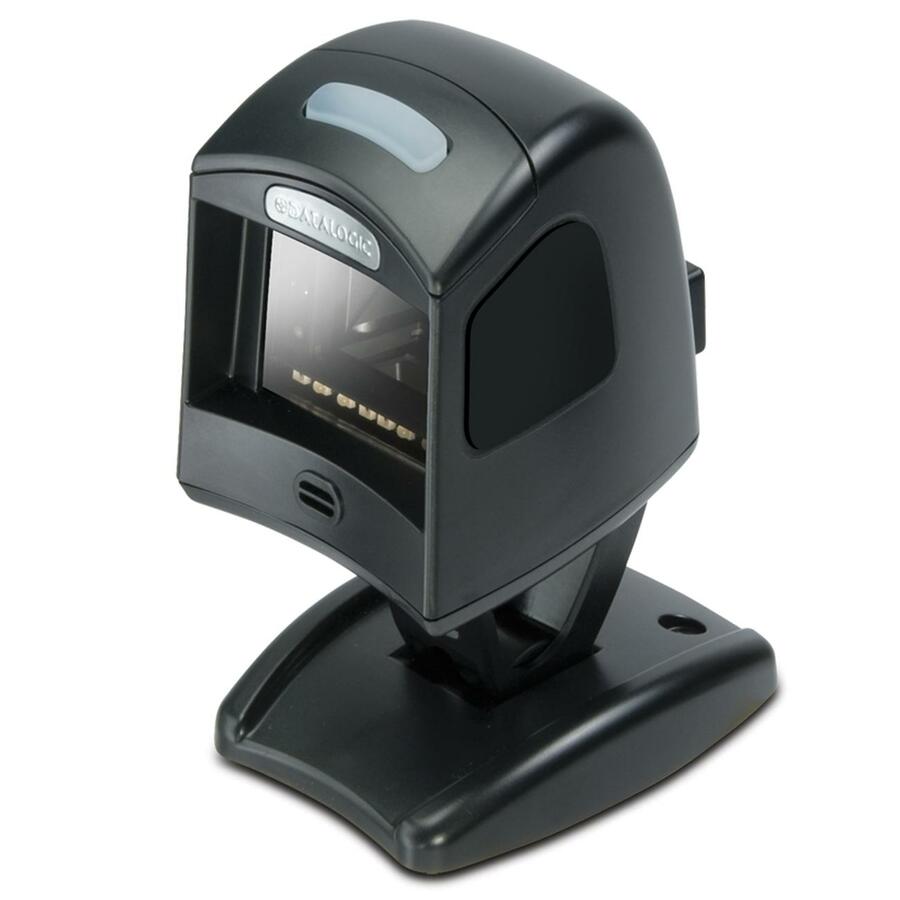

Datalogic Magellan 1000i – Barcode Scanner – 1D

Part Number: MG10-0041-000-411
Model: Magellan 1000i
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Datalogic Magellan Desktop 1000i Bar Code Reader - Wired - Imager
Explore all Datalogic Magellan 1000i Barcode Scanners
Add to Quote
Datalogic MG10-0041-000-411 Barcode Scanner
Datalogic MG10-0041-000-411 Barcode Scanner
Datalogic MG10-0041-000-411 Barcode Scanner
Datalogic MG10-0041-000-411 Barcode Scanner
Datalogic MG10-0041-000-411 Barcode Scanner
Datalogic MG10-0041-000-411 Barcode Scanner
Datalogic MG10-0041-000-411 Barcode Scanner Datalogic MG10-0041-000-411 Barcode Scanner Datalogic MG10-0041-000-411 Barcode Scanner Datalogic MG10-0041-000-411 Barcode Scanner Datalogic MG10-0041-000-411 Barcode Scanner Datalogic MG10-0041-000-411 Barcode Scanner
Full specifications (PDF)

Datalogic Magellan 1000i Barcode Scanner Model Overview

The Magellan 1000i is an Omni-Directional Imaging Scanner designed for "small-counter" retail environments. This new imaging technology improves checkout productivity by allowing users to scan barcodes in any orientation with a sweeping motion or a presentation style of scanning. The ergonomic design and small size allow for either hands-free scanning for small items or for use as a hand-held scanner for large items. To optimize scan time, the tilting stand allows individual users to adjust the scanner to a comfortable scanning position. Additionally, the omni-directional imaging technology of the Magellan 1000i eliminates misreads and quickly scans hard-to-read and damaged barcodes.
Datalogic MG10-0041-000-411 Barcode Scanner Overview

The Magellan 1000i reader features a unique approach to imaging technology by using digital scan patterns for omni directional reading. This innovative technology offers maximum reliability and high performance while excelling at capturing hard-to-read bar codes. Its compact size makes it the ideal solution when counter space is limited. Its precise imaging scan volume helps to prevent accidental misreads of items caused by stray scan lines reducing overall error correction time caused by these misreads.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
2D
Barcode Symbology Supported:

1D/Linear Codes:

  • Auto discriminates all standard 1D codes including GS1 DataBar linear codes

Retail Codes:

  • UPC Versions A&E
  • UPC Supplementals (Bookland & Coupon Code)
  • UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
  • Dual Bar Codes for Japan (2 label read)
  • Reduced Space Symbology (RSS) RSS-14, RSS expanded, and
  • RSS Stacked Omni-directional)
  • EAN 8 & 13 with full expansion 8 to 13
  • JAN 8 & 13 with full expansion 8 to 13
  • EAN/JAN two label
  • UCC/EAN 128
  • Italian Pharmacode
  • Supports GTIN

Industrial Codes:

  • Code 39 (with full ASCII)
  • Code 128 (Up to 80 characters, including Code 39 conversions)
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Codabar
  • MSI/Plessey

Stacked Codes:

  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
Light Source:
Laser
Image Sensor Type:
Imager
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0.5" - 1.8"@5mil - 1D / Linear Codes
  • 0.25" - 2.25"@7.5mil - 1D / Linear Codes
  • 0" - 5"@10mil - 1D / Linear Codes
  • 0" - 6"@13mil - UPC
  • 0" - 6.7"@20mil - UPC
  • 1.5" - 3"@6.6mil - PDF
  • 0" - 1.8"@10mil - Data Matrix
  • 1.2" - 6"@10mil - PDF
  • 1" - 6"@15mil - PDF
  • 0" - 5"@24mil - Data Matrix
Stand Included:
Yes
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Desktop
Product Color:
Black
Height:
3.7"
Width:
2.8"
Depth:
3.3"
Weight (Approximate):
7 oz
Miscellaneous
Package Contents:
  • Magellan Desktop 1000i Bar Code Reader
  • Tilting riser stand
  • Fixed mounting plate
Additional Information:

USB Cable separate

Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
