Datalogic MG10-0010-100-106R Barcode Scanner

Datalogic Magellan 1000i - RS-232 KIT,, with Cable NO BTTN, NO STND, BLACK
  • Delivers customer satisfaction with lesser chances of errors, hands-free operation, and counter space usage
  • Perfect for applications that require direct association with a workstation or a notebook
  • Scan barcodes with a staggering speed of 1170 scan/s
Read More

Full specifications (PDF)

Omnidirectional Imaging

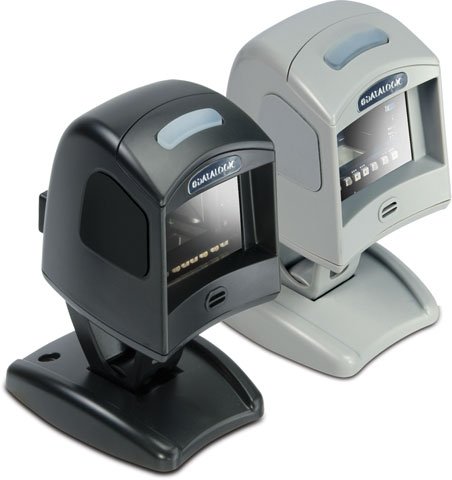

The Magellan 1000i is an Omnidirectional Imaging Scanner designed for "small-counter" retail environments. This new imaging technology improves checkout productivity by allowing users to scan barcodes in any orientation with a sweeping motion or a presentation style of scanning. The ergonomic design and small size allow for either hands-free scanning for small items or for use as a handheld scanner for large items. To optimize scan time, the tilting stand allows individual users to adjust the scanner to a comfortable scanning position. Additionally, the omnidirectional imaging technology of the Magellan 1000i eliminates misreads and quickly scans hard-to-read and damaged barcodes.
Datalogic MG10-0010-100-106R Overview

On-Counter Presentation Omnidirectional Bar Code Reader

The Magellan 1000i reader features a unique approach to imaging technology by using digital scan patterns for omnidirectional reading. This innovative technology offers maximum reliability and high performance while excelling at capturing hard-to-read bar codes. Its compact size makes it the ideal solution when counter space is limited. Its precise imaging scan volume helps to prevent accidental misreads of items caused by stray scan lines reducing overall error correction time caused by these misreads.

Protect Your Product

Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Scan Rate:
1170 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0.5" - 1.8"@5mil
  • 0.25" - 2.25"@7.5mil
  • 0" - 5.0"@10mil
  • 0" - 6.0"@13mil - UPC
  • 0" - 6.7"@20mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Color:
Black
Weight (Approximate):
7 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
EU RoHS
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43211701
