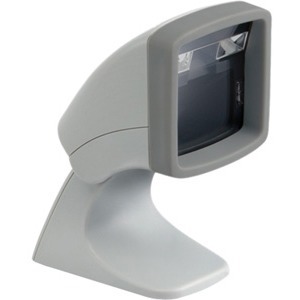

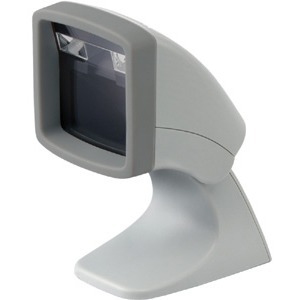

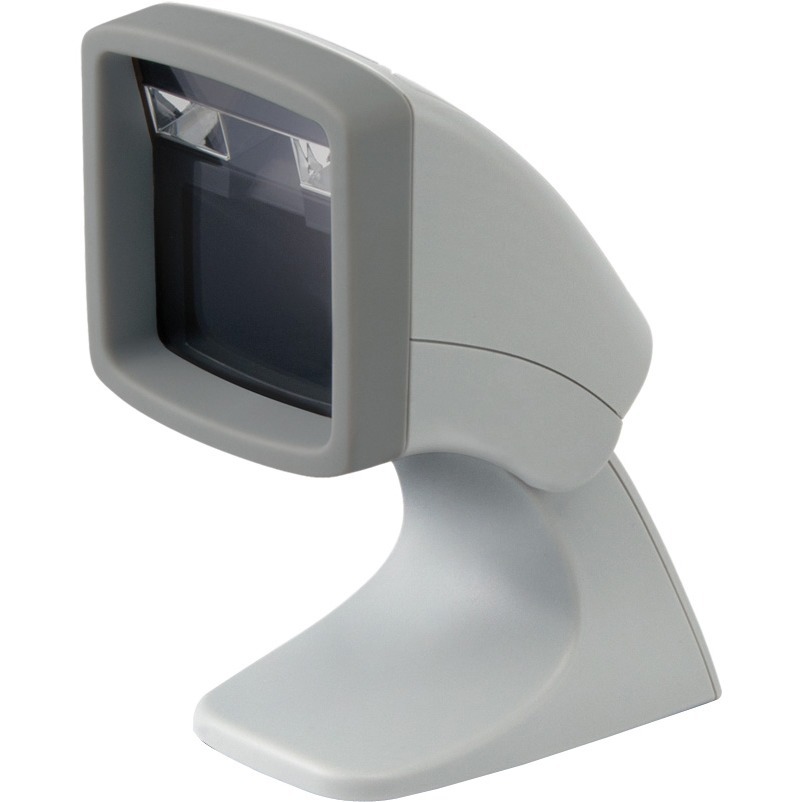

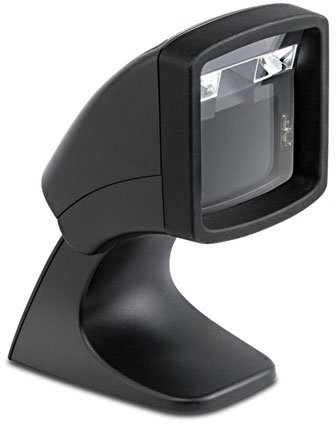

Datalogic Magellan 800i Barcode Scanner Model Overview
Using the latest digital imaging technology, the Magellan 800i presentation scanner provides intuitive and fast reading of 1D and 2D bar codes while supporting advanced features like image capture and EAS tag deactivation. When space is limited but high performance is required, the Magellan 800i imager is ideal with its compact size for space-constrained environments. This versatile imager can be used as a presentation scanner or it can be picked to be used in handheld mode for larger items. Improve your productivity at the POS with the Magellan 800i omnidirectional bar code reader.
The Magellan 800i omnidirectional presentation scanner is a versatile data collection tool for many applications. It uses Datalogic Scanning's latest digital imaging technology to provide intuitive and fast reading of 1D and 2D bar codes as well as supporting more advanced features like image capture and EAS tag deactivation. Despite its small size, the Magellan 800i reader provides big performance and reliability along with a rich feature set to provide excellent value in virtually any data collection system.
What are the key specifications of the Dell OptiPlex 7000 7020 Plus desktop?
The Dell OptiPlex 7000 7020 Plus features an Intel Core i5 14th Gen i5-14500 processor with vPro Technology, 16 GB DDR5 SDRAM, and a 256 GB SSD in a small form factor chassis. It includes Intel UHD Graphics 770, a DVD-Writer, Windows 11 Pro, and 802.11ax wireless LAN connectivity. We offer this model for organizations requiring reliable, compact desktop computing with modern performance specifications.
What barcode types can the Datalogic Magellan 800i read?
The Magellan 800i reads both 1D and 2D barcodes, including all standard linear codes, GS1 DataBar formats, QR codes, Data Matrix, Aztec Code, MaxiCode, and stacked codes like PDF417 and MicroPDF417. This versatile decoding capability makes it ideal for retail, warehouse, and logistics environments where you need to handle multiple barcode standards.
Is the Dell 9NKVD suitable for warehouse and logistics operations?
Yes, the Dell OptiPlex 7020 Plus is well-suited for warehouse and logistics environments with its compact small form factor design, Intel vPro management capabilities for remote administration, and robust connectivity options including 802.11ax wireless LAN. The 260 W power efficiency and Windows 11 Pro support make it ideal for inventory management systems and AIDC integration. Contact us today to discuss configurations optimized for your warehouse workflow requirements.
Is the Datalogic Magellan 800i suitable for space-constrained retail environments?
Yes, the Magellan 800i is specifically designed for space-limited applications with compact dimensions of 15.1 x 7.6 x 10.9 cm and a weight of just 306.2 grams. Its presentation scanner format allows it to fit easily on crowded checkout counters while delivering high-performance omni-directional reading for fast customer throughput.
What connectivity options does the Dell 9NKVD provide?
The Dell OptiPlex 7020 Plus includes IEEE 802.11ax wireless LAN for high-speed network connectivity and supports standard wired networking through RJ-45 connectors. The small form factor design accommodates multiple USB ports and expansion options, making it compatible with barcode scanners, label printers, and other AIDC peripherals commonly used in logistics operations. Visit barcodesinc.com to explore compatible hardware solutions for your specific connectivity needs.
What connectivity options does the Magellan 800i offer?
The Magellan 800i connects via USB with multiple interface modes including OEM USB, USB COM, USB HID Keyboard, and USB TEC, as well as RS-232 connectivity. This flexibility allows easy integration with most POS systems and retail environments without requiring specialized adapters.
What operating system and security features does this desktop include?
The Dell 9NKVD comes with Windows 11 Pro and Intel vPro Technology, which provides advanced security and remote management capabilities essential for enterprise environments. The combination of Windows 11 Pro security features and vPro's hardware-based security ensures your warehouse data and operations remain protected. We offer this configuration for IT procurement teams requiring enterprise-grade security standards.
Can the Magellan 800i be used in both presentation and handheld modes?
Yes, the Magellan 800i is versatile enough to function as a presentation scanner for standard checkout operations or be picked up for handheld use when scanning larger items. This dual-mode capability maximizes productivity and reduces the need for multiple scanning devices in your retail operation.
Can the Dell OptiPlex 7020 Plus be upgraded with additional memory?
Yes, the Dell OptiPlex 7020 Plus features DDR5 SDRAM architecture that supports memory expansion beyond the standard 16 GB configuration. Memory upgrade options are available through us, allowing you to customize the system for demanding warehouse management applications and multi-tasking scenarios. Contact us today for compatible memory upgrade modules and installation guidance.
What environmental durability does the Magellan 800i provide?
The Magellan 800i withstands repeated drops from 1.2 meters onto concrete, features IP52 particulate and water sealing, and operates reliably in temperatures from 0 to 40°C with humidity levels up to 95%. It also provides 20 kV ESD protection, making it durable enough for demanding retail and warehouse environments.
What makes the small form factor design beneficial for warehouse environments?
The small form factor chassis reduces physical footprint, making the Dell OptiPlex 7020 Plus ideal for space-constrained warehouse offices, shipping departments, and mobile workstations. The compact design maintains full performance capabilities while enabling flexible deployment in various warehouse locations without sacrificing thermal efficiency or connectivity. We offer this form factor for logistics operations requiring versatile, space-efficient computing solutions.
Does the Magellan 800i support EAS tag deactivation and image capture?
Yes, the Magellan 800i includes integrated EAS hardware compatible with Checkpoint Systems (Counterpoint IV-VII models) and Sensormatic systems for tag deactivation, plus optional image capture capabilities at 752 x 4 resolution. These advanced features help reduce shrinkage and enable flexible merchandise documentation. Contact us today to learn more about configuring these options for your operation.
The Datalogic MG08-014121-0040 Barcode Scanner is also known as
DTL-MG080141210040
or MG080141210040.
Full specifications (PDF)
