Datalogic MG08-011012-0110 Barcode Scanner

Datalogic MG1502-10220-1100 Barcode Scanner A newer version of this item is available.
It is replaced by the Datalogic MG1502-10220-1100 Barcode Scanner.
Datalogic Magellan 800i - Datalogic Magellan 800i Desktop Bar Code Reader - Cable Connectivity - 1D - Imager - Omni-directional - Serial - White
  • Allows productive and precise reading of 1D barcodes
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

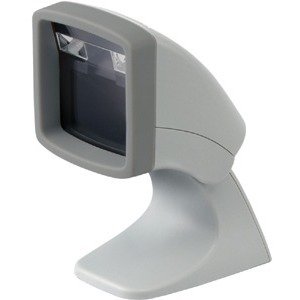

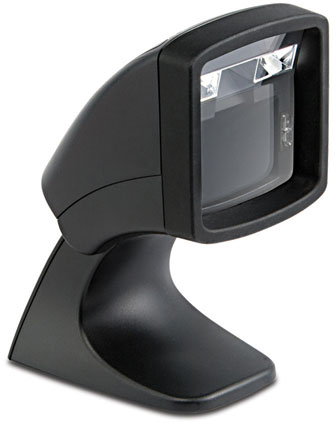

Datalogic Magellan 800i Barcode Scanner Model Overview
Using the latest digital imaging technology, the Magellan 800i presentation scanner provides intuitive and fast reading of 1D and 2D bar codes while supporting advanced features like image capture and EAS tag deactivation. When space is limited but high performance is required, the Magellan 800i imager is ideal with its compact size for space-constrained environments. This versatile imager can be used as a presentation scanner or it can be picked to be used in handheld mode for larger items. Improve your productivity at the POS with the Magellan 800i omnidirectional bar code reader.
Datalogic MG08-011012-0110 Barcode Scanner Overview

The Magellan 800i omnidirectional presentation scanner is a versatile data collection tool for many applications. It uses Datalogic Scanning's latest digital imaging technology to provide intuitive and fast reading of 1D and 2D bar codes as well as supporting more advanced features like image capture and EAS tag deactivation. Despite its small size, the Magellan 800i reader provides big performance and reliability along with a rich feature set to provide excellent value in virtually any data collection system.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:

1D / Linear Codes:

  • Auto discriminates all Standard 1D Codes Including GS1 DataBar Linear Codes.

Stacked Codes:

  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MicroPDF417
  • PDF417
Image Sensor Type:
Imager
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 1.0"@5mil
  • 0" - 3.2"@7.5mil
  • 0" - 5.0"@10mil
  • 0" - 6.0"@13mil
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
Serial
Power Description
Power Supply Included:
Yes
Physical Characteristics
Form Factor:
Desktop
Product Color:
White
Height:
5.9"
Width:
3"
Depth:
4.3"
Weight (Approximate):
10.80 oz
Miscellaneous
Package Contents:
  • Magellan 800i Desktop Bar Code Reader
  • Power Supply
  • Cable
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0087944642558, 5711783253396
UPC: 087944642558
EAN: 0087944642558, 5711783253396
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic MG08-011012-0110 Barcode Scanner is also known as DTL-MG080110120110 or MG080110120110.
