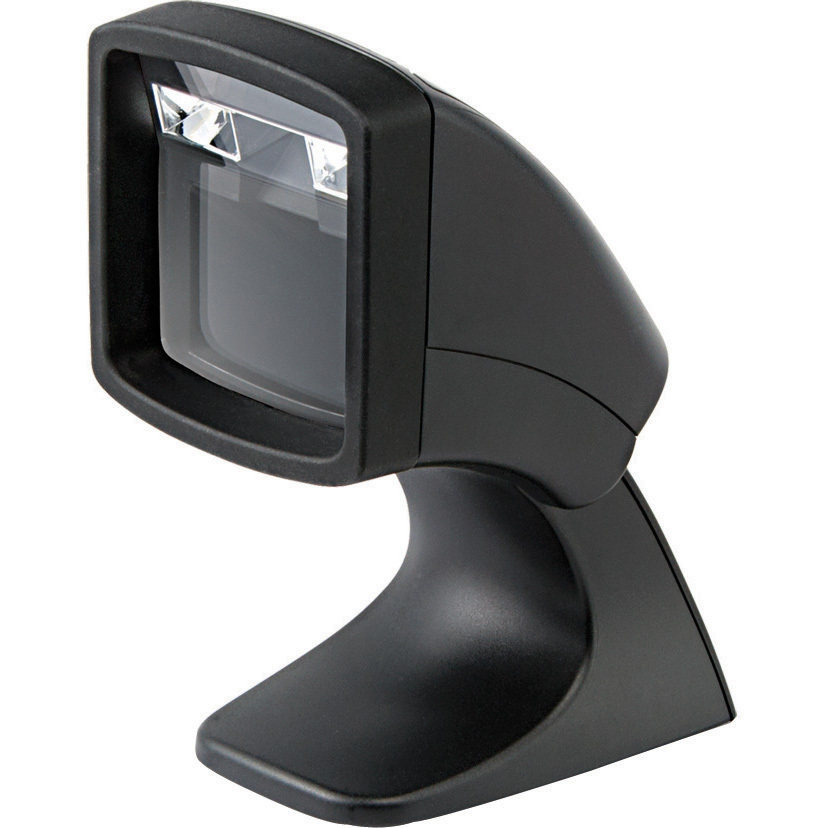

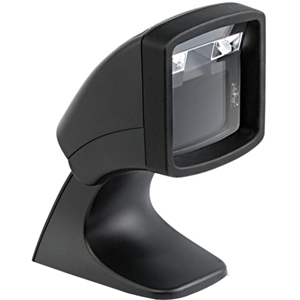

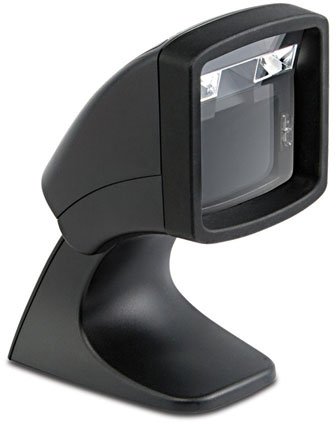

Datalogic Magellan 800i – Barcode Scanner

Part Number: MG08-004110
Model: Magellan 800i

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Form Factor
Presentation
Scanner Type
CCD, Imager

Product Description:

  Datalogic Magellan 800i Desktop Bar Code Reader - Cable Connectivity - 1D - Imager - Omni-directional - USB - Black

Datalogic Magellan 800i Barcode Scanner Model Overview

Using the latest digital imaging technology, the Magellan 800i presentation scanner provides intuitive and fast reading of 1D and 2D bar codes while supporting advanced features like image capture and EAS tag deactivation. When space is limited but high performance is required, the Magellan 800i imager is ideal with its compact size for space-constrained environments. This versatile imager can be used as a presentation scanner or it can be picked to be used in handheld mode for larger items. Improve your productivity at the POS with the Magellan 800i omnidirectional bar code reader.
Datalogic MG08-004110 Barcode Scanner Overview

The Magellan 800i omnidirectional presentation scanner is a versatile data collection tool for many applications. It uses Datalogic Scanning's latest digital imaging technology to provide intuitive and fast reading of 1D and 2D bar codes as well as supporting more advanced features like image capture and EAS tag deactivation. Despite its small size, the Magellan 800i reader provides big performance and reliability along with a rich feature set to provide excellent value in virtually any data collection system.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:

1D / Linear Codes:

  • Auto discriminates all Standard 1D Codes Including GS1 DataBar Linear Codes.

Stacked Codes:

  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MicroPDF417
  • PDF417
Image Sensor Type:
Imager
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 1.0"@5mil
  • 0" - 3.2"@7.5mil
  • 0" - 5.0"@10mil
  • 0" - 6.0"@13mil - UPC
Scan Pattern:
Omni-directional
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Desktop
Product Color:
Black
Height:
5.9"
Width:
3"
Depth:
4.3"
Weight (Approximate):
10.80 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 5711045216176
EAN: 5711045216176
UNSPSC: 43211701
