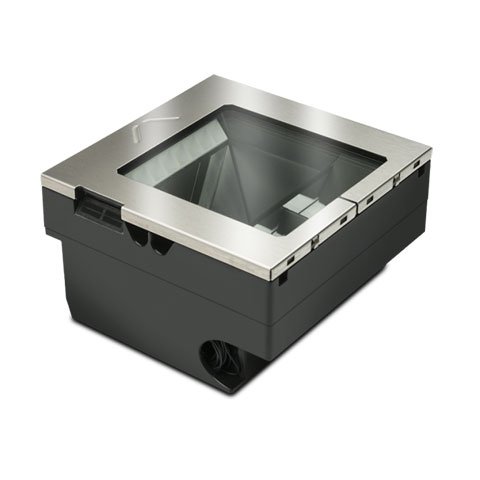

Datalogic Magellan 35XXHSi Barcode Scanner Model Overview
The MAGELLAN™ 3550HSi from Datalogic is a high-performance, in-counter barcode reader designed for the high-volume retail environment. Leveraging advanced digital imaging technology, this scanner delivers exceptional speed and accuracy when decoding a wide variety of barcodes, including hard-to-read ones often found on mobile devices or poorly printed products. Through its ergonomic design and support for both sweep and presentation scanning techniques, the 3550HSi maximizes productivity while enhancing the overall customer experience at the point of sale.
Key Features
Advanced digital imaging for seamless 1D, 2D, and Digimarc® barcode reading.
Quiet operation with solid-state electronics for reliable performance.
Magellan Customer Service Scanner (CSS) for quick scanning of mobile coupons and loyalty cards.
Multiple interface options and software-driven flexibility for easy upgrades.
Wide range of service options with EASEOFCARE service plans to protect your investment.
Specifications
Decoding Capability:
1D/Linear Codes
2D Codes
Stacked Codes
Digital Watermarks
Electrical:
AC Input: 100-240 VAC, 50-60 Hz
Power Consumption (Max): 4 Watts
Power Consumption (Nominal): 3 Watts
Environmental:
Operating Temperature: 10 to 40 °C
Humidity: 5-95% Non-Condensing
Sealing: IP52
Physical Characteristics:
Dimensions: 15.2 cm (L) x 15.2 cm (W) x 8.7 cm (D)
Weight: 0.98 kg / 2.16 lb
Warranty: 3-Year Factory Warranty

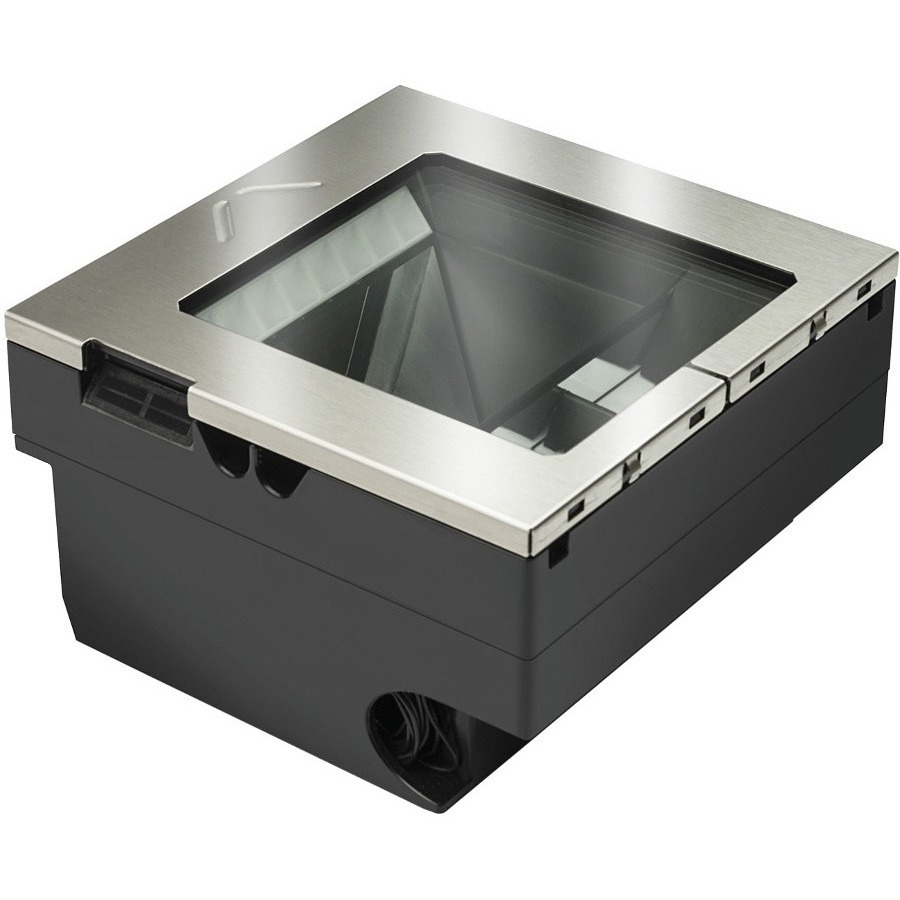

Datalogic M3553-010300 Barcode Scanner Overview
IN-COUNTER HIGH PERFORMANCE BAR CODE READER The Magellan™ 3500HSi series of scanners continue the Datalogic tradition of high performance imaging for the high-volume point-of-sale. By duplicating the speed and large field-of-view of laser scanners and expanding the capabilities of imaging, the 3500HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
ENHANCING THE CUSTOMER EXPERIENCE The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time. ENTERPRISE FEATURES Remote management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
What barcode types does the Datalogic M3553-010300 scanner read?
The Datalogic Magellan 3500HSi reads a comprehensive range of 1D linear codes (including GS1 DataBar), 2D codes (Aztec, Data Matrix, QR Code, MaxiCode), and stacked codes (PDF417, MicroPDF417, GS1 DataBar variants). This versatile imaging capability allows it to handle standard retail barcodes, QR codes, and specialty formats commonly used in high-volume point-of-sale environments. We offer this scanner for retail operations requiring multi-format decoding capability.
Is the Datalogic M3553-010300 suitable for reading damaged or poorly printed barcodes?
Yes, the Magellan 3500HSi is specifically designed to excel with hard-to-read barcodes, including truncated (shortened), out-of-spec, and poorly printed codes. The high-performance imaging technology duplicates the speed and field-of-view advantages of laser scanners while expanding imaging capabilities for superior performance on compromised codes. This makes it ideal for warehouse and retail environments where barcode quality varies. Contact us today to learn how this scanner can improve your operation's efficiency.
What are the connectivity options for the M3553-010300 scanner?
The M3553-010300 offers multi-interface connectivity including IBM 46xx, Keyboard Wedge, OEM (IBM) USB, RS-232, and USB connections, allowing flexible integration with various POS and retail systems. This range of interface options ensures compatibility with legacy and modern point-of-sale equipment. We can help you select the appropriate cable and connection type for your specific system requirements.
What scanning techniques does this Datalogic scanner support?
The Magellan 3500HSi supports both high-speed sweep scanning and presentation scanning techniques, enabling maximum productivity and ergonomic ease for operators. The dual-mode capability allows users to choose the scanning method that best fits their workflow, whether quickly swiping codes or presenting items to a fixed scanner position. This flexibility makes it suitable for various retail and warehouse applications available from us.
What are the environmental operating specifications for the M3553-010300?
The scanner operates reliably in temperatures from 0 to 40°C (32 to 104°F), with humidity tolerance of 5-95% non-condensing, and ambient light conditions up to 86,100 lux. It features 25 kV ESD protection for durability in retail environments. These robust environmental specifications ensure consistent performance in typical point-of-sale and warehouse conditions.
Does the Datalogic M3553-010300 include mounting hardware and cables?
The M3553-010300 is sold as a scanner-only unit, meaning mount and required cable and/or power accessories are sold separately. This allows you to customize your setup with the specific mounting solution and cable type that matches your counter configuration and system requirements. Visit barcodesinc.com or contact us today to find compatible mounting and cable options for your installation.
The Datalogic M3553-010300 Barcode Scanner is also known as
DTL-M3553010300
or M3553010300.
