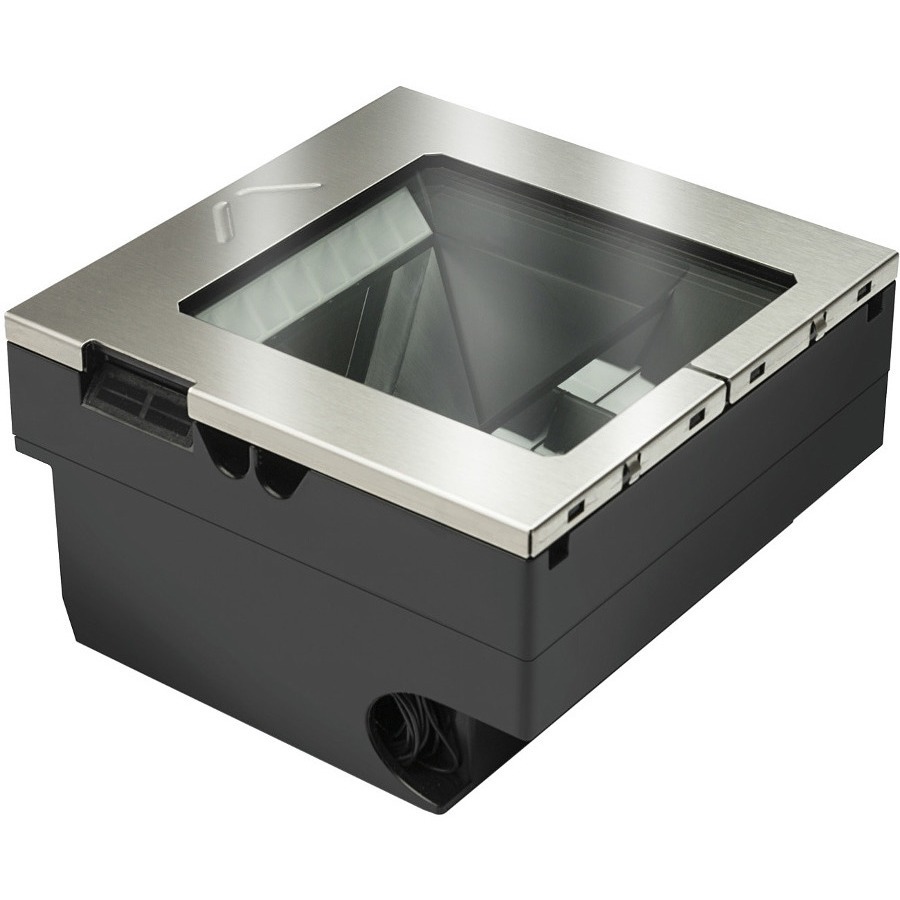

Datalogic Magellan 35XXHSi Barcode Scanner Model Overview

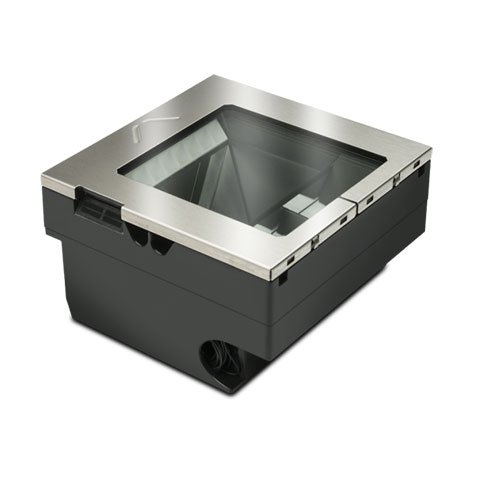

The MAGELLAN™ 3550HSi from Datalogic is a high-performance, in-counter barcode reader designed for the high-volume retail environment. Leveraging advanced digital imaging technology, this scanner delivers exceptional speed and accuracy when decoding a wide variety of barcodes, including hard-to-read ones often found on mobile devices or poorly printed products. Through its ergonomic design and support for both sweep and presentation scanning techniques, the 3550HSi maximizes productivity while enhancing the overall customer experience at the point of sale.
Key Features
Advanced digital imaging for seamless 1D, 2D, and Digimarc® barcode reading.
Quiet operation with solid-state electronics for reliable performance.
Magellan Customer Service Scanner (CSS) for quick scanning of mobile coupons and loyalty cards.
Multiple interface options and software-driven flexibility for easy upgrades.
Wide range of service options with EASEOFCARE service plans to protect your investment.
Specifications
Decoding Capability:
1D/Linear Codes
2D Codes
Stacked Codes
Digital Watermarks
Electrical:
AC Input: 100-240 VAC, 50-60 Hz
Power Consumption (Max): 4 Watts
Power Consumption (Nominal): 3 Watts
Environmental:
Operating Temperature: 10 to 40 °C
Humidity: 5-95% Non-Condensing
Sealing: IP52
Physical Characteristics:
Dimensions: 15.2 cm (L) x 15.2 cm (W) x 8.7 cm (D)
IN-COUNTER HIGH PERFORMANCE BAR CODE READER The Magellan™ 3500HSi series of scanners continue the Datalogic tradition of high performance imaging for the high-volume point-of-sale. By duplicating the speed and large field-of-view of laser scanners and expanding the capabilities of imaging, the 3500HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
ENHANCING THE CUSTOMER EXPERIENCE The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time. ENTERPRISE FEATURES Remote management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
What barcode formats does the Datalogic M3553 scanner read?
The Datalogic Magellan 3500HSi reads all standard 1D linear codes including GS1 DataBar codes, plus 2D formats like QR Code, Data Matrix, Aztec Code, and MaxiCode. It also decodes stacked codes including GS1 DataBar Composites, PDF417, and MicroPDF417, making it versatile for retail and warehouse applications with varying barcode quality.
Is the Datalogic M3553 compatible with existing POS systems?
Yes, the M3553 offers multiple interface options including OEM USB, RS-232, keyboard wedge, and IBM 46xx connections, allowing seamless integration with most legacy and modern POS systems. We include a USB POT cable with this scanner, and additional cables or power accessories are available separately to match your specific setup requirements.
Can this scanner read damaged or poorly printed barcodes?
Absolutely. The Magellan 3500HSi is specifically designed to handle hard-to-read barcodes, including truncated (shortened), out-of-spec, and poorly printed codes. Its advanced imaging technology duplicates the speed and large field-of-view of laser scanners while expanding capabilities beyond traditional imagers, ensuring reliable reads even in challenging conditions.
What are the environmental operating conditions for the M3553?
The scanner operates reliably in temperatures from 0 to 40°C (32 to 104°F) with humidity levels between 5-95% non-condensing. It provides 25 kV ESD protection and handles ambient light conditions up to 86,100 lux, making it suitable for high-volume retail environments with varying lighting and temperature conditions.
Does the M3553 support both sweep and presentation scanning?
Yes, the Magellan 3500HSi enables both high-speed sweep scanning and presentation scanning techniques, giving your team maximum flexibility in how they work. This dual-mode capability ensures maximum productivity and ergonomic ease, whether operators are actively scanning items or presenting codes to the scanner.
What power consumption specifications should I plan for?
The M3553 operates at a maximum of 9.9 watts during peak use and only 2.8 watts during normal operation, with sleep mode consuming just 1.8 watts. This efficient power profile helps reduce operational costs in high-volume retail environments. Contact us today to discuss power requirements and cable specifications for your installation.
The Datalogic M3553-010200-00403 Barcode Scanner is also known as
DTL-M355301020000403
or M355301020000403.
