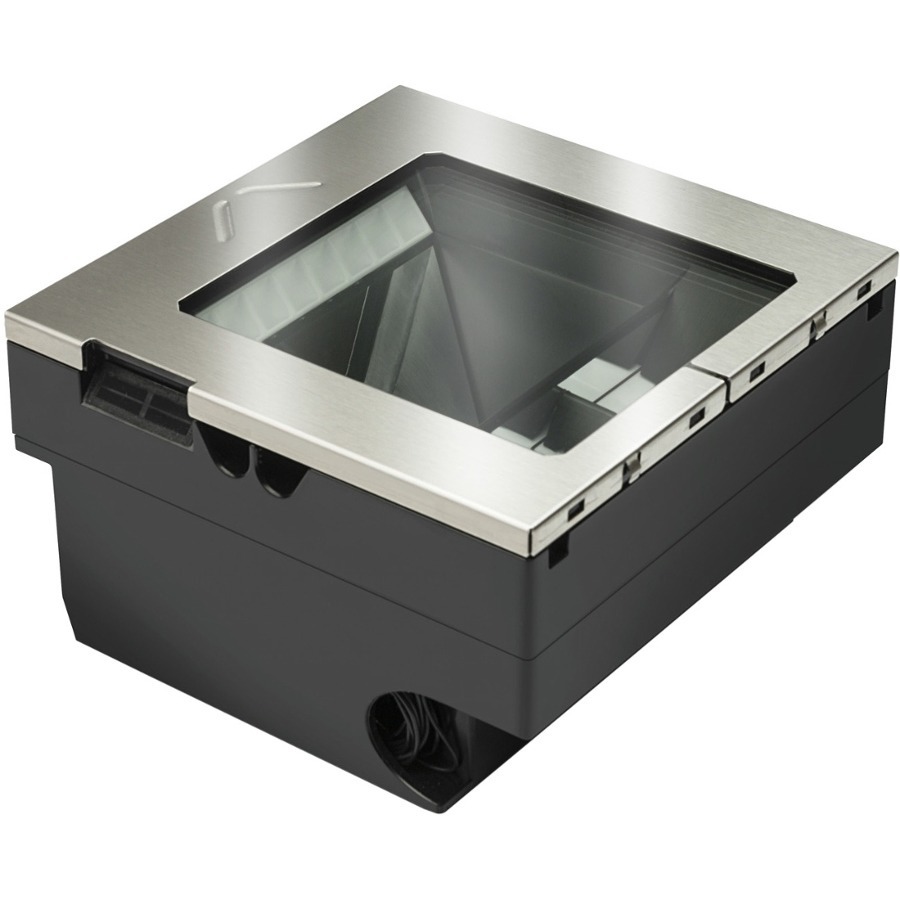

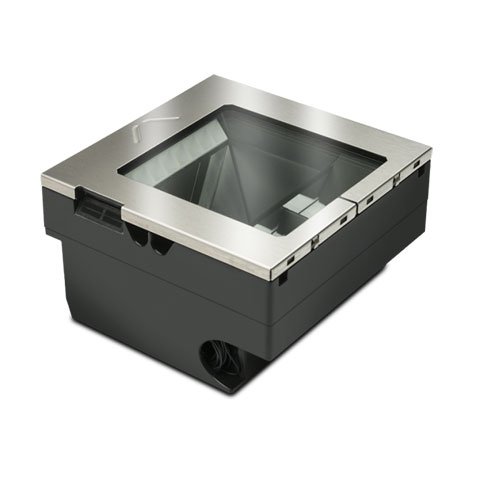

Datalogic Magellan 35XXHSi Barcode Scanner Model Overview
The MAGELLAN™ 3550HSi from Datalogic is a high-performance, in-counter barcode reader designed for the high-volume retail environment. Leveraging advanced digital imaging technology, this scanner delivers exceptional speed and accuracy when decoding a wide variety of barcodes, including hard-to-read ones often found on mobile devices or poorly printed products. Through its ergonomic design and support for both sweep and presentation scanning techniques, the 3550HSi maximizes productivity while enhancing the overall customer experience at the point of sale.
Key Features
Advanced digital imaging for seamless 1D, 2D, and Digimarc® barcode reading.
Quiet operation with solid-state electronics for reliable performance.
Magellan Customer Service Scanner (CSS) for quick scanning of mobile coupons and loyalty cards.
Multiple interface options and software-driven flexibility for easy upgrades.
Wide range of service options with EASEOFCARE service plans to protect your investment.
Specifications
Decoding Capability:
1D/Linear Codes
2D Codes
Stacked Codes
Digital Watermarks
Electrical:
AC Input: 100-240 VAC, 50-60 Hz
Power Consumption (Max): 4 Watts
Power Consumption (Nominal): 3 Watts
Environmental:
Operating Temperature: 10 to 40 °C
Humidity: 5-95% Non-Condensing
Sealing: IP52
Physical Characteristics:
Dimensions: 15.2 cm (L) x 15.2 cm (W) x 8.7 cm (D)
IN-COUNTER HIGH PERFORMANCE BAR CODE READER The Magellan™ 3500HSi series of scanners continue the Datalogic tradition of high performance imaging for the high-volume point-of-sale. By duplicating the speed and large field-of-view of laser scanners and expanding the capabilities of imaging, the 3500HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
ENHANCING THE CUSTOMER EXPERIENCE The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time. ENTERPRISE FEATURES Remote management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
What barcode formats does the Datalogic M3551 scanner read?
The Datalogic M3551 Magellan 3500HSi reads all standard 1D linear codes including GS1 DataBar, plus 2D codes such as QR Code, Data Matrix, Aztec Code, and MaxiCode. It also decodes stacked codes including GS1 DataBar Composites, PDF417, and MicroPDF417, making it ideal for high-volume retail environments that require versatile barcode compatibility.
Is the Datalogic M3551 suitable for reading damaged or poorly printed barcodes?
Yes, the M3551 excels at reading hard-to-read barcodes, truncated codes, and out-of-spec or poorly printed codes thanks to its advanced imaging technology that duplicates the speed and large field-of-view of traditional laser scanners. This makes it an excellent choice for warehouse and retail environments where barcode quality may vary.
What connectivity options does the M3551 offer?
The M3551 provides multiple interface options including USB, Keyboard Wedge, RS-232, and IBM 46xx compatibility, with a standard USB Type A 4.5m/15ft cable included. This flexibility allows seamless integration with various POS systems and retail environments available from us.
What are the physical dimensions and weight of the Datalogic M3551?
The M3551 measures 15.2 x 15.2 x 8.7 cm (6.0 x 6.0 x 3.4 inches) with a compact weight of 0.79 kg (1.75 lbs), making it ideal for in-counter mounting in retail and grocery environments without consuming excessive counter space.
What environmental conditions can the M3551 withstand?
The M3551 operates reliably in temperatures from 0 to 40°C (32 to 104°F) and tolerates humidity levels from 5 to 95% non-condensing, with ESD protection rated at 25 kV air discharge. It also handles ambient light conditions up to 86,100 lux, making it suitable for various retail and warehouse lighting conditions.
Does the M3551 support both sweep and presentation scanning techniques?
Yes, the M3551 enables both high-speed sweep scanning and presentation scanning techniques, ensuring maximum productivity and ergonomic ease for checkout operators. This dual-mode capability allows flexibility in how items are scanned while maintaining consistent read performance across different scanning methods.
The Datalogic M3551-010310-01604 Barcode Scanner is also known as
DTL-M355101031001604
or M355101031001604.
Full specifications (PDF)
