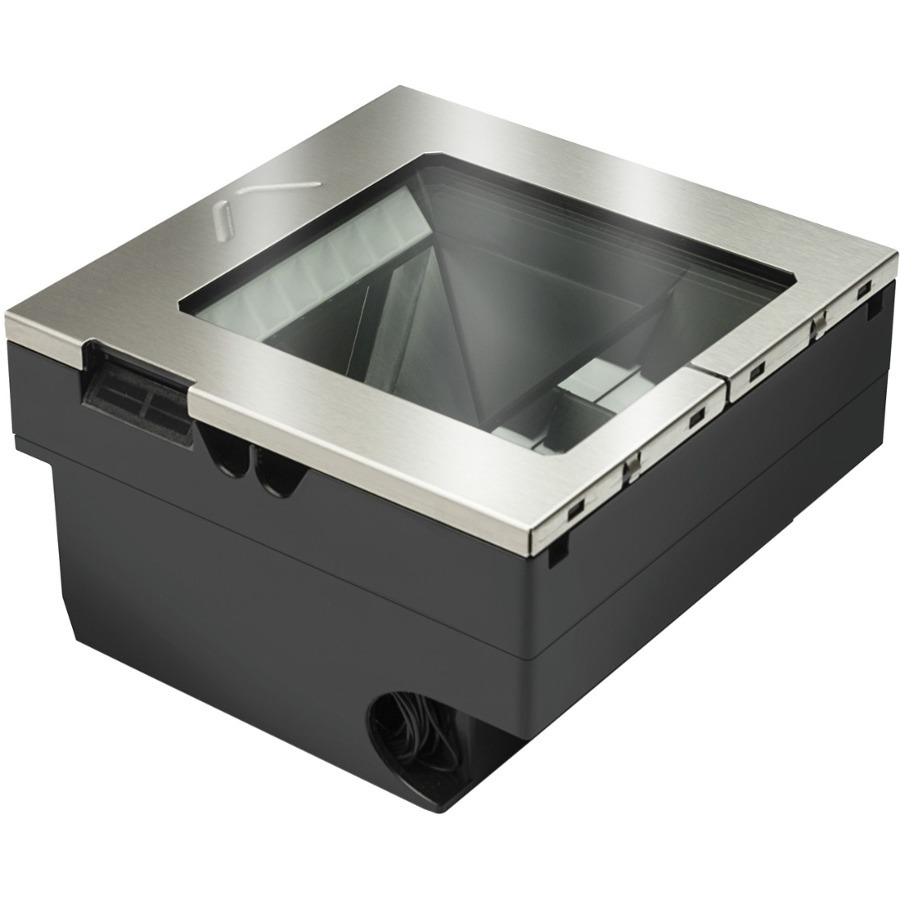

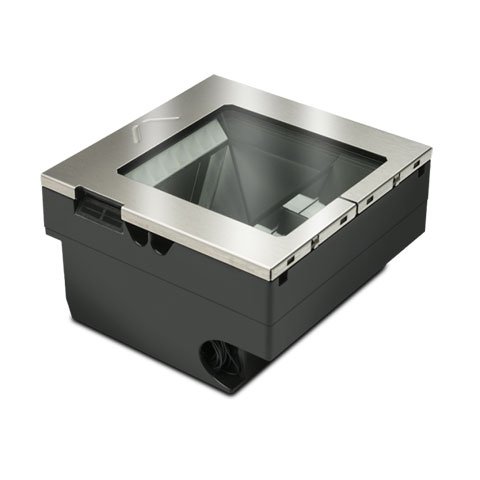

Datalogic Magellan 35XXHSi Barcode Scanner Model Overview
The MAGELLAN™ 3550HSi from Datalogic is a high-performance, in-counter barcode reader designed for the high-volume retail environment. Leveraging advanced digital imaging technology, this scanner delivers exceptional speed and accuracy when decoding a wide variety of barcodes, including hard-to-read ones often found on mobile devices or poorly printed products. Through its ergonomic design and support for both sweep and presentation scanning techniques, the 3550HSi maximizes productivity while enhancing the overall customer experience at the point of sale.
Key Features
Advanced digital imaging for seamless 1D, 2D, and Digimarc® barcode reading.
Quiet operation with solid-state electronics for reliable performance.
Magellan Customer Service Scanner (CSS) for quick scanning of mobile coupons and loyalty cards.
Multiple interface options and software-driven flexibility for easy upgrades.
Wide range of service options with EASEOFCARE service plans to protect your investment.
Specifications
Decoding Capability:
1D/Linear Codes
2D Codes
Stacked Codes
Digital Watermarks
Electrical:
AC Input: 100-240 VAC, 50-60 Hz
Power Consumption (Max): 4 Watts
Power Consumption (Nominal): 3 Watts
Environmental:
Operating Temperature: 10 to 40 °C
Humidity: 5-95% Non-Condensing
Sealing: IP52
Physical Characteristics:
Dimensions: 15.2 cm (L) x 15.2 cm (W) x 8.7 cm (D)
IN-COUNTER HIGH PERFORMANCE BAR CODE READER The Magellan™ 3500HSi series of scanners continue the Datalogic tradition of high performance imaging for the high-volume point-of-sale. By duplicating the speed and large field-of-view of laser scanners and expanding the capabilities of imaging, the 3500HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
ENHANCING THE CUSTOMER EXPERIENCE The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time. ENTERPRISE FEATURES Remote management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
What barcode formats does the Datalogic M3551 scanner read?
The Datalogic M3551 reads a comprehensive range of barcode formats including all standard 1D linear codes (such as EAN, UPC, and GS1 DataBar), 2D codes (Aztec Code, Data Matrix, QR Code, and Micro QR), and stacked codes (PDF417, MicroPDF417, and GS1 DataBar Composites). This versatility makes it ideal for retail and grocery environments where you encounter varied barcode types. We offer this scanner as a reliable solution for high-volume point-of-sale operations that demand broad decoding capability.
Is the Datalogic M3551 suitable for reading damaged or poorly printed barcodes?
Yes, the Datalogic M3551 is specifically designed to handle hard-to-read, truncated, out-of-spec, and poorly printed barcodes thanks to its advanced 2D imaging technology. The scanner's large field-of-view and high-performance imaging capabilities replicate the speed of traditional laser scanners while providing superior performance on damaged codes. This makes it an excellent choice for warehouse and retail environments where barcode quality varies. Contact us today to learn how this scanner can improve your scanning accuracy.
What connectivity options does the Datalogic M3551 offer?
The Datalogic M3551 provides flexible connectivity through USB and Keyboard Wedge interfaces, with a USB Type A cable (4.5m/15ft) included in the package. The multi-interface capability allows seamless integration with various POS systems and retail environments. We offer this scanner with straightforward plug-and-play installation to minimize setup time in your operation.
Can the Datalogic M3551 handle both sweep and presentation scanning techniques?
Yes, the Datalogic M3551 supports both high-speed sweep scanning and presentation scanning techniques, giving your staff maximum flexibility in how they scan items. This dual-mode capability ensures ergonomic ease and maximum productivity, whether operators are scanning items across the scanner or presenting barcodes to it. Available from us with a standard counter mount for reliable in-counter installation.
What are the environmental operating conditions for the Datalogic M3551?
The Datalogic M3551 operates reliably in temperatures from 10 to 40°C (50 to 104°F) with humidity levels from 5 to 95% non-condensing, and can handle ambient light conditions from 0 to 86,080 lux. The scanner features 25kV ESD protection for durability in demanding retail environments. These specifications ensure consistent performance in typical grocery and retail store conditions. Visit barcodesinc.com for detailed environmental specifications and compatibility information.
What's included with the Datalogic M3551 purchase?
The Datalogic M3551 comes complete with a standard counter mount, power brick with US cord, and a 4.5-meter USB Type A cable for immediate deployment. The package provides everything needed for installation in in-counter applications without requiring additional accessories. We offer this all-inclusive bundle to ensure you can deploy the scanner quickly in your retail or warehouse environment.
The Datalogic M3551-010210-01604 Barcode Scanner is also known as
DTL-M3551010210016
or M355101021001604.
Full specifications (PDF)
