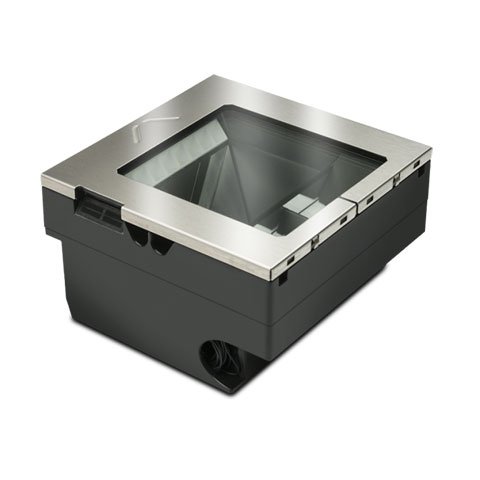

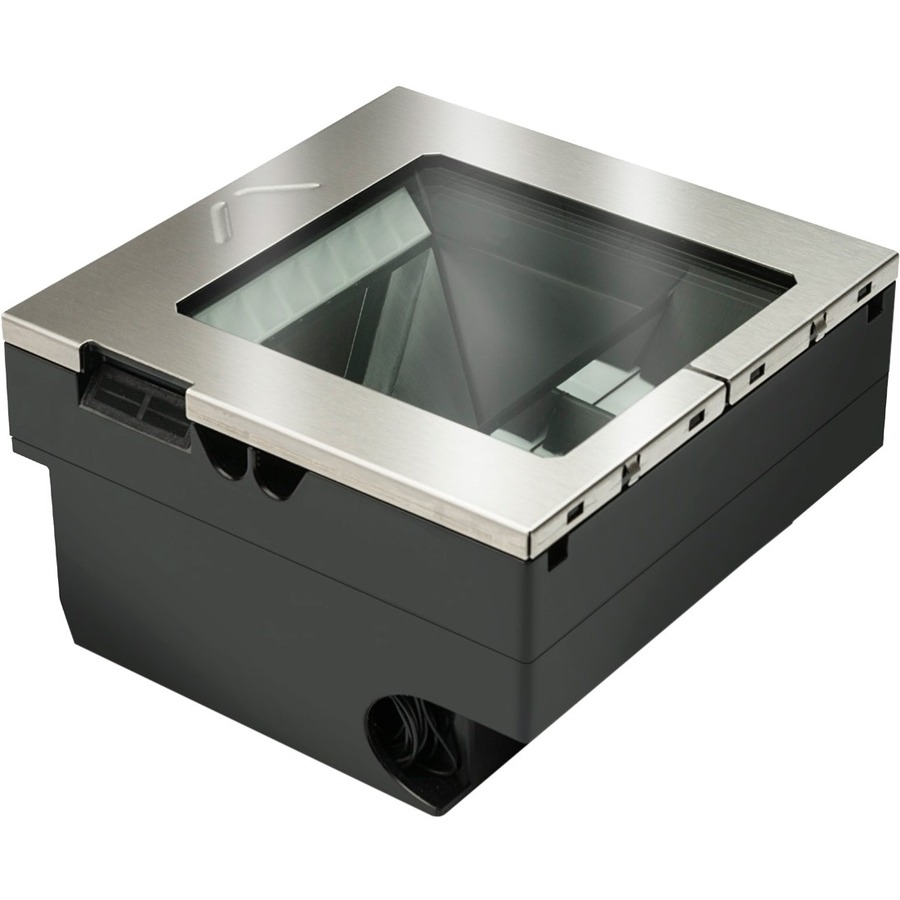

Datalogic Magellan 35XXHSi Barcode Scanner Model Overview
The MAGELLAN™ 3550HSi from Datalogic is a high-performance, in-counter barcode reader designed for the high-volume retail environment. Leveraging advanced digital imaging technology, this scanner delivers exceptional speed and accuracy when decoding a wide variety of barcodes, including hard-to-read ones often found on mobile devices or poorly printed products. Through its ergonomic design and support for both sweep and presentation scanning techniques, the 3550HSi maximizes productivity while enhancing the overall customer experience at the point of sale.
Key Features
Advanced digital imaging for seamless 1D, 2D, and Digimarc® barcode reading.
Quiet operation with solid-state electronics for reliable performance.
Magellan Customer Service Scanner (CSS) for quick scanning of mobile coupons and loyalty cards.
Multiple interface options and software-driven flexibility for easy upgrades.
Wide range of service options with EASEOFCARE service plans to protect your investment.
Specifications
Decoding Capability:
1D/Linear Codes
2D Codes
Stacked Codes
Digital Watermarks
Electrical:
AC Input: 100-240 VAC, 50-60 Hz
Power Consumption (Max): 4 Watts
Power Consumption (Nominal): 3 Watts
Environmental:
Operating Temperature: 10 to 40 °C
Humidity: 5-95% Non-Condensing
Sealing: IP52
Physical Characteristics:
Dimensions: 15.2 cm (L) x 15.2 cm (W) x 8.7 cm (D)
The Magellan™ 3500HSi series of scanners continue the Datalogic tradition of high performance imaging for the high-volume point-of-sale. By duplicating the speed and large field-of-view of laser scanners and expanding the capabilities of imaging, the 3500HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
ENHANCING THE CUSTOMER EXPERIENCE
The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
ENTERPRISE FEATURES
Remote management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
What barcode types can the Datalogic M3551 scanner read?
The Datalogic Magellan 3500HSi M3551 reads all standard 1D linear codes including GS1 DataBar codes, plus 2D codes such as Aztec, Data Matrix, QR Code, and MaxiCode. It also decodes stacked codes including GS1 DataBar Composites, MicroPDF417, and PDF417, making it versatile for retail and warehouse applications. This comprehensive decoding capability ensures compatibility with virtually all modern barcode formats you'll encounter in point-of-sale environments.
Is the Datalogic M3551 suitable for reading damaged or poorly printed barcodes?
Yes, the Datalogic M3551 is specifically designed to handle hard-to-read barcodes, including truncated (shortened), out-of-spec, and poorly printed codes. The 2D imaging technology with a 1280 x 1024 sensor and sapphire glass window provides superior performance compared to laser scanners, ensuring reliable reads even in challenging conditions. This makes it ideal for high-volume retail environments where barcode quality can vary.
What connectivity options does the M3551 barcode scanner offer?
The M3551 connects via USB Type A with a 4.5m/15ft cable included in the package, and also supports multiple interface options including RS-232, IBM 46xx, keyboard wedge, and OEM USB configurations. This multi-interface flexibility allows seamless integration with various point-of-sale systems and retail environments. The scanner includes a power brick and cord (EU) for reliable operation.
What are the environmental operating conditions for the Datalogic M3551?
The M3551 operates reliably in temperatures from 0 to 40°C (32 to 104°F) with humidity levels between 5-95% non-condensing, and can be stored or transported at temperatures ranging from -40 to 70°C (-40 to 158°F). It features 25 kV ESD protection and handles ambient light conditions up to 86,100 lux, making it suitable for typical retail environments. The scanner's robust environmental specifications ensure consistent performance in various point-of-sale locations.
Can the M3551 support both sweep and presentation scanning techniques?
Yes, the Datalogic M3551 enables both high-speed sweep scanning and presentation scanning techniques, providing maximum productivity and ergonomic flexibility for operators. This dual-mode capability allows cashiers to scan items quickly across the scanner window or present items for stationary reading, adapting to different checkout workflows. The versatile scanning approach helps reduce operator fatigue while maintaining high throughput.
What is the physical size and weight of the M3551 in-counter scanner?
The M3551 has compact dimensions of 15.2 x 15.2 x 8.7 cm (6.0 x 6.0 x 3.4 inches) with a depth below counter of 8.7 cm, and weighs only 0.79 kg (1.75 lbs). Its small footprint makes it ideal for space-constrained point-of-sale counters while remaining durable and stable. Contact us today to discuss installation requirements for your retail environment.
The Datalogic M3551-010200-07904 Barcode Scanner is also known as
M355101020007904
Full specifications (PDF)
