Datalogic Magellan 35XXHSi Barcode Scanner Model Overview

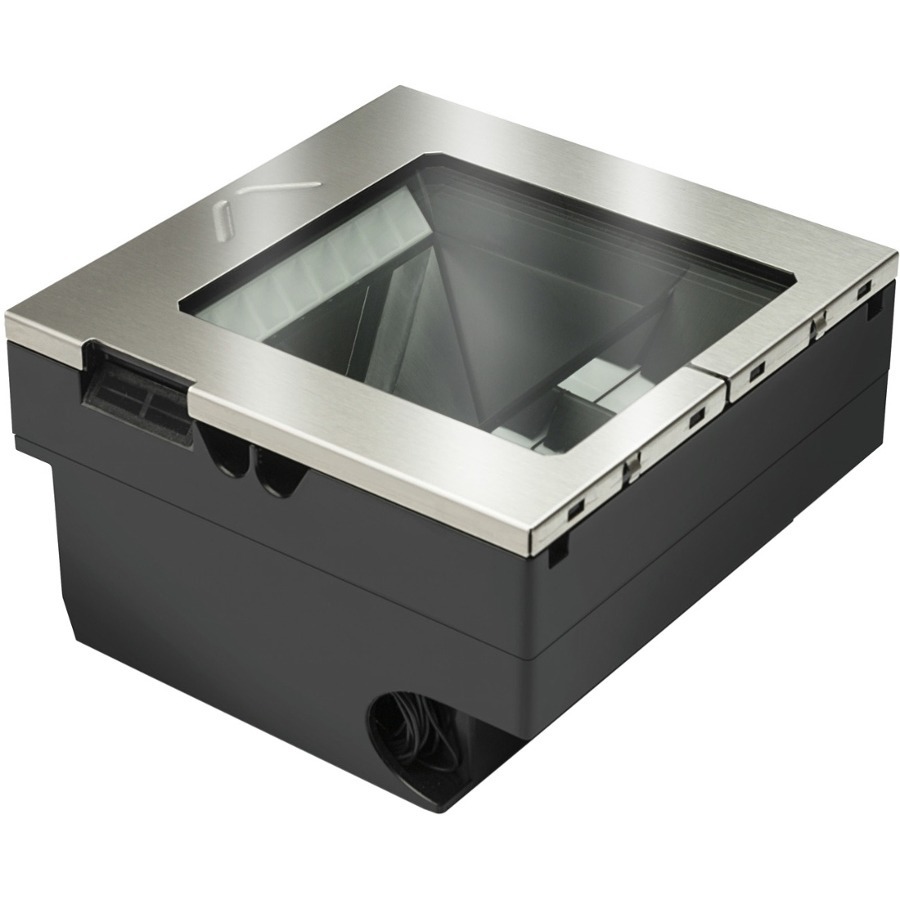

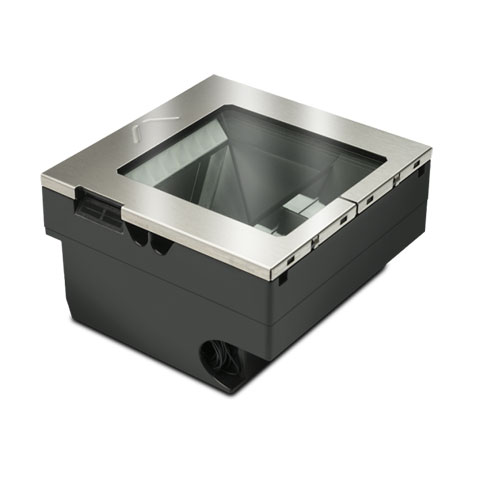

The MAGELLAN™ 3550HSi from Datalogic is a high-performance, in-counter barcode reader designed for the high-volume retail environment. Leveraging advanced digital imaging technology, this scanner delivers exceptional speed and accuracy when decoding a wide variety of barcodes, including hard-to-read ones often found on mobile devices or poorly printed products. Through its ergonomic design and support for both sweep and presentation scanning techniques, the 3550HSi maximizes productivity while enhancing the overall customer experience at the point of sale.
Key Features
Advanced digital imaging for seamless 1D, 2D, and Digimarc® barcode reading.
Quiet operation with solid-state electronics for reliable performance.
Magellan Customer Service Scanner (CSS) for quick scanning of mobile coupons and loyalty cards.
Multiple interface options and software-driven flexibility for easy upgrades.
Wide range of service options with EASEOFCARE service plans to protect your investment.
Specifications
Decoding Capability:
1D/Linear Codes
2D Codes
Stacked Codes
Digital Watermarks
Electrical:
AC Input: 100-240 VAC, 50-60 Hz
Power Consumption (Max): 4 Watts
Power Consumption (Nominal): 3 Watts
Environmental:
Operating Temperature: 10 to 40 °C
Humidity: 5-95% Non-Condensing
Sealing: IP52
Physical Characteristics:
Dimensions: 15.2 cm (L) x 15.2 cm (W) x 8.7 cm (D)
IN-COUNTER HIGH PERFORMANCE BAR CODE READER The Magellan™ 3500HSi series of scanners continue the Datalogic tradition of high performance imaging for the high-volume point-of-sale. By duplicating the speed and large field-of-view of laser scanners and expanding the capabilities of imaging, the 3500HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
ENHANCING THE CUSTOMER EXPERIENCE The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time. ENTERPRISE FEATURES Remote management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
What barcode types does the Datalogic M3550 scanner read?
The Datalogic Magellan 3550HSi reads all standard 1D linear codes including GS1 DataBar codes, plus 2D codes such as Aztec, Data Matrix, QR Code, and stacked codes like PDF417 and MicroPDF417. This 2D imaging capability gives you exceptional flexibility for both traditional retail barcodes and modern product labeling standards. We offer this scanner for applications requiring broad barcode format support.
Is the Datalogic M3550 suitable for hard-to-read or damaged barcodes?
Yes, the Magellan 3550HSi is specifically designed to excel on hard-to-read, truncated, out-of-spec, and poorly printed barcodes. The scanner's high-performance 2D imaging technology duplicates the speed and field-of-view of laser scanners while expanding imaging capabilities, making it ideal for challenging retail environments. This makes it an excellent choice for high-volume point-of-sale applications where barcode quality varies.
What connectivity options does the M3550 provide?
The Datalogic M3550 connects via OEM USB with an included USB POT cable, and also supports multiple interface options including IBM 46xx, Keyboard Wedge, RS-232, and USB COM. This multi-interface flexibility allows seamless integration into existing POS systems and retail environments. Contact us today to discuss the best connectivity solution for your specific setup.
Can the Datalogic M3550 handle both sweep and presentation scanning?
Yes, the Magellan 3550HSi enables both high-speed sweep scanning and presentation scanning techniques, ensuring maximum productivity and ergonomic ease for cashiers. The scanner's design supports multiple scanning methods without compromising performance, making it adaptable to different operational preferences. Visit barcodesinc.com to learn more about how this flexibility benefits your checkout operations.
What are the environmental operating conditions for the M3550?
The Datalogic M3550 operates reliably in temperatures from 0 to 40°C (32 to 104°F) with humidity levels of 5-95% non-condensing, and can handle ambient light conditions up to 86,100 lux. The scanner includes 25 kV ESD protection for durability in busy retail environments. These robust environmental specifications ensure consistent performance in typical point-of-sale settings.
What optional features are available with the Datalogic M3550?
The M3550 supports optional EAS (Electronic Article Surveillance) features including integration with Checkpoint Systems and Sensormatic deactivation controllers, plus value-added features like Diagnostic Reporting, Host Download, and Productivity Index Reporting (PIR). These optional capabilities help optimize loss prevention and operational monitoring in retail environments. Contact us today to configure the M3550 with the features you need.
The Datalogic M3550-010200-00403 Barcode Scanner is also known as
M355001020000403
Full specifications (PDF)
