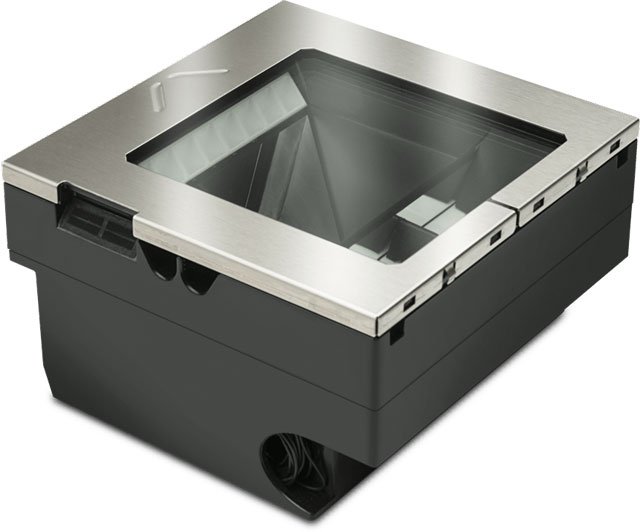

Datalogic Magellan 3510HSi Barcode Scanner Model Overview
The MAGELLAN™ 3510HSi high-performance barcode reader by Datalogic is engineered for seamless integration and innovative performance at the point-of-sale. Designed to support existing installations with compatible cables and mounts, the 3510HSi offers a powerful computing platform, operating effectively from a single 5V USB connection. Its advanced imaging technology excels in reading hard-to-scan and various barcode types, promoting utmost productivity and ergonomics. With additional features like the optional Customer Service Scanner, retailers can enhance customer engagement, significantly reducing transaction times.
Key features:
Advanced digital imaging for superb performance and reliability
Seamless decoding of 1D, 2D, and Digimarc barcodes
Flexible connectivity options with multiple interfaces
Image capture capability with a micro SD card slot
Adaptable illumination ensures user comfort during operation
Remote management support through established POS systems
Solid-state electronics for silent and trustworthy operation
Specifications:
Decoding Capability: 1D/Linear Codes, 2D Codes, Stacked Codes, Digital Watermarks
Electrical:
AC Input: 100-240 VAC, 50-60 Hz
DC Input: 5-12V
Power Consumption: Maximum 2.25W @ 5V
Environmental:
Operating Temperature: 10 to 40 °C / 50 to 104 °F
Humidity: 5-95% (Non-Condensing)
IP52 Sealing
Reading Performance:
Image Sensor: 1 MP; 1280 x 800 pixels
Read Rate: 30 million pixels per second
Reading Angle: Pitch +/- 65°, Roll 0-360°, Skew +/- 75°
Audio and LED Read Indicators
Physical Characteristics:
Dimensions: 8.7 cm D x 15.2 cm L x 15.2 cm W
Weight: 0.98 kg / 2.16 lb
Warranty: 3-Year Factory Warranty
Datalogic M3513-010220 Barcode Scanner Overview
IN-COUNTER HIGH PERFORMANCE BAR CODE READER
The Magellan 3550HSi series of scanners continue the Datalogic tradition of high performance imaging for the high-volume point-of-sale. By duplicating the speed and large field-of-view of laser scanners and expanding the capabilities of imaging, the 3550HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
ENHANCING THE CUSTOMER EXPERIENCE
The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
ENTERPRISE FEATURES
Remote management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director and Wavelink Avalanche. Additional capabilities are available with the Value Added Features included in every Magellan scanner.

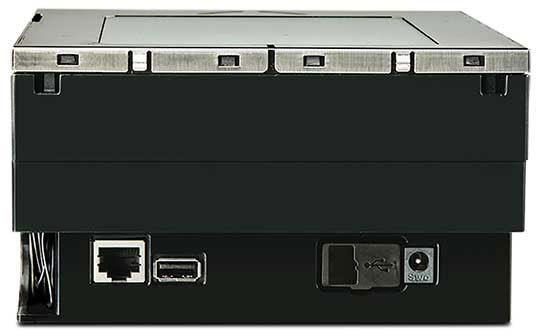

What are the main connectivity options for the Datalogic M3513-010220 Magellan 3510HSi scanner?
The Magellan 3510HSi offers multiple interface options including OEM (IBM) USB, RS-232, USB Keyboard, USB Com, and USB TEC connections. This versatility makes it easy to integrate into existing POS systems, and the scanner can power from a single 5V USB connection, eliminating the need for separate power supplies in most installations.
Is the Datalogic Magellan 3510HSi compatible with my existing counter mount setup?
Yes, the Magellan 3510HSi is designed for easy integration into existing installations and uses the same cables, mounts, and exterior plastics as the Magellan 3550HSi. We offer compatible mounting options including the Standard Counter Mount (11-0027) and the Standard Counter Mount with HS1250 Fill Kit (11-0178), which is included with this model.
What barcode types can the Magellan 3510HSi scanner read?
The Magellan 3510HSi is a 2D imaging scanner capable of reading both traditional 1D barcodes and 2D barcodes including QR codes. Its imaging technology provides high-performance barcode capture suitable for general-purpose retail and grocery applications.
What are the physical dimensions and weight of the M3513-010220 scanner?
The Magellan 3510HSi measures 15.2 cm (6.0 in) in length and width, with a depth below counter of 8.7 cm (3.4 in), and weighs only 0.98 kg (2.16 lb). Its compact design makes it ideal for in-counter installation in retail and point-of-sale environments.
Does the Datalogic Magellan 3510HSi support EAS (Electronic Article Surveillance) integration?
Yes, the Magellan 3510HSi includes integrated EAS hardware that works with Checkpoint Systems Counterpoint IX and Evolve D11 models, as well as Sensormatic systems with Good Read Acknowledgement capability. This allows for seamless integration with loss prevention systems in retail environments.
What diagnostic and management features are available for the Magellan 3510HSi?
The Magellan 3510HSi includes valuable diagnostic reporting, host download capabilities, and Magellan ULE Scripting for advanced configuration and troubleshooting. These features enable IT teams to monitor scanner performance and customize functionality to meet specific operational requirements. Contact us today to learn more about these capabilities.
The Datalogic M3513-010220 Barcode Scanner is also known as
DTL-M3513010220
or M3513010220.
