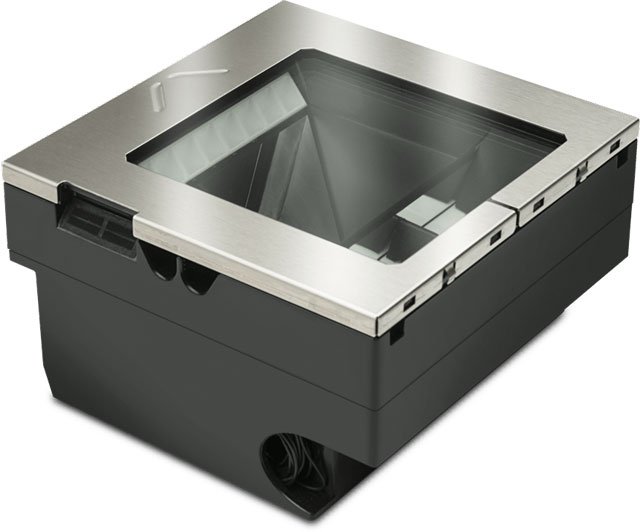

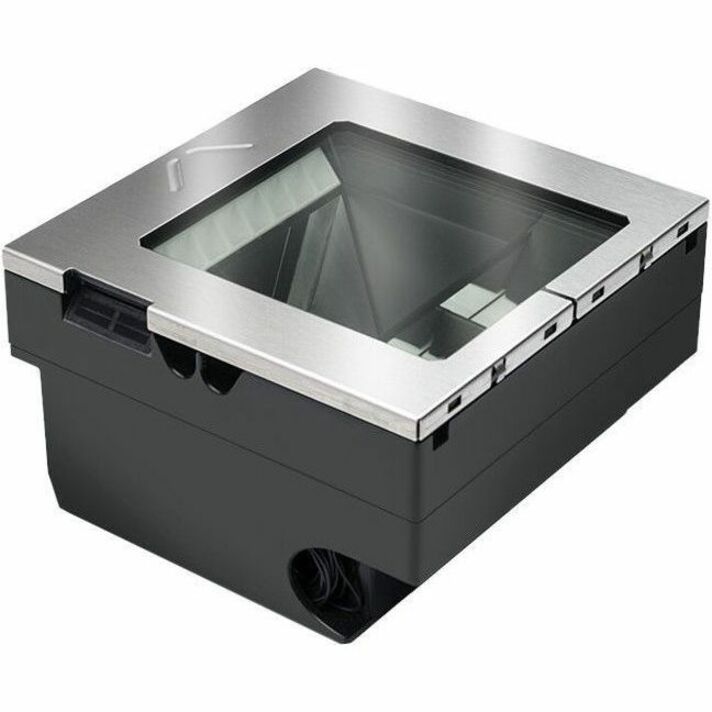

Datalogic Magellan 3510HSi Barcode Scanner Model Overview
The MAGELLAN™ 3510HSi high-performance barcode reader by Datalogic is engineered for seamless integration and innovative performance at the point-of-sale. Designed to support existing installations with compatible cables and mounts, the 3510HSi offers a powerful computing platform, operating effectively from a single 5V USB connection. Its advanced imaging technology excels in reading hard-to-scan and various barcode types, promoting utmost productivity and ergonomics. With additional features like the optional Customer Service Scanner, retailers can enhance customer engagement, significantly reducing transaction times.
Key features:
Advanced digital imaging for superb performance and reliability
Seamless decoding of 1D, 2D, and Digimarc barcodes
Flexible connectivity options with multiple interfaces
Image capture capability with a micro SD card slot
Adaptable illumination ensures user comfort during operation
Remote management support through established POS systems
Solid-state electronics for silent and trustworthy operation
Specifications:
Decoding Capability: 1D/Linear Codes, 2D Codes, Stacked Codes, Digital Watermarks
Electrical:
AC Input: 100-240 VAC, 50-60 Hz
DC Input: 5-12V
Power Consumption: Maximum 2.25W @ 5V
Environmental:
Operating Temperature: 10 to 40 °C / 50 to 104 °F
Humidity: 5-95% (Non-Condensing)
IP52 Sealing
Reading Performance:
Image Sensor: 1 MP; 1280 x 800 pixels
Read Rate: 30 million pixels per second
Reading Angle: Pitch +/- 65°, Roll 0-360°, Skew +/- 75°
The Magellan 3510HSi series of scanners continue the Datalogic tradition of high performance imaging for the point-of-sale. With the same cables, mounts and exterior plastics as the Magellan 3550HSi, the 3510HSi scanner is easy to integrate into existing installations. The new electronics platform allows the M3510HSi to power from a single 5V USB connection, providing outstanding performance and easy connection to any POS system.
With a large field-of-view and the capabilities of imaging, the 3510HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
ENHANCING THE CUSTOMER EXPERIENCE
The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
ENTERPRISE FEATURES
Remote management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director and Wavelink Avalanche. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
What are the main connectivity options for the Datalogic Magellan 3510HSi scanner?

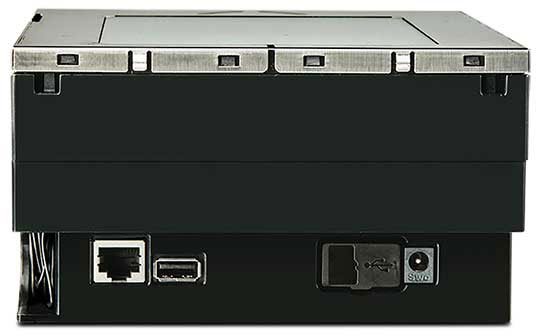

The Magellan 3510HSi offers multiple interface options including OEM (IBM) USB, RS-232, USB Keyboard, and USB Com connections, making it compatible with virtually any POS system. The scanner powers from a single 5V USB connection, eliminating the need for separate power supplies in most installations. We offer this model with a 15-inch USB keyboard POT cable included for immediate deployment.
Is the Datalogic Magellan 3510HSi compatible with existing Magellan 3550HSi installations?
Yes, the 3510HSi is designed as a drop-in replacement for the 3550HSi, using the same cables, mounts, and exterior plastics for seamless integration into existing installations. This compatibility makes upgrades straightforward without requiring new mounting hardware or extensive reconfiguration. Contact us today if you need assistance with integration planning.
What barcode formats can the Magellan 3510HSi read?
The Magellan 3510HSi features a 2D imaging engine capable of reading both traditional 1D barcodes and 2D codes including QR codes. This versatility makes it suitable for general-purpose retail and warehouse applications where you need to scan multiple barcode formats. Visit barcodesinc.com to explore our full range of 2D imaging scanners.
What are the physical dimensions and weight of the Magellan 3510HSi?
The Magellan 3510HSi measures 15.2 cm (6.0 in) in length and width, with a 8.7 cm (3.4 in) depth below the counter, and weighs only 0.98 kg (2.16 lb). Its compact design makes it ideal for in-counter installations where space is limited. The standard counter mount is included with the scanner available from us.
Does the Magellan 3510HSi support EAS (Electronic Article Surveillance) systems?
Yes, the Magellan 3510HSi includes integrated EAS hardware that works with Checkpoint Systems Counterpoint IX and Evolve D11 models, as well as Sensormatic systems with Good Read Acknowledgement. This integration allows retailers to combine barcode scanning with loss prevention in a single device. Contact us today for EAS-specific configuration details.
What mounting options are available for the Magellan 3510HSi scanner?
We offer the standard counter mount (model 11-0027) as the included option, with an optional counter mount featuring the Magellan HS1250 Fill Kit (model 11-0178) available for specialized installations. Both mounts are compatible with the 3510HSi's compact form factor and integrate seamlessly with existing POS counters. Visit barcodesinc.com or contact us today to discuss your specific mounting requirements.
The Datalogic M3513-010210-00604 Barcode Scanner is also known as
DTL-M351301021000604
or M351301021000604.
Full specifications (PDF)
