Datalogic Magellan 3510HSi Barcode Scanner Model Overview
The MAGELLAN™ 3510HSi high-performance barcode reader by Datalogic is engineered for seamless integration and innovative performance at the point-of-sale. Designed to support existing installations with compatible cables and mounts, the 3510HSi offers a powerful computing platform, operating effectively from a single 5V USB connection. Its advanced imaging technology excels in reading hard-to-scan and various barcode types, promoting utmost productivity and ergonomics. With additional features like the optional Customer Service Scanner, retailers can enhance customer engagement, significantly reducing transaction times.
Key features:
Advanced digital imaging for superb performance and reliability
Seamless decoding of 1D, 2D, and Digimarc barcodes
Flexible connectivity options with multiple interfaces
Image capture capability with a micro SD card slot
Adaptable illumination ensures user comfort during operation
Remote management support through established POS systems
Solid-state electronics for silent and trustworthy operation
Specifications:
Decoding Capability: 1D/Linear Codes, 2D Codes, Stacked Codes, Digital Watermarks
Electrical:
AC Input: 100-240 VAC, 50-60 Hz
DC Input: 5-12V
Power Consumption: Maximum 2.25W @ 5V
Environmental:
Operating Temperature: 10 to 40 °C / 50 to 104 °F
Humidity: 5-95% (Non-Condensing)
IP52 Sealing
Reading Performance:
Image Sensor: 1 MP; 1280 x 800 pixels
Read Rate: 30 million pixels per second
Reading Angle: Pitch +/- 65°, Roll 0-360°, Skew +/- 75°
Audio and LED Read Indicators
Physical Characteristics:
Dimensions: 8.7 cm D x 15.2 cm L x 15.2 cm W
Weight: 0.98 kg / 2.16 lb
Warranty: 3-Year Factory Warranty
Datalogic M3513-010200 Barcode Scanner Overview
IN-COUNTER HIGH PERFORMANCE BAR CODE READER
The Magellan 3510HSi series of scanners continue the Datalogic tradition of high performance imaging for the point-of-sale. With the same cables, mounts and exterior plastics as the Magellan 3550HSi, the 3510HSi scanner is easy to integrate into existing installations. The new electronics platform allows the M3510HSi to power from a single 5V USB connection, providing outstanding performance and easy connection to any POS system.
With a large field-of-view and the capabilities of imaging, the 3510HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
ENHANCING THE CUSTOMER EXPERIENCE
The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
ENTERPRISE FEATURES
Remote management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director and Wavelink Avalanche. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
What are the main connectivity options for the Datalogic M3513-010200 Magellan 3510HSi scanner?

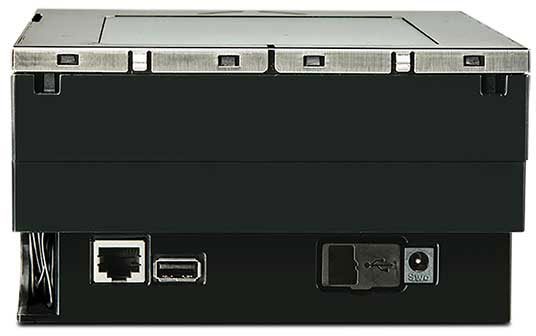

The Magellan 3510HSi offers multiple interface options including OEM (IBM) USB, RS-232, USB Keyboard, USB Com, and USB TEC to accommodate various POS system configurations. It also features a powered Type A USB auxiliary port for additional device connectivity. This flexibility makes it easy to integrate into existing retail installations without requiring extensive system modifications.
Can the Datalogic Magellan 3510HSi replace my existing Magellan 3550HSi scanner?
Yes, the Magellan 3510HSi is designed as a compatible upgrade, using the same cables, mounts, and exterior plastics as the Magellan 3550HSi for seamless integration into existing installations. The new electronics platform in the 3510HSi provides improved performance while maintaining backward compatibility with your current setup. Contact us today to discuss your migration options.
What power requirements does the Magellan 3510HSi have?
The Magellan 3510HSi is powered by a single 5V USB connection, eliminating the need for separate power supplies and simplifying installation in point-of-sale environments. This USB-powered design makes it ideal for modern retail systems where power management and cable reduction are priorities. We offer this scanner with all necessary connection options available from us.
What barcode types can the Datalogic M3513-010200 read?
The Magellan 3510HSi features a 2D imaging technology with a tin oxide platter that enables it to read both 1D barcodes and 2D codes including QR codes, making it versatile for general-purpose retail and grocery scanning applications. This imaging capability provides superior performance compared to laser-based scanners for reading damaged or poorly printed barcodes. Visit barcodesinc.com to verify specific barcode format compatibility for your application.
What are the physical dimensions and weight of the Magellan 3510HSi in-counter scanner?
The Magellan 3510HSi measures 15.2 cm (6.0 in) in length and width, with a depth of 8.7 cm (3.4 in) below the counter, and weighs only 0.98 kg (2.16 lb). Its compact footprint is designed specifically for in-counter installation in retail environments. Optional counter mounts are available from us to secure and position the scanner for optimal performance.
Does the Magellan 3510HSi support EAS and loss prevention integration?
Yes, the Magellan 3510HSi includes integrated EAS hardware that works with Checkpoint Systems Counterpoint IX and Evolve D11 models, as well as Sensormatic systems with good read acknowledgement capability. This integration enables retailers to combine barcode scanning with electronic article surveillance in a single device. Contact us today to configure EAS options for your specific loss prevention system.
The Datalogic M3513-010200 Barcode Scanner is also known as
DTL-M3513010200
or M3513010200.
Full specifications (PDF)
