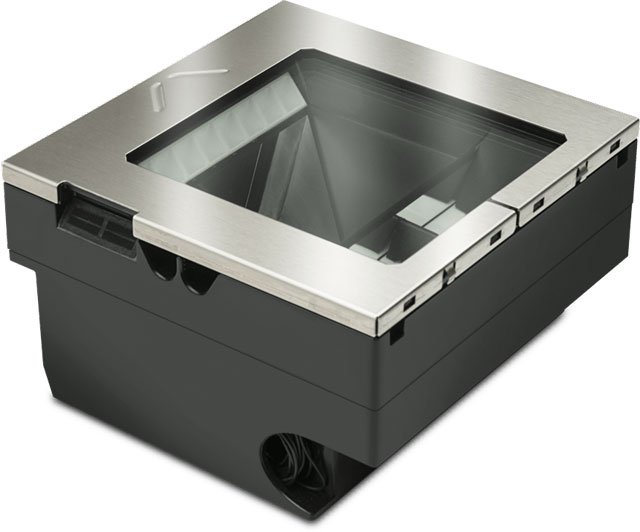

DataLogic Magellan 3510HSi Barcode Scanner Model Overview
The MAGELLAN™ 3510HSi high-performance barcode reader by Datalogic is engineered for seamless integration and innovative performance at the point-of-sale. Designed to support existing installations with compatible cables and mounts, the 3510HSi offers a powerful computing platform, operating effectively from a single 5V USB connection. Its advanced imaging technology excels in reading hard-to-scan and various barcode types, promoting utmost productivity and ergonomics. With additional features like the optional Customer Service Scanner, retailers can enhance customer engagement, significantly reducing transaction times.
Key features:
Advanced digital imaging for superb performance and reliability
Seamless decoding of 1D, 2D, and Digimarc barcodes
Flexible connectivity options with multiple interfaces
Image capture capability with a micro SD card slot
Adaptable illumination ensures user comfort during operation
Remote management support through established POS systems
Solid-state electronics for silent and trustworthy operation
Specifications:
Decoding Capability: 1D/Linear Codes, 2D Codes, Stacked Codes, Digital Watermarks
Electrical:
AC Input: 100-240 VAC, 50-60 Hz
DC Input: 5-12V
Power Consumption: Maximum 2.25W @ 5V
Environmental:
Operating Temperature: 10 to 40 °C / 50 to 104 °F
Humidity: 5-95% (Non-Condensing)
IP52 Sealing
Reading Performance:
Image Sensor: 1 MP; 1280 x 800 pixels
Read Rate: 30 million pixels per second
Reading Angle: Pitch +/- 65°, Roll 0-360°, Skew +/- 75°
Audio and LED Read Indicators
Physical Characteristics:
Dimensions: 8.7 cm D x 15.2 cm L x 15.2 cm W
Weight: 0.98 kg / 2.16 lb
Warranty: 3-Year Factory Warranty

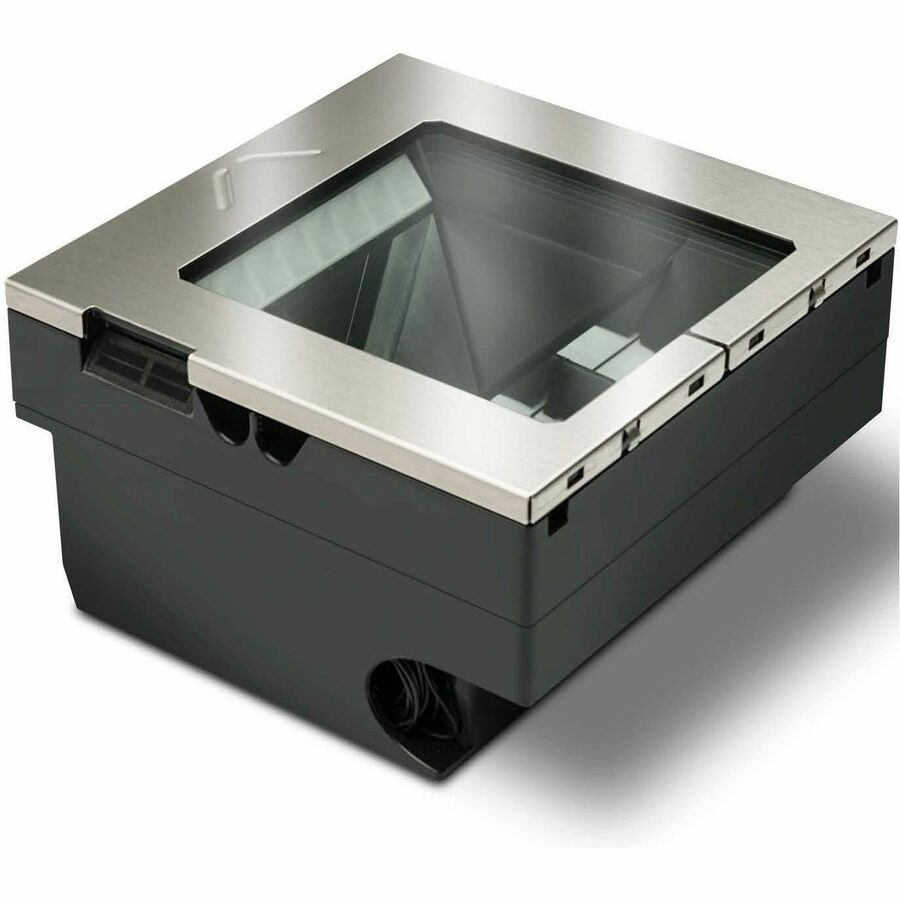

Datalogic M3511-010220 Barcode Scanner Overview
IN-COUNTER HIGH PERFORMANCE BAR CODE READER:
The Magellan 3510HSi series of scanners continue the Datalogic tradition of high performance imaging for the point-of-sale. With the same cables, mounts and exterior plastics as the Magellan 3550HSi, the 3510HSi scanner is easy to integrate into existing installations. The new electronics platform allows the M3510HSi to power from a single 5V USB connection, providing outstanding performance and easy connection to any POS system
With a large field-of-view and the capabilities of imaging, the 3510HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
ENHANCING THE CUSTOMER EXPERIENCE:
The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
ENTERPRISE FEATURES:
Remote management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director and Wavelink Avalanche . Additional capabilities are available with the Value Added Features included in every Magellan scanner
The Datalogic M3511-010220 Barcode Scanner is also known as
DTL-M3511010220
or M3511010220.
