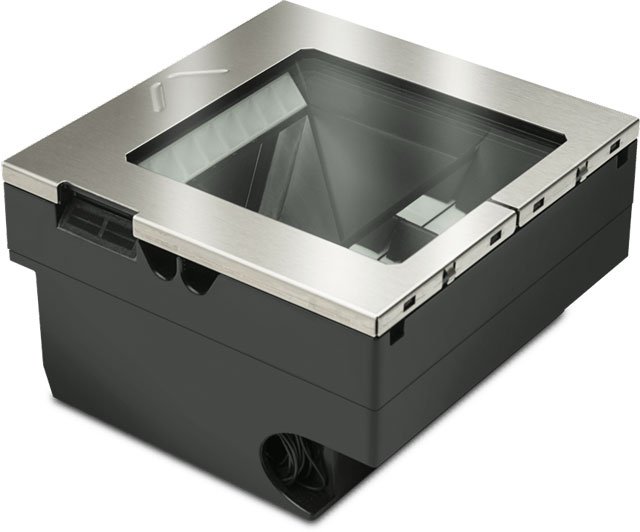

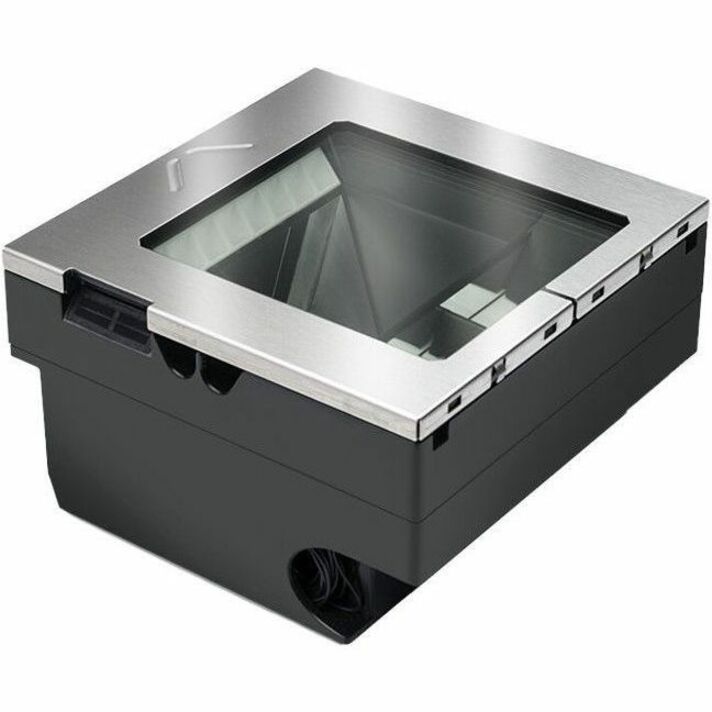

Datalogic Magellan 3510HSi Barcode Scanner Model Overview
The MAGELLAN™ 3510HSi high-performance barcode reader by Datalogic is engineered for seamless integration and innovative performance at the point-of-sale. Designed to support existing installations with compatible cables and mounts, the 3510HSi offers a powerful computing platform, operating effectively from a single 5V USB connection. Its advanced imaging technology excels in reading hard-to-scan and various barcode types, promoting utmost productivity and ergonomics. With additional features like the optional Customer Service Scanner, retailers can enhance customer engagement, significantly reducing transaction times.
Key features:
Advanced digital imaging for superb performance and reliability
Seamless decoding of 1D, 2D, and Digimarc barcodes
Flexible connectivity options with multiple interfaces
Image capture capability with a micro SD card slot
Adaptable illumination ensures user comfort during operation
Remote management support through established POS systems
Solid-state electronics for silent and trustworthy operation
Specifications:
Decoding Capability: 1D/Linear Codes, 2D Codes, Stacked Codes, Digital Watermarks
Electrical:
AC Input: 100-240 VAC, 50-60 Hz
DC Input: 5-12V
Power Consumption: Maximum 2.25W @ 5V
Environmental:
Operating Temperature: 10 to 40 °C / 50 to 104 °F
Humidity: 5-95% (Non-Condensing)
IP52 Sealing
Reading Performance:
Image Sensor: 1 MP; 1280 x 800 pixels
Read Rate: 30 million pixels per second
Reading Angle: Pitch +/- 65°, Roll 0-360°, Skew +/- 75°
The ground-breakingMagellan 3510HSiand3550HSiin-counter imaging scanners from Datalogic are designed for versatility and high performance. Both provide best-in-class efficiency for your operations. While outwardly identical, theM3510HSiand3550HSioffer different levels of performance to suit your needs. TheMagellan 3510HSiis an entry level imaging scanner, providing powerful effectiveness at an attractive price. If you need more processing power and faster throughput, the high endMagellan 3550HSihasthe best scanning performance of any single plane scanner on the market. These scanners work well in a variety of applications includingretail point of sale,pharmacyand DIY. The large reading area and sweep scanning provide fast, reliable performance. What's more, as the only horizontal single plane imagers on the market, theMagellan 3510HSiand3550HSiprovide unmatched velocity to your business.
Achieve premium performance from a premium product:
TheMagellan 3510HSiand3550HSiscanners have an aesthetically pleasing design, combined with durability to stand up to the rigors of the front end. They feature a stainless steel and scratch-resistant sapphire glass platter, a solid addition to your Point of Sale work area. These Magellans are certainly cutting edge and the first on the market to effortlessly read all types of barcodes, including Digimarc, with an easy transition between the smallest 1D and 2D codes. Built with leading-edge processing technology and solid-state electronics, these units make easy work of your highest speed scanning operations. No other scanner in the market can match the performance of the Magellan in-counter scanners. With a tough, shockproof design and ESD protection to 25kV, theMagellan 3510HSiand3550HSiscanners areyour long term partners when it comes to operational efficiency.
Plug and play for quick setup:
Installing theMagellan 3510HSiand3550HSiscanners is easier and faster than ever. TheMagellan 3510HSi scanners offer the unique advantage of having a single USB cable for power and communication. Adding these into your POS system is simple. The USB auxiliary port included in both products makes adding a customer service scanner or aDatalogic handheld scannerquick and easy. This boosts efficiency and productivity by eliminating the need to lift large or heavy items from shopping carts to the scanning area. Of course, while the operator is busy scanning all of the items, customers can scan their loyalty cards with a customer service scanner. In today's ultra-clean, ultra-safe, non-contact environments this is a must. As far as security is concerned, theMagellan 3510HSiand3550HSican be integrated with most electronic article surveillance (EAS) systems, ensuring tags are not deactivated until after they have been scanned.
What interfaces does the Datalogic Magellan 3510HSi scanner support?

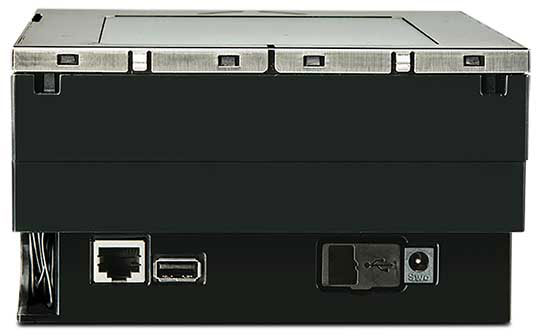

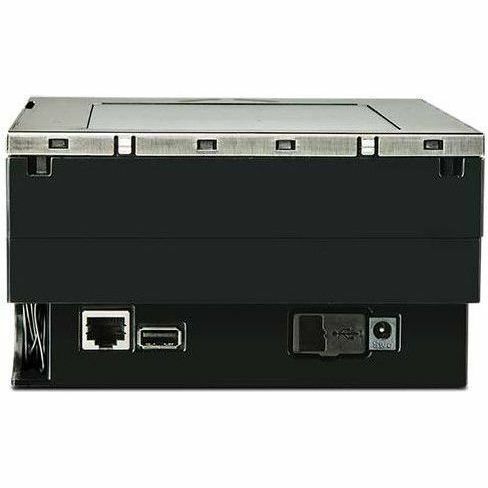

The Magellan 3510HSi offers multiple connectivity options including OEM USB, RS-232, USB Keyboard, USB Com, and USB TEC interfaces. It also features a powered Type A USB auxiliary port that can draw power from either a power supply or 12V host power, making it flexible for various POS system integrations. We offer this scanner with a 15-inch RS-232 interface cable included for immediate deployment.
Can the Magellan 3510HSi replace my existing Magellan 3550HSi scanner?
Yes, the Magellan 3510HSi is designed as a drop-in replacement for the 3550HSi, using the same cables, mounts, and exterior plastics for seamless integration into existing installations. The new electronics platform in the 3510HSi provides outstanding performance while requiring only a single 5V USB connection, simplifying your POS setup. Contact us today to discuss your upgrade path.
What barcode types can the Magellan 3510HSi read?
The Magellan 3510HSi is a 2D imager that reads both traditional 1D barcodes and 2D codes including QR codes, making it suitable for general-purpose retail and grocery applications. The sapphire glass window provides durability and optical clarity for reliable scanning performance across a wide range of barcode formats.
What are the physical dimensions and weight of the Magellan 3510HSi?
The Magellan 3510HSi measures 15.2 cm (6.0 inches) in length and width, with a depth below counter of 8.7 cm (3.4 inches), and weighs only 0.98 kg (2.16 lb). This compact design makes it ideal for in-counter mounting in retail and grocery environments without consuming excessive workspace.
Does the Magellan 3510HSi support EAS and loss prevention features?
Yes, the Magellan 3510HSi includes integrated EAS hardware that works with Checkpoint Systems Counterpoint IX and Evolve D11 models, as well as Sensormatic systems with Good Read Acknowledgement capability. These features enable seamless integration with your existing loss prevention infrastructure. Visit barcodesinc.com to explore EAS-compatible configurations available from us.
What mounting options are available for the Magellan 3510HSi?
We offer the Magellan 3510HSi with a standard counter mount (model 11-0027) included in the package, and an optional counter mount with fill kit (model 11-0178) is available for specialized installations. Both mounts are designed for secure in-counter positioning and maintain compatibility with the scanner's compact footprint. Contact us today for mounting solutions tailored to your POS setup.
The Datalogic M3511-010210-07104 Barcode Scanner is also known as
M351101021007104
