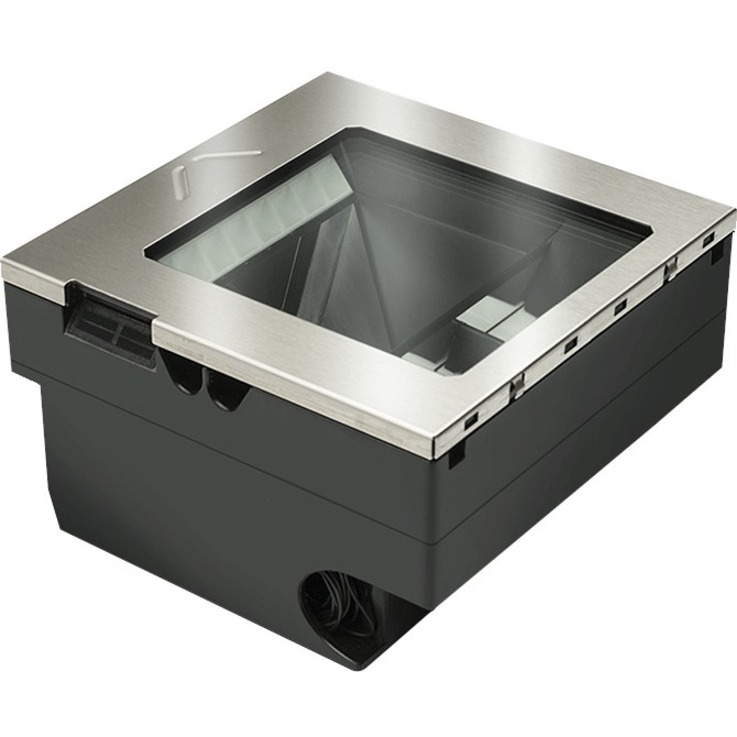

Datalogic Magellan 3510HSi Barcode Scanner Model Overview
The MAGELLAN™ 3510HSi high-performance barcode reader by Datalogic is engineered for seamless integration and innovative performance at the point-of-sale. Designed to support existing installations with compatible cables and mounts, the 3510HSi offers a powerful computing platform, operating effectively from a single 5V USB connection. Its advanced imaging technology excels in reading hard-to-scan and various barcode types, promoting utmost productivity and ergonomics. With additional features like the optional Customer Service Scanner, retailers can enhance customer engagement, significantly reducing transaction times.
Key features:
Advanced digital imaging for superb performance and reliability
Seamless decoding of 1D, 2D, and Digimarc barcodes
Flexible connectivity options with multiple interfaces
Image capture capability with a micro SD card slot
Adaptable illumination ensures user comfort during operation
Remote management support through established POS systems
Solid-state electronics for silent and trustworthy operation
Specifications:
Decoding Capability: 1D/Linear Codes, 2D Codes, Stacked Codes, Digital Watermarks
Electrical:
AC Input: 100-240 VAC, 50-60 Hz
DC Input: 5-12V
Power Consumption: Maximum 2.25W @ 5V
Environmental:
Operating Temperature: 10 to 40 °C / 50 to 104 °F
Humidity: 5-95% (Non-Condensing)
IP52 Sealing
Reading Performance:
Image Sensor: 1 MP; 1280 x 800 pixels
Read Rate: 30 million pixels per second
Reading Angle: Pitch +/- 65°, Roll 0-360°, Skew +/- 75°
The Magellan™ 3550HSi series of scanners continue the Datalogic tradition of high performance imaging for the high-volume point-of-sale. By duplicating the speed and large field-of-view of laser scanners and expanding the capabilities of imaging, the 3550HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
ENHANCING THE CUSTOMER EXPERIENCE
The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
ENTERPRISE FEATURES
Remote management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner. ENHANCING THE CUSTOMER EXPERIENCE

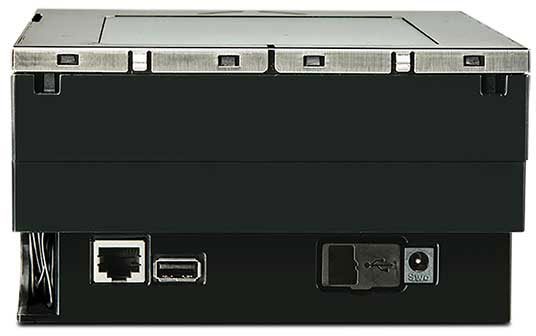

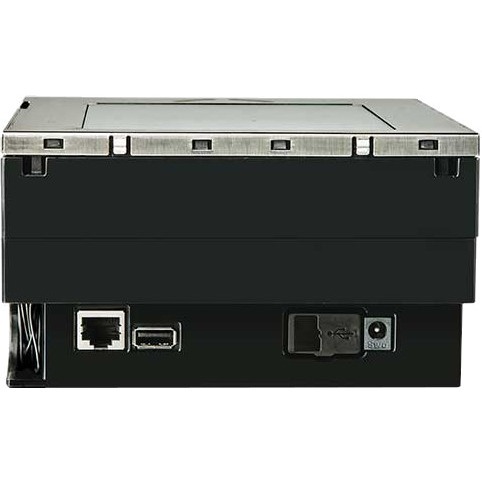

What are the main connectivity options for the Datalogic Magellan 3510HSi scanner?
The Magellan 3510HSi offers multiple interface options including OEM USB, RS-232, USB Keyboard, and USB Com connections. The scanner powers from a single 5V USB connection, making it easy to integrate into any POS system without requiring a separate power supply. We offer this model with a 15-inch USB keyboard cable included for immediate deployment.
Is the Datalogic 3510HSi compatible with my existing Magellan 3550HSi installation?
Yes, the Magellan 3510HSi is designed for easy integration into existing installations. It uses the same cables, mounts, and exterior plastics as the Magellan 3550HSi, allowing you to upgrade or expand your system without replacing mounting hardware or reconfiguring your setup. The standard counter mount is included with our offering.
What barcode types can the Magellan 3510HSi read?
The Magellan 3510HSi features a 2D imaging technology with sapphire glass, enabling it to read both traditional 1D barcodes and 2D codes including QR codes. This makes it a versatile solution for general-purpose retail and grocery scanning applications available from us.
What are the physical dimensions and weight of the Magellan 3510HSi?
The Magellan 3510HSi measures 15.2 cm (6.0 inches) in length and width, with a depth of 8.7 cm (3.4 inches) below the counter. The scanner weighs only 0.98 kg (2.16 lbs), making it a compact in-counter solution for point-of-sale environments.
Does the Datalogic Magellan 3510HSi support EAS and loss prevention features?
Yes, the Magellan 3510HSi includes integrated EAS hardware that works with Checkpoint Systems Counterpoint IX and Evolve D11 models, as well as Sensormatic Good Read Acknowledgement. Additional value-added features include diagnostic reporting, host download capability, and Magellan ULE scripting for advanced functionality.
What mounting options are available for the Magellan 3510HSi?
We offer the Magellan 3510HSi with a standard counter mount included. For specialized applications, optional mounting solutions are available, including the standard counter mount with Magellan HS1250 fill kit. Contact us today to discuss the best mounting configuration for your specific POS installation.
The Datalogic M3511-010210-00604 Barcode Scanner is also known as
DTL-M351101021000604
or M351101021000604.
