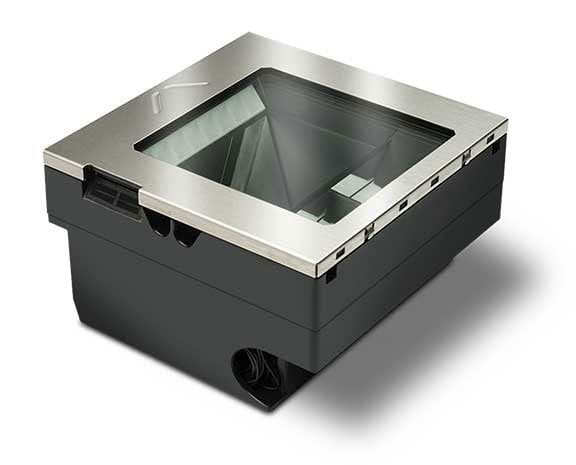

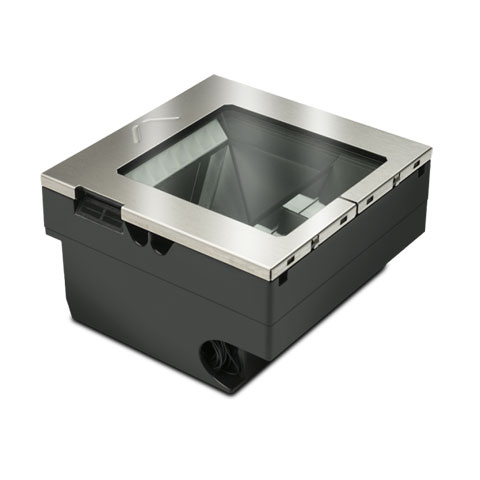

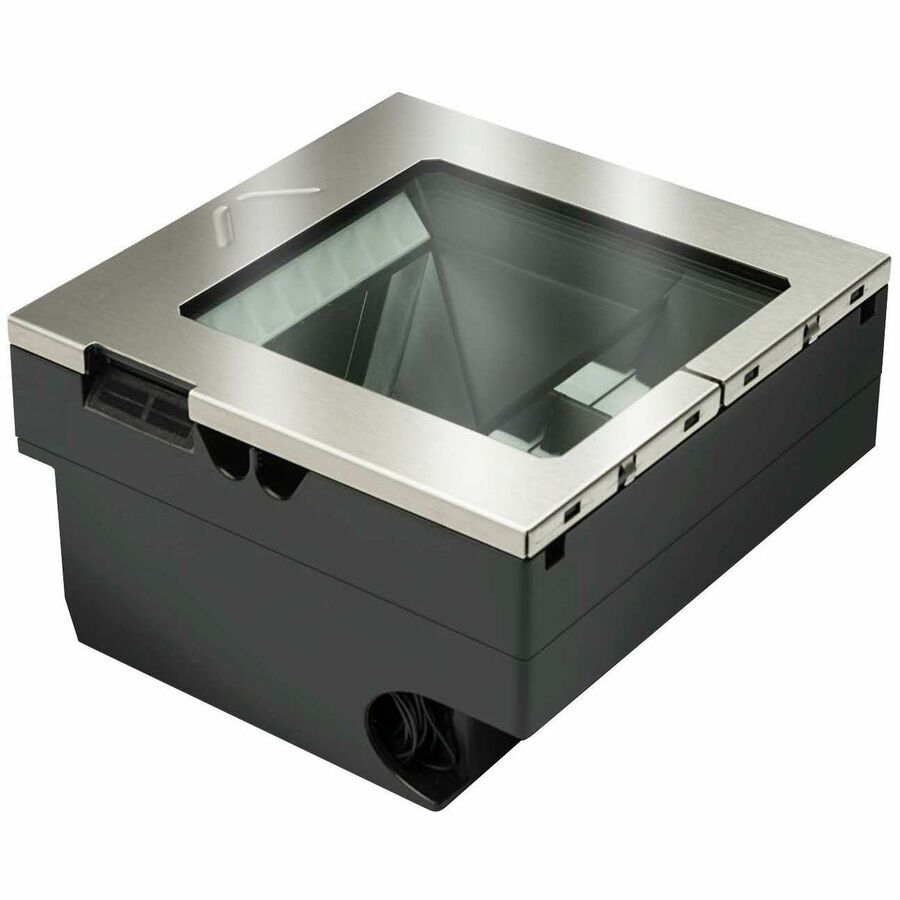

Datalogic Magellan 35XXHSi Barcode Scanner Model Overview
The MAGELLAN™ 3550HSi from Datalogic is a high-performance, in-counter barcode reader designed for the high-volume retail environment. Leveraging advanced digital imaging technology, this scanner delivers exceptional speed and accuracy when decoding a wide variety of barcodes, including hard-to-read ones often found on mobile devices or poorly printed products. Through its ergonomic design and support for both sweep and presentation scanning techniques, the 3550HSi maximizes productivity while enhancing the overall customer experience at the point of sale.
Key Features
Advanced digital imaging for seamless 1D, 2D, and Digimarc® barcode reading.
Quiet operation with solid-state electronics for reliable performance.
Magellan Customer Service Scanner (CSS) for quick scanning of mobile coupons and loyalty cards.
Multiple interface options and software-driven flexibility for easy upgrades.
Wide range of service options with EASEOFCARE service plans to protect your investment.
Specifications
Decoding Capability:
1D/Linear Codes
2D Codes
Stacked Codes
Digital Watermarks
Electrical:
AC Input: 100-240 VAC, 50-60 Hz
Power Consumption (Max): 4 Watts
Power Consumption (Nominal): 3 Watts
Environmental:
Operating Temperature: 10 to 40 °C
Humidity: 5-95% Non-Condensing
Sealing: IP52
Physical Characteristics:
Dimensions: 15.2 cm (L) x 15.2 cm (W) x 8.7 cm (D)
The Magellan 3550HSi series of scanners continue the Datalogic tradition of high performance imaging for the high-volume point-of-sale. By duplicating the speed and large field-of-view of laser scanners and expanding the capabilities of imaging, the 3550HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
ENHANCING THE CUSTOMER EXPERIENCE
The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
ENTERPRISE FEATURES
Remote management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
What scanning technologies does the DataLogic Magellan 3510HSi use?
The Magellan 3510HSi is a 2D imaging scanner that combines the speed and large field-of-view of laser scanners with expanded imaging capabilities. This hybrid approach delivers outstanding performance on hard-to-read barcodes, truncated codes, out-of-spec codes, and poorly printed barcodes while supporting both high-speed sweep and presentation scanning techniques.
What connection options are available for the Magellan 3510HSi?
The Magellan 3510HSi offers multiple interface options including OEM USB, RS-232, USB Keyboard, USB Com, and USB TEC connectivity. It also features a powered Type A USB auxiliary port for additional peripherals, though this requires a power supply or 12V host power to operate.
Is the DataLogic M3511-010210-00403 suitable for high-volume point-of-sale environments?
Yes, the Magellan 3500HSi series is specifically designed for high-volume point-of-sale applications with high-performance imaging capabilities. The scanner enables maximum productivity and ergonomic ease, making it ideal for busy retail and warehouse checkout environments where speed and reliability are critical.
What are the physical dimensions and weight of this fixed barcode scanner?
The Magellan 3510HSi measures 15.2 cm (6.0 in) in length and width, with a below-counter depth of 8.7 cm (3.4 in). The scanner weighs only 0.98 kg (2.16 lb), making it lightweight and easy to install in compact counter-mounted configurations.
What mounting options are available for the Magellan 3510HSi?
We offer the standard counter mount (11-0027) as the base configuration for this scanner. An optional counter mount with Magellan HS1250 Fill Kit (11-0178) is also available from us for enhanced installation flexibility and aesthetic integration into your point-of-sale setup.
Does the Magellan 3510HSi support EAS and diagnostic features?
Yes, the Magellan 3510HSi includes integrated EAS hardware compatibility with Checkpoint Systems and Sensormatic systems, along with good read acknowledgement functionality. It also supports advanced features like diagnostic reporting, host download capabilities, and Magellan ULE scripting for enhanced operational control.
The Datalogic M3511-010210-00403 Fixed Barcode Scanner is also known as
M351101021000403
Full specifications (PDF)
