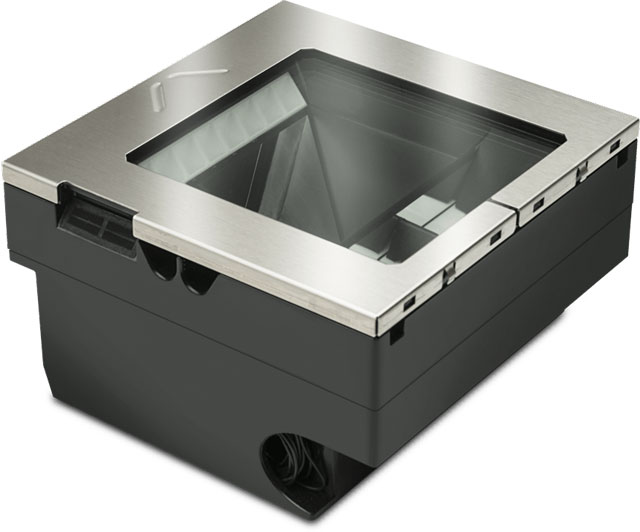

Datalogic Magellan 3510HSi – Barcode Scanner – Corded – 2D – Cable Only
Part Number:
M3511-010200-00403
Request a Bulk Pricing Quote
Chat with a Product Expert
DataLogic Magellan 35XXHSi Barcode Scanner Model Overview
The MAGELLAN™ 3550HSi from Datalogic is a high-performance, in-counter barcode reader designed for the high-volume retail environment. Leveraging advanced digital imaging technology, this scanner delivers exceptional speed and accuracy when decoding a wide variety of barcodes, including hard-to-read ones often found on mobile devices or poorly printed products. Through its ergonomic design and support for both sweep and presentation scanning techniques, the 3550HSi maximizes productivity while enhancing the overall customer experience at the point of sale.
Key Features Advanced digital imaging for seamless 1D, 2D, and Digimarc® barcode reading.Quiet operation with solid-state electronics for reliable performance.Magellan Customer Service Scanner (CSS) for quick scanning of mobile coupons and loyalty cards.Multiple interface options and software-driven flexibility for easy upgrades.Wide range of service options with EASEOFCARE service plans to protect your investment.Specifications Decoding Capability: 1D/Linear Codes 2D Codes Stacked Codes Digital Watermarks Electrical: AC Input: 100-240 VAC, 50-60 Hz Power Consumption (Max): 4 Watts Power Consumption (Nominal): 3 Watts Environmental: Operating Temperature: 10 to 40 °C Humidity: 5-95% Non-Condensing Sealing: IP52 Physical Characteristics: Dimensions: 15.2 cm (L) x 15.2 cm (W) x 8.7 cm (D) Weight: 0.98 kg / 2.16 lb Warranty: 3-Year Factory Warranty
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
1D / Linear Codes
Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes.
2D Codes
Aztec Code; Data Matrix (ECC200 only); QR Code
Stacked Codes
GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417
Image Sensor Type:
Imager
Features:
Sensormatic EAS Beep Checkpoint EAS
Reading Angle (Skew):
75°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
360°
Maximum Ambient Light:
86100 lux
Minimum Print Contrast:
25%
Image Sensor Resolution:
1280 x 800
Interfaces/Ports
Power Description
Maximum Operating Power Consumption:
2.25 W
Environmental Conditions
Operating Temperature:
50°F (10°C) to 104°F (40°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
5% to 95%
Physical Characteristics
Weight (Approximate):
2.16 lb
Miscellaneous
Package Contents:
Magellan 3500HSi 3510HSi Barcode Scanner USB Cable
Ingress Protection (IP) Rating:
IP52
Environmentally Friendly:
Yes
Environmental Compliance:
China Restriction of Hazardous Substances (China RoHS) Restriction of Hazardous Substances (RoHS)
Warranty
