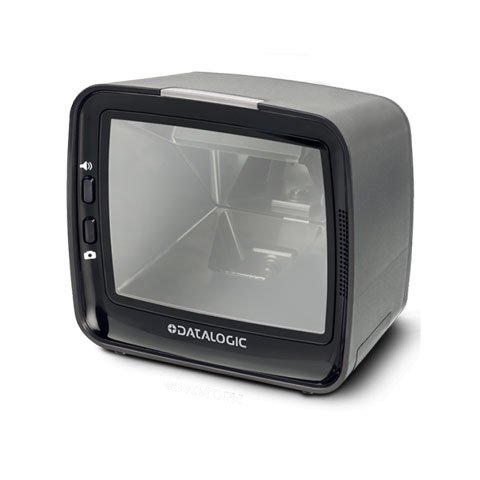

Datalogic Magellan 3450VSi Barcode Scanner Model Overview
The Magellan™ 3450VSi from Datalogic is the epitome of high-performance bar code scanning designed for high-volume point-of-sale environments. Engineered for speed and versatility, this advanced scanner excels in reading hard-to-scan barcodes, ensuring efficiency and accuracy in every transaction. With its dual scanning modes, the 3450VSi facilitates rapid operations while maintaining ergonomic functionality, enhancing the customer experience by reducing transaction times. Whether reading mobile coupons or standard printed barcodes, the Magellan 3450VSi stands out as a reliable choice for retailers. Key features:
Advanced Digital Imaging: Class-leading performance and reliability.
Seamless Reading: Effective for 1D, 2D, and Digimarc® digital watermark barcodes.
User Comfort: Adaptive illumination minimizes eye strain.
Solid-State Electronics: Ensures silent operation and superior durability.
Remote Management: Compatible with multiple management systems.
Diagnostic Reporting: Offers comprehensive systems insights.
3-Year Factory Warranty: Assured reliability.
Specifications:
Decoding Capability: Supports 1D/Linear Codes, 2D Codes, and Image Capture.
Reading Performance:
Max Read Rate: 39 million pixels per second
Read Height: 14.0 cm / 5.5 in
Electrical:
AC Input: 100-240 VAC, 50-60 Hz
Power Consumption: Operating 3.6 Watts
Environmental:
Operating Temp: 10 to 40 °C / 50 to 104 °F
Sealing: IP52
Humidity: 5-95% Non-Condensing
Physical Characteristics:
Dimensions: 13.7 x 15.2 x 9.4 cm / 5.4 x 6.0 x 3.7 in
Weight: 0.6 kg / 1.3 lb

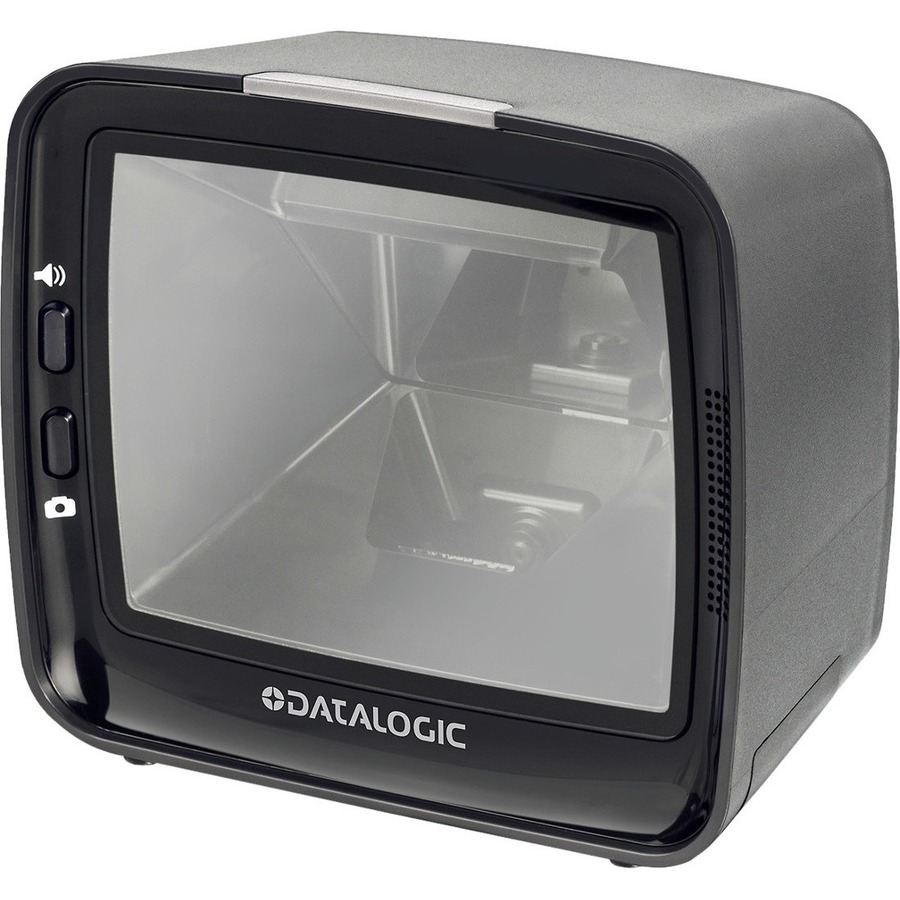

Datalogic M3450-010300 Barcode Scanner Overview
ON-COUNTER HIGH PERFORMANCE BAR CODE READER The Magellan™ 3400VSi series of scanners continue the Datalogic tradition of high performance imaging for the highvolume point-of-sale. By duplicating the speed and large field-of-view of laser scanners and expanding the capabilities of imaging, the 3400VSi scanners provide outstanding performance on hard-toread bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques, ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
ENHANCING THE CUSTOMER EXPERIENCE The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
ENTERPRISE FEATURES Remote Management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
What barcode types does the Datalogic M3450-010300 scanner read?
The Datalogic Magellan 3450VSi reads a comprehensive range of barcode formats including all standard 1D linear codes, 2D codes (Aztec, Data Matrix, QR Code, MaxiCode), and stacked codes (GS1 DataBar variants, PDF417, MicroPDF417). It also supports Digimarc barcodes, making it ideal for high-volume retail and logistics environments that require versatile decoding capabilities.
What connectivity options are available for this presentation scanner?
The M3450-010300 offers multiple interface connections including USB, RS-232, Keyboard Wedge, IBM 46xx, and OEM USB options, providing flexibility for integration into various POS and warehouse management systems. We offer this scanner as a corded presentation model, with required cables and power accessories sold separately.
Can the M3450-010300 read damaged or poorly printed barcodes?
Yes, the Magellan 3450VSi imaging technology is specifically designed to handle hard-to-read barcodes, including truncated (shortened), out-of-spec, and poorly printed codes. This capability ensures maximum productivity even in challenging real-world scanning conditions, reducing checkout delays and data entry errors.
What are the power requirements and consumption specs for this scanner?
The M3450-010300 requires AC input of 90-264 VAC at 47-63 Hz, with maximum operating power consumption of 9.9 watts and nominal consumption of 2.8 watts. Sleep mode draws only 1.8 watts, making it energy-efficient for continuous retail and warehouse operations.
What environmental conditions can this Datalogic scanner operate in?
The M3450-010300 operates reliably in ambient light conditions up to 86,100 lux, temperatures from 0-40°C (32-104°F), and humidity levels of 5-95% non-condensing. It provides 25 kV ESD protection, ensuring durability in high-traffic retail and warehouse environments.
What diagnostic and productivity features does the M3450-010300 include?
The scanner includes advanced value-added features such as Diagnostic Reporting, Host Download capability, and Productivity Index Reporting (PIR) to help optimize scanning performance and identify operational bottlenecks. These tools enable warehouse and retail managers to monitor scanner efficiency and maintain peak performance. Contact us today to learn how we can support your scanning infrastructure.
The Datalogic M3450-010300 Barcode Scanner is also known as
M3450010300
Full specifications (PDF)
