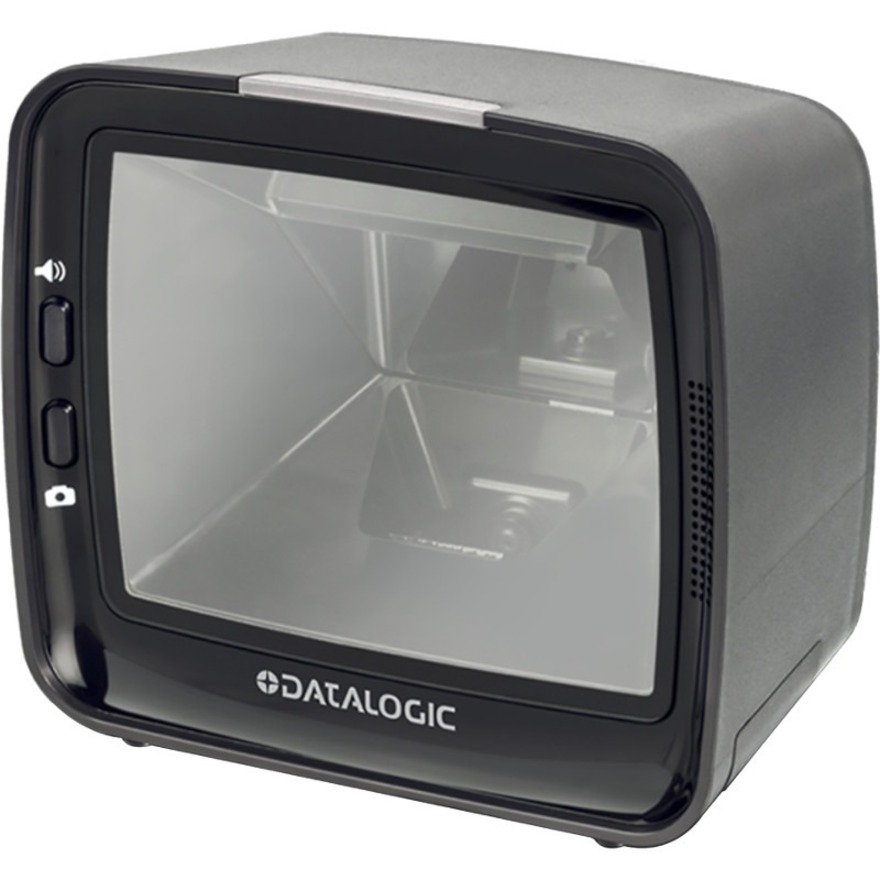

Datalogic Magellan 3450VSi Barcode Scanner Model Overview
The Magellan™ 3450VSi from Datalogic is the epitome of high-performance bar code scanning designed for high-volume point-of-sale environments. Engineered for speed and versatility, this advanced scanner excels in reading hard-to-scan barcodes, ensuring efficiency and accuracy in every transaction. With its dual scanning modes, the 3450VSi facilitates rapid operations while maintaining ergonomic functionality, enhancing the customer experience by reducing transaction times. Whether reading mobile coupons or standard printed barcodes, the Magellan 3450VSi stands out as a reliable choice for retailers. Key features:
Advanced Digital Imaging: Class-leading performance and reliability.
Seamless Reading: Effective for 1D, 2D, and Digimarc® digital watermark barcodes.
User Comfort: Adaptive illumination minimizes eye strain.
Solid-State Electronics: Ensures silent operation and superior durability.
Remote Management: Compatible with multiple management systems.
Diagnostic Reporting: Offers comprehensive systems insights.
3-Year Factory Warranty: Assured reliability.
Specifications:
Decoding Capability: Supports 1D/Linear Codes, 2D Codes, and Image Capture.
Reading Performance:
Max Read Rate: 39 million pixels per second
Read Height: 14.0 cm / 5.5 in
Electrical:
AC Input: 100-240 VAC, 50-60 Hz
Power Consumption: Operating 3.6 Watts
Environmental:
Operating Temp: 10 to 40 °C / 50 to 104 °F
Sealing: IP52
Humidity: 5-95% Non-Condensing
Physical Characteristics:
Dimensions: 13.7 x 15.2 x 9.4 cm / 5.4 x 6.0 x 3.7 in
Weight: 0.6 kg / 1.3 lb
Datalogic M3450-010210 Barcode Scanner Overview
The Magellan 3450VSi scanner offers many of the features that have made the Magellan family of imaging scanners so successful, including seamless 1D and 2D decoding, solid state electronics, image capture, compact size and easy service access for software updates or configuration changes. It also benefits from the advances made in imaging, illumination, processors and software that Datalogic has brought to the multi-plane market with the Magellan 9800i and 9400i scanners.
Improvements in both hardware and software enable a significant reduction in the brightness of the illumination while improving throughput, depth of field, and speed to read. The gentle, unobtrusive illumination reduces both direct and reflected illumination visible to users. This ensures a comfortable work environment and all day productivity. The Magellan 3450VSi scanner also has a larger, more intuitive scan zone, enabling more comfortable and efficient sweep scanning.
What barcode types can the Datalogic M3450 scanner read?
The Datalogic Magellan 3450VSi reads both 1D linear codes (including GS1 DataBar) and 2D codes such as QR Code, Data Matrix, Aztec Code, and MaxiCode. It also decodes stacked codes including PDF417, MicroPDF417, and GS1 DataBar Composites, making it versatile for retail and logistics applications. This imaging technology enables reliable reading of truncated, out-of-spec, and poorly printed codes that traditional laser scanners struggle with.
What connectivity options does the M3450 barcode scanner support?
The M3450 offers multiple interface options including USB, RS-232, IBM 46xx, Keyboard Wedge, and OEM USB connections, along with powered RS-232 auxiliary ports. This multi-interface flexibility allows seamless integration into existing point-of-sale systems and retail environments. We offer the scanner with required cables and power accessories sold separately to match your specific setup.
Is the Datalogic M3450 suitable for high-volume retail environments?
Yes, the Magellan 3450VSi is specifically designed for high-volume point-of-sale applications with high-speed sweep and presentation scanning capabilities. The scanner delivers the speed and large field-of-view comparable to laser scanners while providing superior imaging performance on difficult barcodes. Its ergonomic design supports both scanning techniques to maximize checkout productivity and reduce operator fatigue.
What are the environmental operating conditions for the M3450 scanner?
The M3450 operates reliably in temperatures from 0 to 40°C (32 to 104°F) with humidity levels between 5-95% non-condensing, and ambient light conditions up to 86,100 lux. It features 25 kV ESD protection for durability in demanding retail environments. Storage and transport temperatures range from -40 to 70°C (-40 to 158°F), ensuring the scanner withstands various warehouse and logistics conditions.
Does the M3450 include mounting hardware for counter installation?
Yes, the Datalogic M3450 comes with a counter/wall mount included in the package, making installation straightforward in point-of-sale environments. However, required cables and power accessories are sold separately, so you'll need to specify your connection type when ordering. Contact us today to ensure you get the correct cable configuration for your POS system.
What power consumption and electrical requirements does the M3450 have?
The M3450 requires AC input of 90-264 VAC at 47-63 Hz with a maximum operating power consumption of 9.9 watts (nominal 2.8 watts). Sleep mode draws only 1.8 watts, making it energy-efficient for always-on retail environments. Visit barcodesinc.com to verify power supply compatibility with your existing infrastructure.
The Datalogic M3450-010210 Barcode Scanner is also known as
DTL-M3450010210
or M3450010210.
Full specifications (PDF)
