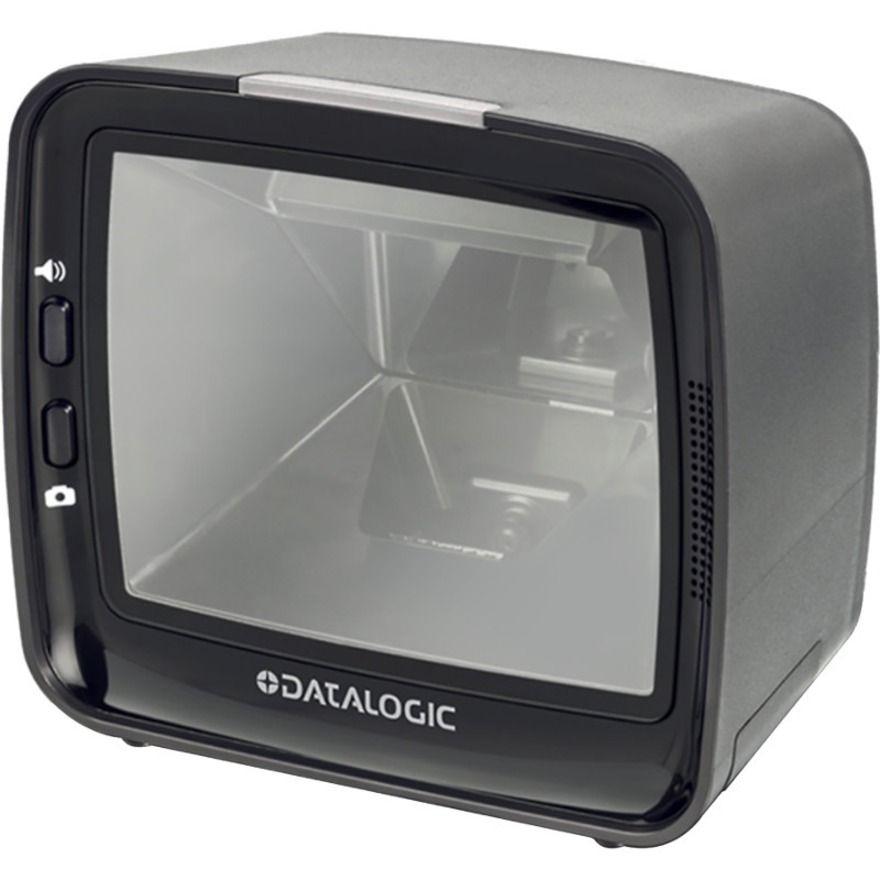

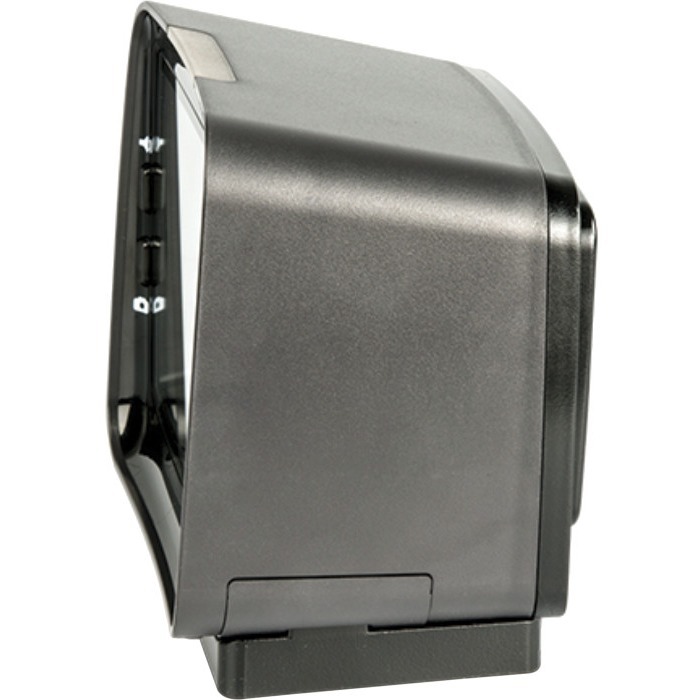

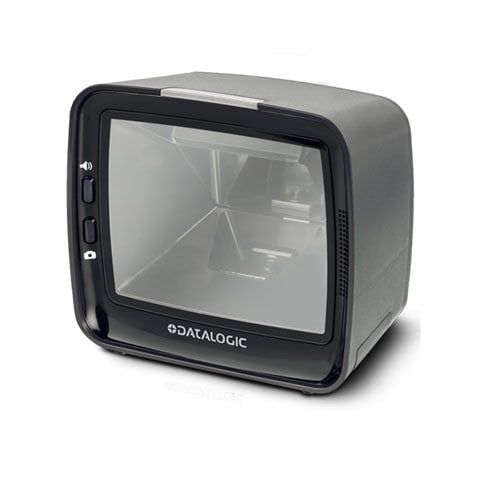

Datalogic Magellan 3450VSi Barcode Scanner Model Overview
The Magellan™ 3450VSi from Datalogic is the epitome of high-performance bar code scanning designed for high-volume point-of-sale environments. Engineered for speed and versatility, this advanced scanner excels in reading hard-to-scan barcodes, ensuring efficiency and accuracy in every transaction. With its dual scanning modes, the 3450VSi facilitates rapid operations while maintaining ergonomic functionality, enhancing the customer experience by reducing transaction times. Whether reading mobile coupons or standard printed barcodes, the Magellan 3450VSi stands out as a reliable choice for retailers. Key features:
Advanced Digital Imaging: Class-leading performance and reliability.
Seamless Reading: Effective for 1D, 2D, and Digimarc® digital watermark barcodes.
User Comfort: Adaptive illumination minimizes eye strain.
Solid-State Electronics: Ensures silent operation and superior durability.
Remote Management: Compatible with multiple management systems.
Diagnostic Reporting: Offers comprehensive systems insights.
3-Year Factory Warranty: Assured reliability.
Specifications:
Decoding Capability: Supports 1D/Linear Codes, 2D Codes, and Image Capture.
Reading Performance:
Max Read Rate: 39 million pixels per second
Read Height: 14.0 cm / 5.5 in
Electrical:
AC Input: 100-240 VAC, 50-60 Hz
Power Consumption: Operating 3.6 Watts
Environmental:
Operating Temp: 10 to 40 °C / 50 to 104 °F
Sealing: IP52
Humidity: 5-95% Non-Condensing
Physical Characteristics:
Dimensions: 13.7 x 15.2 x 9.4 cm / 5.4 x 6.0 x 3.7 in
The Magellan 3450VSi scanner offers many of the features that have made the Magellan family of imaging scanners so successful, including seamless 1D and 2D decoding, solid state electronics, image capture, compact size and easy service access for software updates or configuration changes. It also benefits from the advances made in imaging, illumination, processors and software that Datalogic has brought to the multi-plane market with the Magellan 9800i and 9400i scanners.
Improvements in both hardware and software enable a significant reduction in the brightness of the illumination while improving throughput, depth of field, and speed to read. The gentle, unobtrusive illumination reduces both direct and reflected illumination visible to users. This ensures a comfortable work environment and all day productivity. The Magellan 3450VSi scanner also has a larger, more intuitive scan zone, enabling more comfortable and efficient sweep scanning.
What barcode types does the Datalogic M3450 scanner read?
The Datalogic Magellan 3450VSi reads a comprehensive range of barcode formats including all standard 1D linear codes, 2D codes (Aztec, Data Matrix, QR Code, MaxiCode), and stacked codes (GS1 DataBar variants, PDF417, MicroPDF417). This versatility makes it ideal for high-volume retail environments where you encounter varied barcode qualities and formats. We offer this scanner with full technical support to ensure optimal performance across your product mix.
Is the Datalogic M3450 suitable for reading damaged or poorly printed barcodes?
Yes, the M3450VSi is specifically engineered to handle hard-to-read barcodes, including truncated (shortened), out-of-spec, and poorly printed codes. The 1280 x 1024 imaging sensor and advanced imaging technology provide the speed and large field-of-view traditionally associated with laser scanners while delivering superior performance on degraded codes. This makes it an excellent choice for high-volume point-of-sale environments where barcode quality varies. Contact us today to discuss your specific scanning challenges.
What connectivity options and interfaces does this scanner support?
The M3450 offers multiple interface options including USB, RS-232, IBM 46xx keyboard wedge, and OEM USB connectivity, making it compatible with most POS and retail systems. The scanner comes with a 4.5m (15ft) USB Type A cable and includes a power brick with EU cord. Available from us with flexible integration options to match your existing infrastructure.
What are the operating temperature and humidity ranges for the M3450?
The Datalogic M3450VSi operates reliably in temperatures from 0 to 40°C (32 to 104°F) and humidity levels of 5-95% non-condensing, with storage capability from -40 to 70°C (-40 to 158°F). The scanner also provides 25 kV ESD protection and handles ambient light conditions up to 86,100 lux, ensuring stable performance in diverse retail environments. These specifications make it suitable for most standard point-of-sale installations.
Can the M3450 be used in both sweep and presentation scanning modes?
Yes, the M3450VSi is designed to enable both high-speed sweep scanning and presentation scanning techniques, providing maximum flexibility for different checkout workflows and ergonomic preferences. This dual-mode capability ensures operators can choose the scanning method that best fits their speed and comfort requirements. The scanner's large field-of-view and imaging performance support both techniques seamlessly.
What mounting options and accessories are included with the M3450?
The Datalogic M3450 comes with a counter/wall mount and power brick with cord (EU standard), giving you flexible deployment options for in-counter or wall-mounted installations. The included 4.5m USB cable provides adequate reach for most point-of-sale configurations. Visit barcodesinc.com or contact us today for information about additional mounting solutions or accessories to customize your setup.
The Datalogic M3450-010210-07604 Barcode Scanner is also known as
DTL-M345001021007604
or M345001021007604.
Full specifications (PDF)
