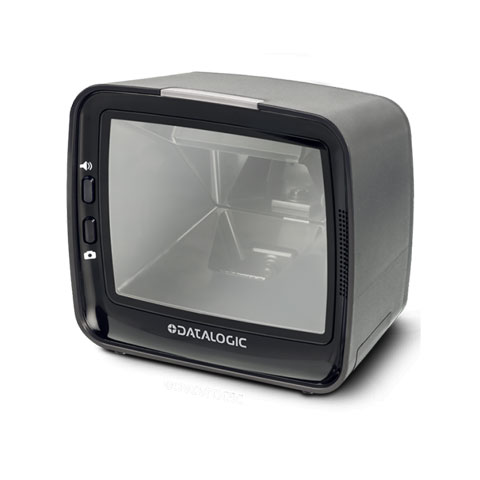

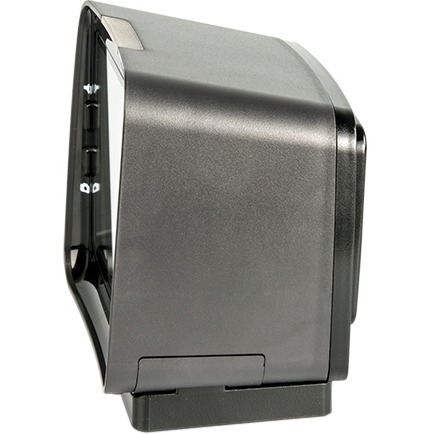

Datalogic Magellan 3450VSi Barcode Scanner Model Overview
The Magellan™ 3450VSi from Datalogic is the epitome of high-performance bar code scanning designed for high-volume point-of-sale environments. Engineered for speed and versatility, this advanced scanner excels in reading hard-to-scan barcodes, ensuring efficiency and accuracy in every transaction. With its dual scanning modes, the 3450VSi facilitates rapid operations while maintaining ergonomic functionality, enhancing the customer experience by reducing transaction times. Whether reading mobile coupons or standard printed barcodes, the Magellan 3450VSi stands out as a reliable choice for retailers. Key features:
Advanced Digital Imaging: Class-leading performance and reliability.
Seamless Reading: Effective for 1D, 2D, and Digimarc® digital watermark barcodes.
User Comfort: Adaptive illumination minimizes eye strain.
Solid-State Electronics: Ensures silent operation and superior durability.
Remote Management: Compatible with multiple management systems.
Diagnostic Reporting: Offers comprehensive systems insights.
3-Year Factory Warranty: Assured reliability.
Specifications:
Decoding Capability: Supports 1D/Linear Codes, 2D Codes, and Image Capture.
Reading Performance:
Max Read Rate: 39 million pixels per second
Read Height: 14.0 cm / 5.5 in
Electrical:
AC Input: 100-240 VAC, 50-60 Hz
Power Consumption: Operating 3.6 Watts
Environmental:
Operating Temp: 10 to 40 °C / 50 to 104 °F
Sealing: IP52
Humidity: 5-95% Non-Condensing
Physical Characteristics:
Dimensions: 13.7 x 15.2 x 9.4 cm / 5.4 x 6.0 x 3.7 in
ON-COUNTER HIGH PERFORMANCE BAR CODE READER The Magellan™ 3400VSi series of scanners continue the Datalogic tradition of high performance imaging for the highvolume point-of-sale. By duplicating the speed and large field-of-view of laser scanners and expanding the capabilities of imaging, the 3400VSi scanners provide outstanding performance on hard-toread bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques, ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
ENHANCING THE CUSTOMER EXPERIENCE The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
ENTERPRISE FEATURES Remote Management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
What barcode types does the Datalogic M3450 scanner read?
The Datalogic Magellan 3450VSi reads all standard 1D linear codes including GS1 DataBar, plus 2D codes such as QR Code, Data Matrix, Aztec Code, and MaxiCode. It also decodes stacked codes including GS1 DataBar Composites, PDF417, and MicroPDF417, making it versatile for retail and logistics environments. This broad decoding capability ensures compatibility with most barcode formats you'll encounter in high-volume point-of-sale operations.
Is the Datalogic M3450 suitable for reading damaged or poorly printed barcodes?
Yes, the M3450VSi is specifically designed to excel with hard-to-read barcodes, including truncated, out-of-spec, and poorly printed codes. Its 1280 x 1024 imaging sensor and advanced imaging technology enable reliable scanning even when barcode quality is compromised, reducing checkout delays and improving customer experience in high-volume retail settings.
What connectivity options are available for the Datalogic M3450?
The M3450VSi offers multiple interface options including USB, Keyboard Wedge, RS-232, IBM 46xx, and OEM USB connections, with a 4.5m/15ft USB Type A cable included. This flexibility allows seamless integration with various POS systems and retail environments without requiring additional adapters or specialized cabling.
Can the Datalogic M3450 be mounted under the counter?
Yes, the M3450VSi is designed for in-counter presentation scanning with a compact depth of 8.7cm (3.4 inches) below the counter surface. It includes a counter/wall mount, making it ideal for fixed point-of-sale installations where space is limited and ergonomic scanning is essential.
What are the environmental operating conditions for the Datalogic M3450?
The M3450VSi operates reliably in temperatures from 0 to 40°C (32 to 104°F) with humidity levels between 5-95% non-condensing, and can handle ambient light up to 86,100 lux. It also features 25 kV ESD protection, making it durable for demanding retail environments with significant temperature and humidity fluctuations.
Does the Datalogic M3450 support both sweep and presentation scanning?
Yes, the M3450VSi enables both high-speed sweep and presentation scanning techniques, duplicating the speed and large field-of-view performance of laser scanners while offering superior imaging capabilities. This flexibility allows operators to use their preferred scanning method while maintaining maximum productivity and ergonomic ease throughout the workday.
The Datalogic M3450-010210-01604 Barcode Scanner is also known as
DTL-M345001021001604
or M345001021001604.
