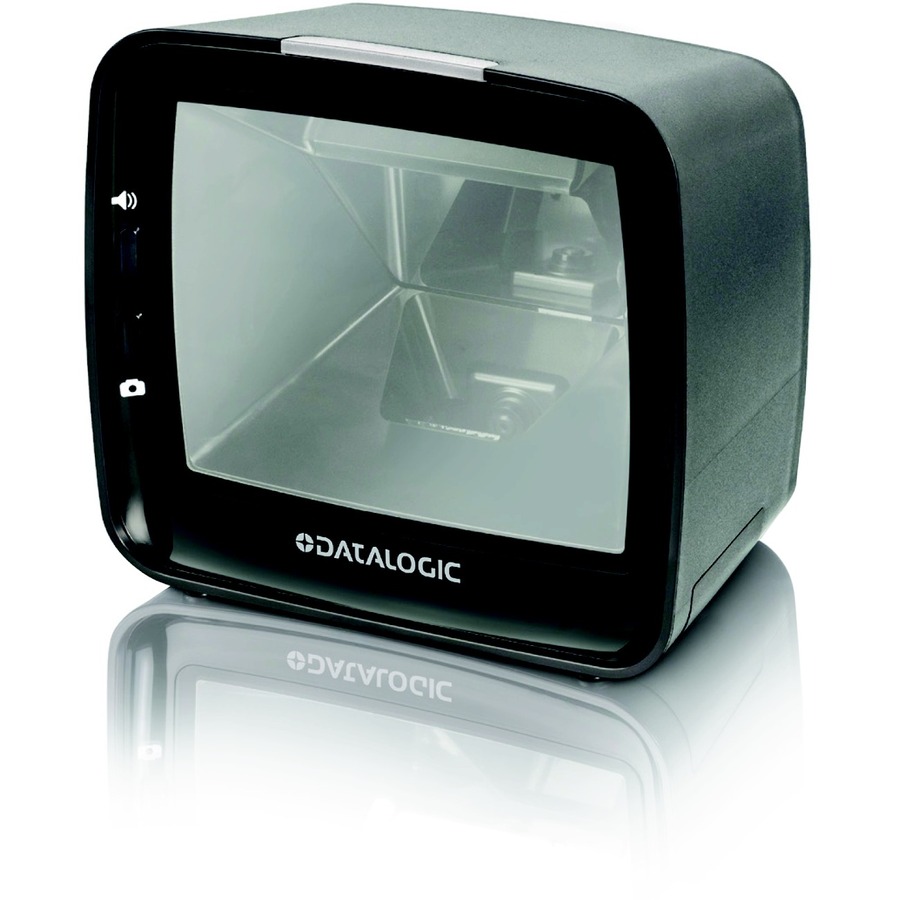

Datalogic Magellan 3450VSi Barcode Scanner Model Overview
The Magellan™ 3450VSi from Datalogic is the epitome of high-performance bar code scanning designed for high-volume point-of-sale environments. Engineered for speed and versatility, this advanced scanner excels in reading hard-to-scan barcodes, ensuring efficiency and accuracy in every transaction. With its dual scanning modes, the 3450VSi facilitates rapid operations while maintaining ergonomic functionality, enhancing the customer experience by reducing transaction times. Whether reading mobile coupons or standard printed barcodes, the Magellan 3450VSi stands out as a reliable choice for retailers. Key features:
Advanced Digital Imaging: Class-leading performance and reliability.
Seamless Reading: Effective for 1D, 2D, and Digimarc® digital watermark barcodes.
User Comfort: Adaptive illumination minimizes eye strain.
Solid-State Electronics: Ensures silent operation and superior durability.
Remote Management: Compatible with multiple management systems.
Diagnostic Reporting: Offers comprehensive systems insights.
3-Year Factory Warranty: Assured reliability.
Specifications:
Decoding Capability: Supports 1D/Linear Codes, 2D Codes, and Image Capture.
Reading Performance:
Max Read Rate: 39 million pixels per second
Read Height: 14.0 cm / 5.5 in
Electrical:
AC Input: 100-240 VAC, 50-60 Hz
Power Consumption: Operating 3.6 Watts
Environmental:
Operating Temp: 10 to 40 °C / 50 to 104 °F
Sealing: IP52
Humidity: 5-95% Non-Condensing
Physical Characteristics:
Dimensions: 13.7 x 15.2 x 9.4 cm / 5.4 x 6.0 x 3.7 in

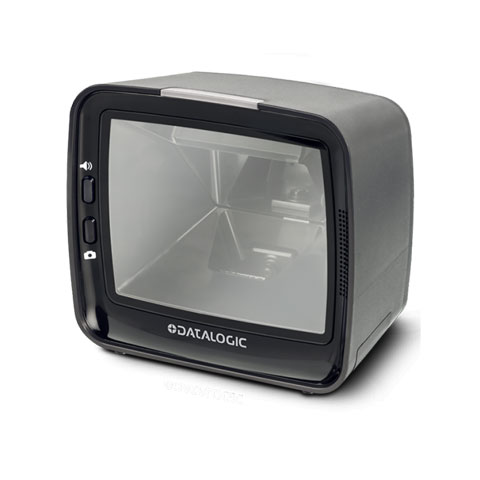

ON-COUNTER HIGH PERFORMANCE BAR CODE READER The Magellan™ 3400VSi series of scanners continue the Datalogic tradition of high performance imaging for the highvolume point-of-sale. By duplicating the speed and large field-of-view of laser scanners and expanding the capabilities of imaging, the 3400VSi scanners provide outstanding performance on hard-toread bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques, ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
ENHANCING THE CUSTOMER EXPERIENCE The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
ENTERPRISE FEATURES Remote Management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
What barcode types can the Datalogic M3450 scanner read?
The Datalogic Magellan 3450VSi reads both 1D linear codes (including GS1 DataBar) and 2D codes such as QR Code, Data Matrix, Aztec Code, and MaxiCode. It also decodes stacked codes like PDF417, MicroPDF417, and GS1 DataBar Composites, making it versatile for high-volume point-of-sale environments where you encounter a wide variety of barcode formats.
Is the M3450 scanner suitable for reading damaged or poorly printed barcodes?
Yes, the M3450VSi is specifically designed to handle hard-to-read barcodes, including truncated (shortened), out-of-spec, and poorly printed codes. Its advanced imaging technology provides outstanding performance on challenging barcode conditions while maintaining high-speed scanning capabilities for standard codes.
What connectivity options does the Datalogic M3450 offer?
The M3450VSi supports multiple interface options including USB, RS-232, Keyboard Wedge, and IBM 46xx connectivity. It comes with a USB cable included and features a powered RS-232 auxiliary port, giving you flexibility to integrate it into various point-of-sale and retail systems.
Can the M3450 scanner operate in bright retail environments?
Yes, the M3450VSi is rated to operate in ambient light conditions from 0 to 86,100 lux, which covers typical retail and warehouse environments including bright fluorescent and natural lighting. This wide light tolerance ensures reliable scanning performance regardless of your store's lighting conditions.
What are the scanning modes supported by the M3450VSi?
The M3450VSi supports both presentation and sweep scanning techniques, allowing operators to either hold items up to the scanner or swipe barcodes across it. This dual-mode capability ensures maximum productivity and ergonomic ease, reducing operator fatigue during high-volume scanning operations.
Where can I purchase the Datalogic M3450 barcode scanner?
We offer the Datalogic M3450-010200-00403 Magellan 3450VSi scanner with full technical support and competitive pricing. Visit barcodesinc.com to view specifications, check availability, or contact us today for volume pricing and integration assistance with your existing retail or warehouse systems.
The Datalogic M3450-010200-00403 Barcode Scanner is also known as
M345001020000403
Full specifications (PDF)
