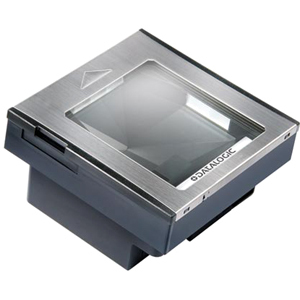

Datalogic M3303-010100 Barcode Scanner

The Datalogic M3303-010100 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic Magellan 3300HSi - Datalogic Magellan 3300HSi In-Counter Bar Code Reader - Cable Connectivity - 4" Scan Distance - 1D - Laser - Imager - Omni-directional - USB, Serial, IBM 46XX, Keyboard Wedge
  • Creates a high ROI because of diminishment in workforce and descend inventory errors
  • Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Laser scan engine guarantees rapid error free data entry
  • Perfect for applications that require direct association with a workstation or a notebook
Read More
Discontinued Need Assistance?
Add to Quote

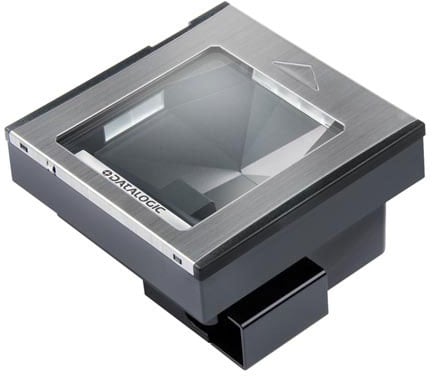

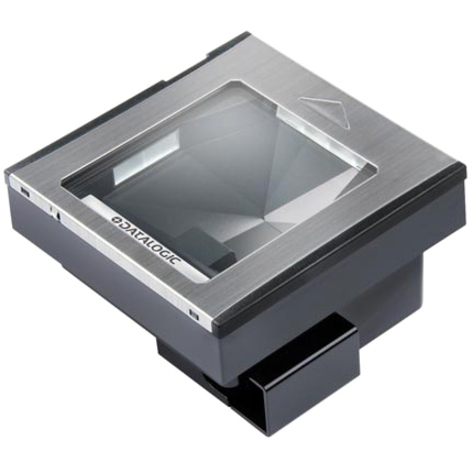

Datalogic Magellan 3300HSi Barcode Scanner Model Overview
The Datalogic Magellan 3300HSi imager achieves new levels of product reliability by utilizing a solid-state design that does not require the use of laser modules or spinning motors, ensuring years of worry-free operation. Unique features include high performance imaging technology which enables the ability to read both linear and 2D barcodes as well as perform image capture duties. The Magellan 3300HSi also features multiple interfaces in every unit and an RS-232 auxiliary port for attaching a hand-held scanner. A Micro-SD card reader helps with software management, upgrading, and maintenance. Because most of the Magellan 3300HSi scanner features are software based, new capabilities are simple to add, even after the initial installation, increasing the useful life of the scanner and protecting your company's technology investment over time.
Datalogic M3303-010100 Barcode Scanner Overview

The Magellan 3300HSi bar code reader brings Datalogic's new imaging technology to the high-volume point-of-sale. Along with the 3200VSi vertical reader, they are the first bar code scanners to duplicate the speed and wide field-of-view of high-performance omnidirectional laser scanners while adding the benefits associated with imaging. This imaging technology provides outstanding performance when capturing hard-to-read bar codes such as truncated (short), out-of-spec, poorly printed and GS1 DataBar codes, and provides support for both linear (1D) and 2D label decoding. The Magellan 3300HSi imager enables both sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linear Codes

Stacked Codes:

  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MicroPDF417
  • PDF417
Light Source:
Laser
Image Sensor Type:
Imager
Maximum Scan Resolution:
5 mil
Scan Pattern:
Omni-directional
Scanning Distance:
4"
Interfaces/Ports
Host Interface:
  • USB
  • Serial
  • IBM 46XX
  • Keyboard Wedge
Physical Characteristics
Form Factor:
In-counter
Height:
6"
Width:
6"
Depth:
3.4"
Weight (Approximate):
1.74 lb
Miscellaneous
Additional Information:

USB Cable separate

Item Numbers
GTIN: 4054318747801
EAN: 4054318747801
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic M3303-010100 Barcode Scanner is also known as DTL-M3303010100 or M3303010100.
