Datalogic M3301-010210-01604 Barcode Scanner

The Datalogic M3301-010210-01604 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic Magellan 3300HSi - Corded In-Counter Barcode Scanner, Datalogic Magellan 3300HSi, 2D Imager/Omnidirectional, Laser, General Purpose, Sapphire Glass, USB/Keyboard Wedge Connection, USB Type A 4.5m/15ft Cable Included, Black/Silver, 4in Scan Distance. Includes: Standard Counter Mount, Power Brick/Cord (US)
  • Creates a high ROI because of diminishment in workforce and descend inventory errors
  • Allows productive and precise reading of 1D barcodes
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Laser scan engine guarantees rapid error free data entry
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More
Discontinued Need Assistance?
Add to Quote

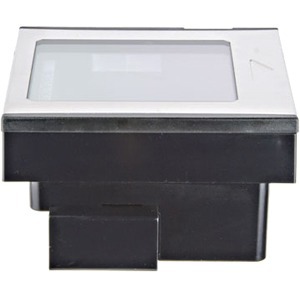

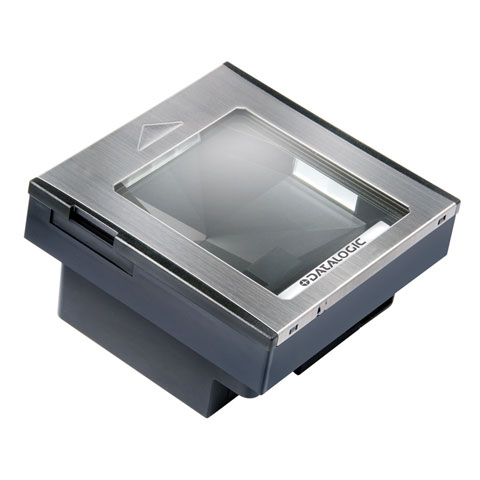

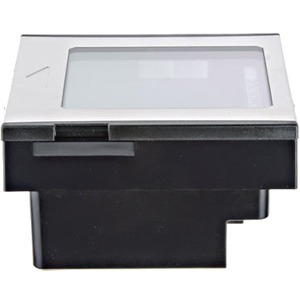

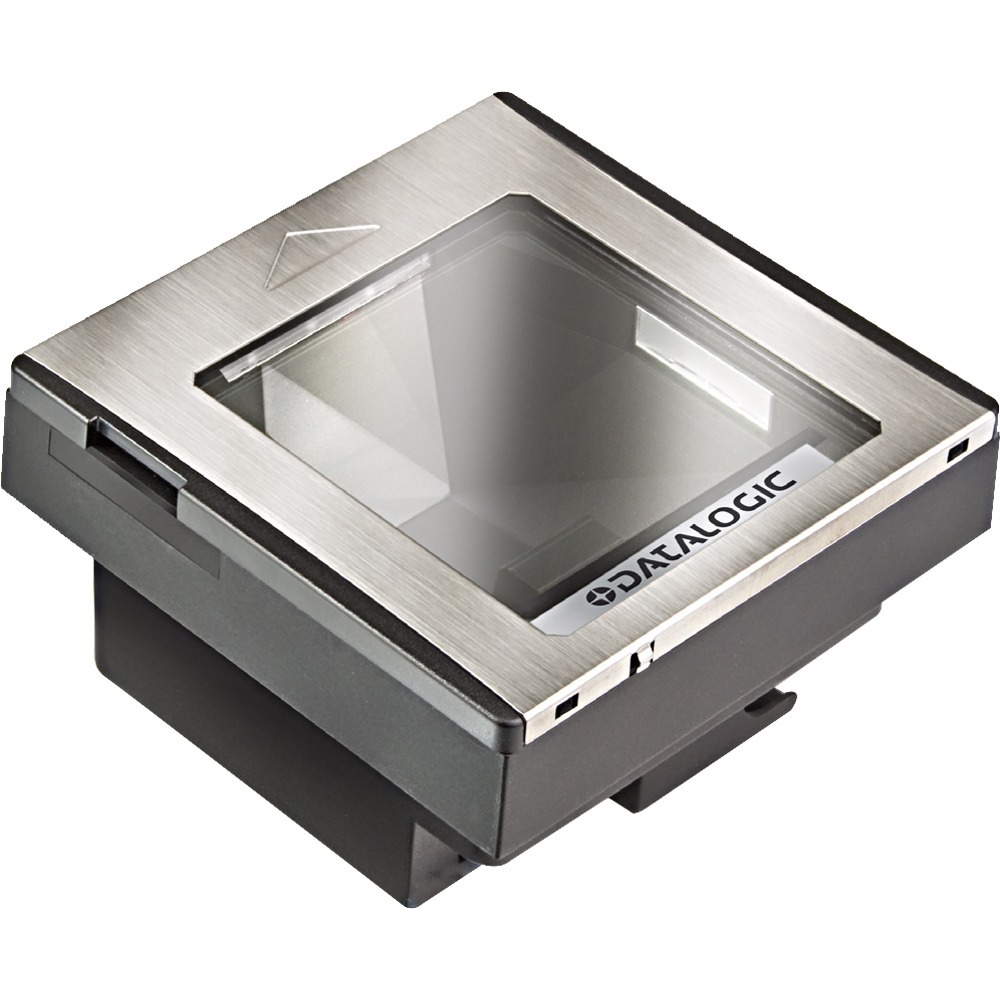

Datalogic Magellan 3300HSi Barcode Scanner Model Overview
The Datalogic Magellan 3300HSi imager achieves new levels of product reliability by utilizing a solid-state design that does not require the use of laser modules or spinning motors, ensuring years of worry-free operation. Unique features include high performance imaging technology which enables the ability to read both linear and 2D barcodes as well as perform image capture duties. The Magellan 3300HSi also features multiple interfaces in every unit and an RS-232 auxiliary port for attaching a hand-held scanner. A Micro-SD card reader helps with software management, upgrading, and maintenance. Because most of the Magellan 3300HSi scanner features are software based, new capabilities are simple to add, even after the initial installation, increasing the useful life of the scanner and protecting your company's technology investment over time.
Datalogic M3301-010210-01604 Barcode Scanner Overview

The Magellan 3300HSi bar code reader brings Datalogic's new imaging technology to the high-volume point-of-sale. Along with the 3200VSi vertical reader, they are the frst bar code scanners to duplicate the speed and wide feld-of-view of high-performance omnidirectional laser scanners while adding the benefts associated with imaging. This imaging technology provides outstanding performance when capturing hard-to-read bar codes such as truncated (short), out-of-spec, poorly printed and GS1 DataBar codes, and provides support for both linear (1D) and 2D label decoding.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

2D Codes:

  • Aztec Code
  • Data Matrix (ECC200 Only)
  • MaxiCode
  • QR Code

Stacked Codes:

  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MicroPDF417
  • PDF417
Light Source:
Laser
Image Sensor Type:
Imager
Maximum Scan Resolution:
5 mil
Scan Pattern:
Omni-directional
Scanning Distance:
4"
Interfaces/Ports
Host Interface:
  • USB
  • Keyboard Wedge
Physical Characteristics
Form Factor:
In-counter
Height:
6"
Width:
6"
Depth:
3.4"
Weight (Approximate):
1.75 lb
Miscellaneous
Package Contents:
  • Magellan 3300HSi In-Counter Bar Code Reader
  • Sapphire Glass
  • Counter/Wall Mount
  • Power Brick/Cord
  • 15 ft Cable
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Country of Origin:
Vietnam
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0682017493534, 0778889870891, 0783555018620
UPC: 682017493534, 778889870891, 783555018620
EAN: 0682017493534, 0778889870891, 0783555018620
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic M3301-010210-01604 Barcode Scanner is also known as DTL-M330101021001604 or M330101021001604.
