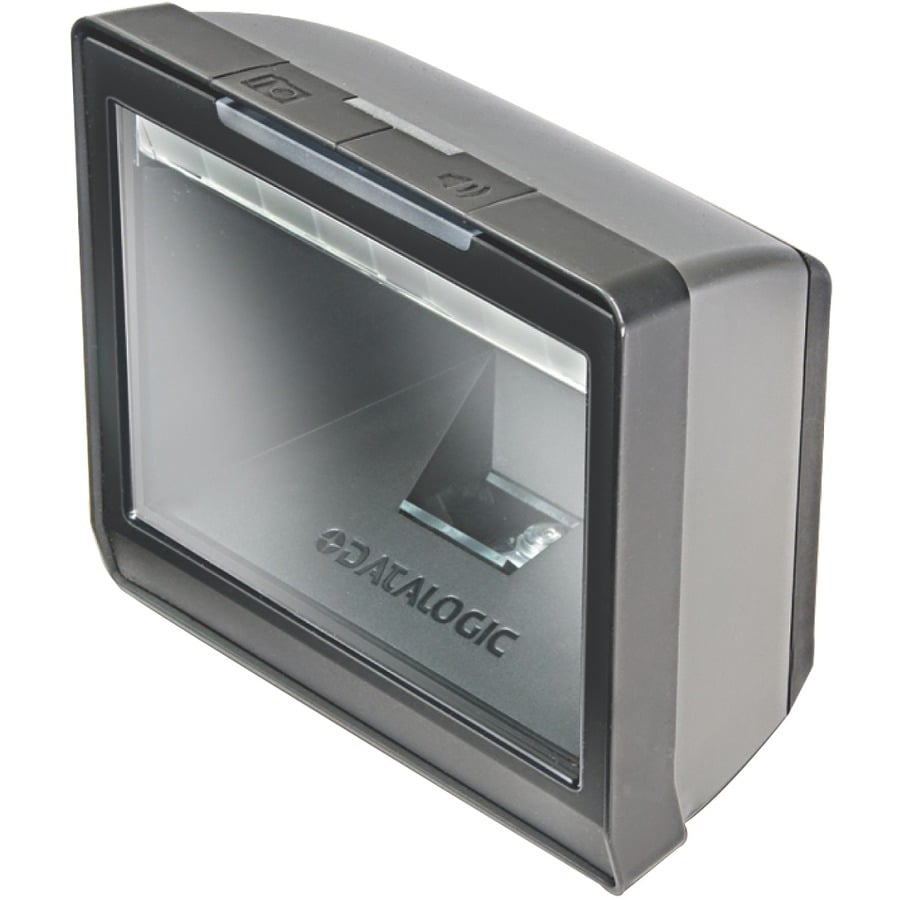

Datalogic Magellan 3200VSi – Barcode Scanner – 1D

Part Number: M3200-010200-07604
Model: Magellan 3200VSi
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D
Scanner Type
Imager

Product Description:

  Datalogic Magellan 3200VSi Desktop Bar Code Reader - Cable Connectivity - 5.50" Scan Distance - 1D, 2D - Laser - Imager - Omni-directional - Keyboard Wedge
Explore all Datalogic Magellan 3200VSi Barcode Scanners
Add to Quote
Datalogic M3200-010200-07604 Barcode Scanner
Datalogic M3200-010200-07604 Barcode Scanner
Datalogic M3200-010200-07604 Barcode Scanner
Datalogic M3200-010200-07604 Barcode Scanner
Datalogic M3200-010200-07604 Barcode Scanner
Datalogic M3200-010200-07604 Barcode Scanner
Datalogic M3200-010200-07604 Barcode Scanner Datalogic M3200-010200-07604 Barcode Scanner Datalogic M3200-010200-07604 Barcode Scanner Datalogic M3200-010200-07604 Barcode Scanner Datalogic M3200-010200-07604 Barcode Scanner Datalogic M3200-010200-07604 Barcode Scanner
Full specifications (PDF)

Datalogic Magellan 3200VSi Barcode Scanner Model Overview

The Datalogic Magellan 3200VSi barcode reader brings Datalogic's imaging technology to the high-volume point-of-sale. It is the first barcode scanner to duplicate the speed and wide field-of-view of high-performance omnidirectional laser scanners while adding the benefits associated with imaging. This imaging technology provides outstanding performance when capturing hard-to-read barcodes such as truncated (short), out-of-spec, poorly printed and GS1 DataBar codes, and provides support for both linear (1D) and 2D label decoding. The Magellan 3200VSi imager enables both sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease.
Datalogic M3200-010200-07604 Barcode Scanner Overview

The Magellan 3200VSi bar code reader brings Datalogic's new imaging technology to the high-volume point-of-sale. It is the first bar code scanner to duplicate the speed and wide field-of-view of high-performance omnidirectional laser scanners while adding the benefits associated with imaging. This imaging technology provides outstanding performance when capturing hard-to-read bar codes such as truncated (short), out-of-spec, poorly printed and GS1 DataBar codes, and provides support for both linear (1D) and 2D label decoding. The Magellan 3200VSi imager enables both sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

2D Codes:

  • Aztec Code
  • Data Matrix
  • ECC200 Only
  • MaxiCode
  • QR Code

Stacked Codes:

  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MicroPDF417
  • PDF417
Light Source:
Laser
Image Sensor Type:
Imager
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0.5" - 2.5"@5mil
  • 0.5" - 4.5"@7.5mil
  • 0" - 6.0"@10mil
  • 0" - 8.0"@13mil
  • 0" - 9.0"@20mil
Scan Pattern:
Omni-directional
Scanning Distance:
5.50"
Interfaces/Ports
Host Interface:
Keyboard Wedge
Physical Characteristics
Form Factor:
Desktop
Height:
5.6"
Width:
3.2"
Depth:
6"
Weight (Approximate):
1.30 lb
Miscellaneous
Package Contents:
  • Magellan 3200VSi Desktop Bar Code Reader
  • USB Type A 15ft Cable
  • Standard Back Cover
  • Power Brick/Cord
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 4054318291137, 5712505791615
EAN: 4054318291137, 5712505791615
UNSPSC: 43211701
