Datalogic M3200-010100-01104 Barcode Scanner

Datalogic M3410-010210-01104 Barcode Scanner A newer version of this item is available.
It is replaced by the Datalogic M3410-010210-01104 Barcode Scanner.

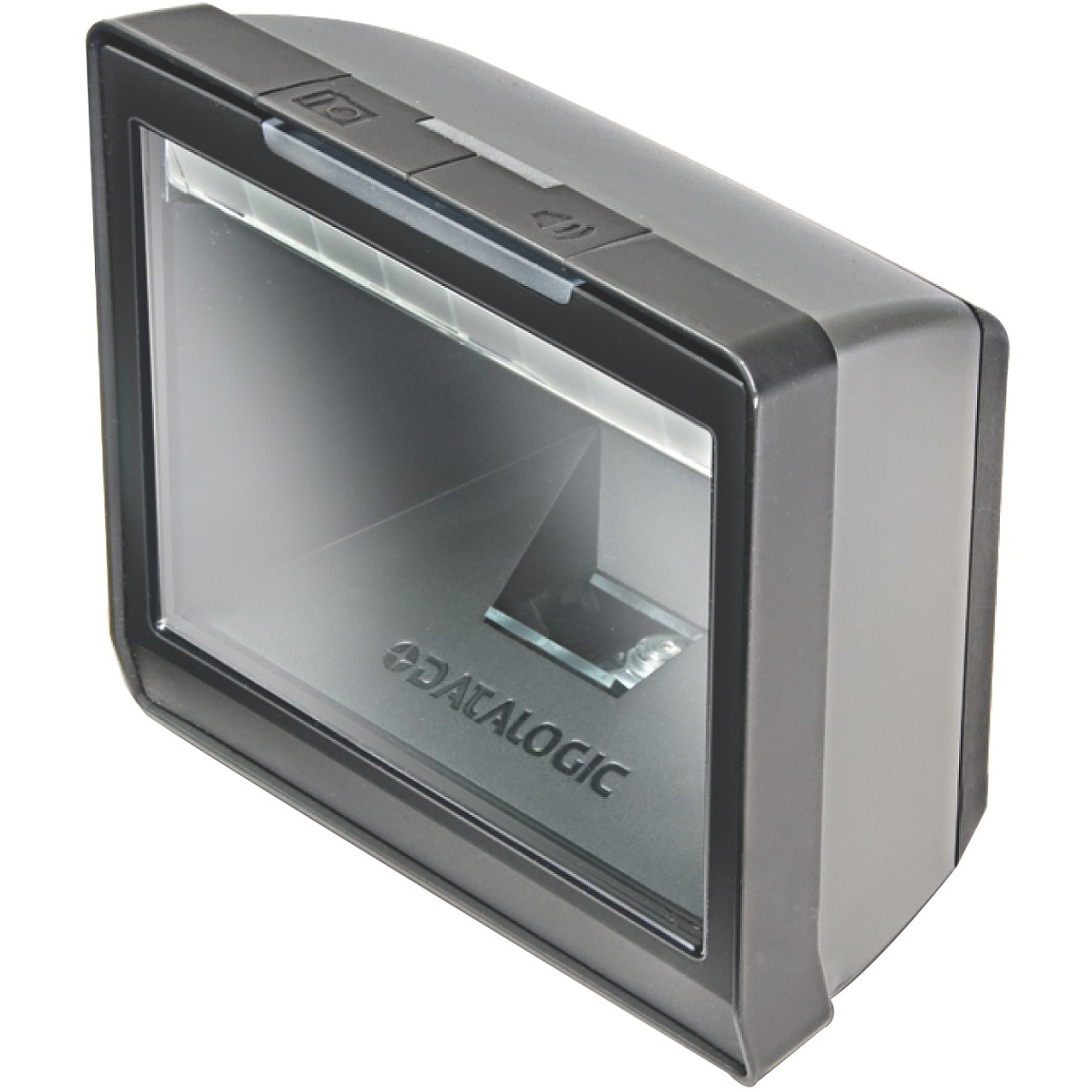

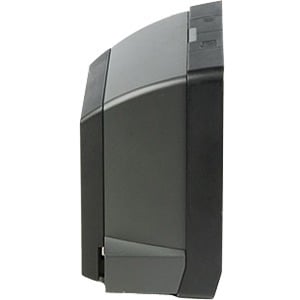

Datalogic Magellan 3200VSi - Corded Presentation Barcode Scanner, Datalogic Magellan 3200VSi, 1D Omnidirectional Laser, General Purpose, RS-232 Serial Connection, PC DB9 4.5m/15ft Ext. Power Cable Included, Black/Silver, 5.50in Scan Distance. Includes: Standard Back Cover, Power Brick/Cord (US)
  • Creates a high ROI because of diminishment in workforce and descend inventory errors
  • Allows productive and precise reading of 1D barcodes
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Read More
Discontinued See Replacement
Add to Quote

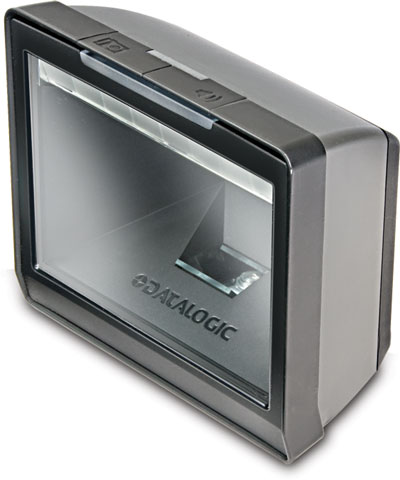

Datalogic Magellan 3200VSi Barcode Scanner Model Overview
The Datalogic Magellan 3200VSi barcode reader brings Datalogic's imaging technology to the high-volume point-of-sale. It is the first barcode scanner to duplicate the speed and wide field-of-view of high-performance omnidirectional laser scanners while adding the benefits associated with imaging. This imaging technology provides outstanding performance when capturing hard-to-read barcodes such as truncated (short), out-of-spec, poorly printed and GS1 DataBar codes, and provides support for both linear (1D) and 2D label decoding. The Magellan 3200VSi imager enables both sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease.
Datalogic M3200-010100-01104 Barcode Scanner Overview

The Magellan 3200VSi bar code reader brings Datalogic's new imaging technology to the high-volume point-of-sale. It is the first bar code scanner to duplicate the speed and wide field-of-view of high-performance omnidirectional laser scanners while adding the benefits associated with imaging. This imaging technology provides outstanding performance when capturing hard-to-read bar codes such as truncated (short), out-of-spec, poorly printed and GS1 DataBar codes, and provides support for both linear (1D) and 2D label decoding. The Magellan 3200VSi imager enables both sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes

2D Codes:

  • Aztec Code
  • Data Matrix
  • ECC200 Only
  • MaxiCode
  • QR Code

Stacked Codes:

  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MicroPDF417
  • PDF417
Light Source:
Laser
Image Sensor Type:
Imager
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0.5" - 2.5"@5mil
  • 0.5" - 4.5"@7.5mil
  • 0" - 6.0"@10mil
  • 0" - 8.0"@13mil
  • 0" - 9.0"@20mil
Scan Pattern:
Omni-directional
Scanning Distance:
5.50"
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Form Factor:
Desktop
Height:
5.6"
Width:
3.2"
Depth:
6"
Weight (Approximate):
1.30 lb
Miscellaneous
Package Contents:
  • Magellan 3200VSi Desktop Bar Code Reader
  • PC DB9 15ft Cable
  • Standard Back Cover
  • Power Brick/Cord
Additional Information:

USB Cable separate

Platform Supported:
PC
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0015011847100
UPC: 015011847100
EAN: 0015011847100
UNSPSC: 43211701
