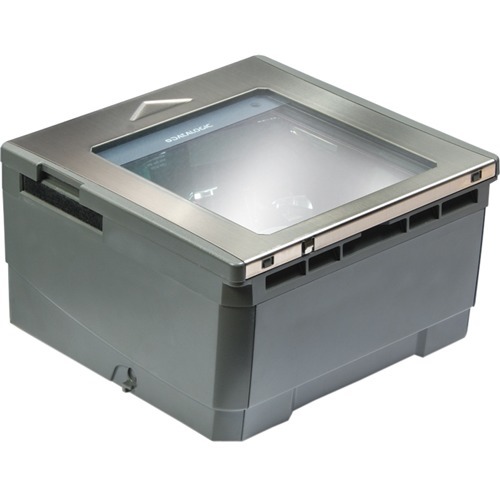

Datalogic M230B-00101-00000R Barcode Scanner

Datalogic Magellan 2300HS - Horizontal Scanner, 1D Laser Scanner, Multi-Interface, Sapphire Glass, Standard Counter Mount, Interface Cable and Power supply Sold Separately.
Unparalleled Point-of-Sale Horizontal Scanning

The Datalogic Magellan 2300HS uses Magellan 8500 Series scanning technology to create one of the quickest and easiest-to-use horizontal scanners in the industry. The Magellan 2300HS features a large, dense scanning pattern to improve both checkout speed and operator ergonomics. The Magellan 2300HS supports all popular barcode symbologies including RSS. With the ability to upgrade the system software via flash memory, diagnostic reporting, the Productivity Index Reporting software and FirstStrike decoding, the Magellan 2300HS will be a productive part of any enterprise for years to come.

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Single Line
  • Connectivity Technology: Cable
  • Scanning Distance: 6"
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional

General Information

  • Product Type: In-counter Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: 2300HS
  • Product Name: Magellan 2300HS In-Counter Barcode Reader
  • Product Line: Magellan

Physical Characteristics

  • Height: 6"
  • Width: 3.4"
  • Depth: 6"
  • Weight (Approximate): 2.50 lb

Interfaces/Ports

  • Host Interface:
    • Keyboard Wedge
    • Powered USB
    • Serial
    • USB
    • IBM 46XX

Full specifications (PDF)

Full specifications (PDF)

Brand Datalogic
Model Magellan 2300HS
Scanner Type Laser
Color Gray
Scanner Capability 1D
Form Factor In Counter
Ruggedness General Purpose
Glass Type Sapphire
Recommended Accessories for Model: Datalogic Magellan 2300HS Scanner
Datalogic (8-0732-04)
Cable, 15 ft, USB Type A
In Stock: Ships Same Day
$22.60
+ Add to Quote
Datalogic (11-0178)
Counter Mount (for the Magellan 2300HS, HS1250 and 3300HSi)
In Stock: Ships Same Day
$61.60
+ Add to Quote
Datalogic (CAB-461)
Cable (3.6 meters, RS-232 RJ10 Aux Port, Coiled) for the Magellan
Ships in 3-5 Days
$38.40
+ Add to Quote
Datalogic (8-0735-01)
Cable, 15 ft, Keyboard wedge, IBM AT / PS/2, 5/6-pin Din
Ships in 3-5 Days
$38.20
+ Add to Quote
Datalogic (8-0730-30)
RS-232, 9D for SNI Beetle, POT, 15' (4.5m).
Ships in 3-5 Days
$22.30
+ Add to Quote
Protect Your Product
Datalogic Service Contract - 3 year (W-MGL2300HS-3)
Magellan 2300HS, Ease of Care 2 Days Comprehensive
Ships in 3-5 Days
$61.00
+ Add to Quote

The Datalogic M230B-00101-00000R is also known as Data Logic DTL-M230B0010100000R or M230B0010100000R .
