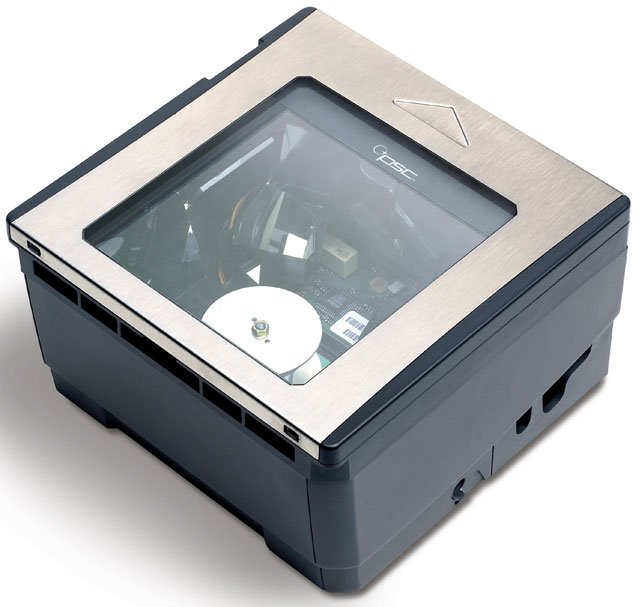

Datalogic M2303-00111-0302 Barcode Scanner

The Datalogic M2303-00111-0302 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic Magellan 2300HS - Horizontal Scanner, 46XX, TO, N, US, Standard, 4P and N.
  • Creates a high ROI because of diminishment in workforce and descend inventory errors
  • Perfect for applications that require direct association with a workstation or a notebook
Read More
Discontinued Need Assistance?
Add to Quote
Datalogic Magellan 2300HS Barcode Scanner Model Overview
The Datalogic Magellan 2300HS uses Magellan 8500 Series scanning technology to create one of the quickest and easiest-to-use horizontal scanners in the industry. The Magellan 2300HS features a large, dense scanning pattern to improve both checkout speed and operator ergonomics. The Magellan 2300HS supports all popular barcode symbologies including RSS. With the ability to upgrade the system software via flash memory, diagnostic reporting, the Productivity Index Reporting software and FirstStrike decoding, the Magellan 2300HS will be a productive part of any enterprise for years to come.
Datalogic M2303-00111-0302 Barcode Scanner Overview

The Magellan 2300HS Bar Code Reader from PSC is designed using Magellan 8000 series technology to specifically optimize performance for medium to high throughput horizontal applications in grocery, drug, department and general retail environments. Unlike competitive horizontal scanners, the Magellan 2300HS Bar Code Reader offers category leading scanning performance, unique value added software features like Productivity Index Reporting, and advanced FirstStrike decoding software. And because it's based on the Magellan platform, it does so much more. It offers flash memory for easy software upgrades, supports host diagnostic reporting, and meets all of the Sunrise 2005 initiatives. The Magellan 2300HS Bar Code Reader also supports the most popular symbologies including support for RSS.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • UPC Supplementals
  • UPC Add-ons
  • UPC Bookland
  • UPC Coupon Code
  • RSS-14 Stacked
  • RSS-14 Expanded
  • EAN-8
  • EAN-13
  • JAN-8
  • JAN-13
  • EAN/JAN Two Label
  • UCC/EAN 128
  • Code 39 Full ASCII
  • Code 128
  • Code 93
  • Italian Pharmacode
  • Standard 2 of 5
  • Codabar (NW7)
  • MSI/PLESSEY
Depth of Field:
  • 6"
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Power Supply Included:
Yes
Physical Characteristics
Form Factor:
In-counter
Height:
6"
Width:
6"
Depth:
3.4"
Weight (Approximate):
2.50 lb
Miscellaneous
Package Contents:
  • Magellan 2300HS Bar Code Reader
  • IBM Port 9B 15FT Cable
  • Tin Oxide Glass Mount
  • Power Supply
Additional Information:

Supported Interfaces:

  • Serial
  • IBM 46XX
  • USB
  • Certifications & Standards:

    Electrical:

    • EN60 950 (TÜV Europe)
    • PSE-Mark (Japan); UL 60950 (USA)
    • CSA 60950 (Canada)

    Emissions:

    • CISPR22-B (World)
    • FCC part 15 Class B (USA)
    • VCCI-B (Japan)
    • EN 55022-B (Europe)
    • NOM (Mexico)

    Laser Safety:

    • CDRH Class IIa (USA/Canada)
    • EN 60825-1 Class 1(Europe)
    • IEC 60825-1 Class 1 (World) (CAUTION: Laser Radiation - do not stare into beam)
    • IEC 60825 Class 1 (Europe)
    Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    1 Year
    Item Numbers
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Datalogic M2303-00111-0302 Barcode Scanner is also known as PSC-M2303001110302
