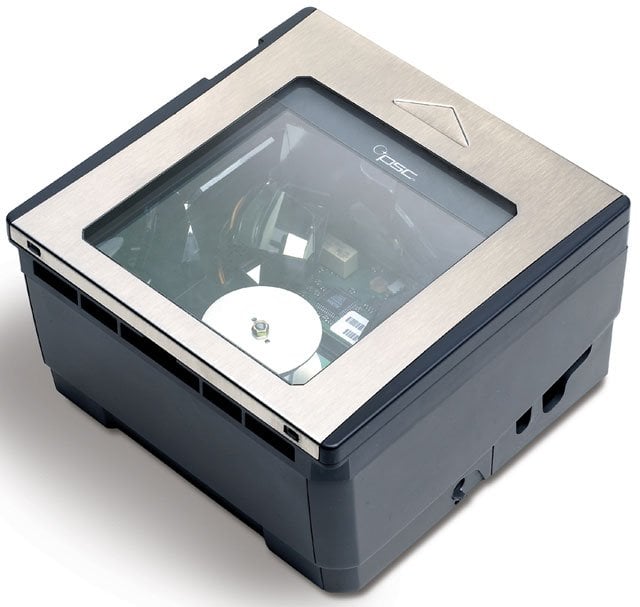

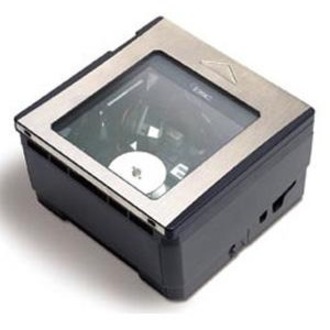

Datalogic Magellan 2300HS – Barcode Scanner – 1D

Part Number: M2302-00110-0104A

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Magellan 2300HS Horizontal Scanner (RS232, DLC, US Power Supply, Cable #8-0227-04 and RSS Enabled)

Datalogic Magellan 2300HS Barcode Scanner Model Overview

The Datalogic Magellan 2300HS uses Magellan 8500 Series scanning technology to create one of the quickest and easiest-to-use horizontal scanners in the industry. The Magellan 2300HS features a large, dense scanning pattern to improve both checkout speed and operator ergonomics. The Magellan 2300HS supports all popular barcode symbologies including RSS. With the ability to upgrade the system software via flash memory, diagnostic reporting, the Productivity Index Reporting software and FirstStrike decoding, the Magellan 2300HS will be a productive part of any enterprise for years to come.
Datalogic M2302-00110-0104A Barcode Scanner Overview

Magellan 2300HS features OmegaTek Productivity Technology comprised of hardware and software innovations that significantly improve scanner performance by improving the first pass read rates on hard-to-read bar codes. The Magellan 2300HS offers best-in-class horizontal scanning performance and software for improving POS productivity. With these and other great features, plus a very economical price-point, the Magellan 2300HS is the choice for horizontal single-plane POS scanning.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • UPC Versions A&E
  • UPC Supplementals (Bookland & Coupon Code)
  • UPC Add-on sub 2 or P2
  • UPC Add-on C128
  • UPC Add-on sub 5 or P5
  • RSS-Stacked
  • EAN-8
  • EAN-13
  • JAN-8
  • JAN-13
  • EAN/JAN Two Label
  • UCC/EAN 128
  • Code 39 Full ASCII
  • Code 128
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Italian Pharmacode
  • Codabar (NW7)
  • MSI/PLESSEY
  • RSS-14
  • RSS-Expanded
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Form Factor:
In-counter
Height:
6"
Width:
6"
Depth:
3.4"
Weight (Approximate):
2.50 lb
Miscellaneous
Additional Information:

Supported Interfaces:

  • Standard RS-232
  • IBM 46XX
  • IBM USB
  • USB Keyboard
  • Keyboard Wedge
  • Other: Powered RS-232 auxiliary port

USB Cable separate

Certifications & Standards:

Electrical:

  • EN60 950
  • PSE-Mark
  • UL60950
  • CSA 60950

Emissions:

  • CISPR22-B
  • FCC part 15 Class B
  • VCCI-B
  • EN 55022-B
  • NOM

Laser Safety:

  • CDRH Class IIa
  • EN 60825-1 Class 1
  • IEC 60825-1 Class 1
  • IEC 60825 Class 1
  • Restriction of Hazardous Substances:
  • EU RoHS
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211701
