Datalogic Magellan 2300HS – Barcode Scanner – 1D

Part Number: M23-011
Model: Magellan 2300HS

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

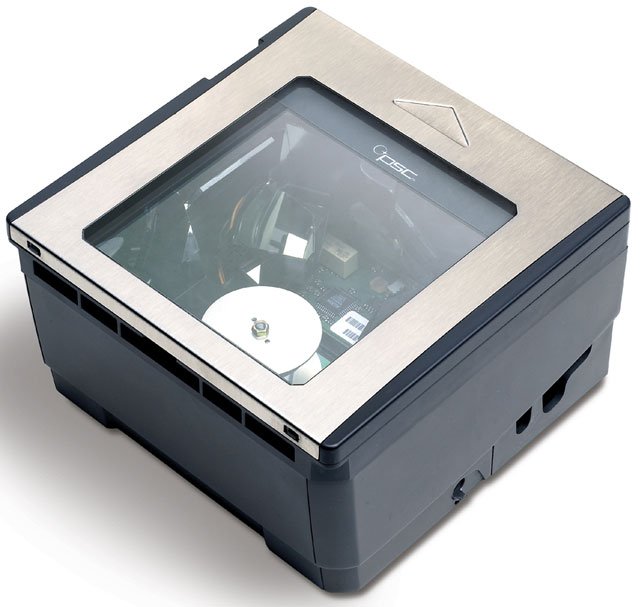

  Datalogic Magellan 2300HS Horizontal Bar Code Reader - Wired

Datalogic Magellan 2300HS Barcode Scanner Model Overview

The Datalogic Magellan 2300HS uses Magellan 8500 Series scanning technology to create one of the quickest and easiest-to-use horizontal scanners in the industry. The Magellan 2300HS features a large, dense scanning pattern to improve both checkout speed and operator ergonomics. The Magellan 2300HS supports all popular barcode symbologies including RSS. With the ability to upgrade the system software via flash memory, diagnostic reporting, the Productivity Index Reporting software and FirstStrike decoding, the Magellan 2300HS will be a productive part of any enterprise for years to come.
Datalogic M23-011 Barcode Scanner Overview

Datalogic's Magellan 2300HS Horizontal Bar Code Reader features OmegaTek Productivity Technology comprised of hardware and software innovations that significantly improve scanner performance by improving the first pass read rates on hard-to-read bar codes. The Magellan 2300HS offers best-in-class horizontal scanning performance and software for improving POS productivity. With these and other great features, plus a very economical price-point, the Magellan 2300HS Horizontal Bar Code Reader is the choice for horizontal single-plane POS scanning.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC Versions A&E
  • UPC Supplementals (Bookland & Coupon Code)
  • UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
  • Reduced Space Symbology (RSS-14, expanded & stacked)
  • EAN 8, 13
  • JAN 8, 13
  • EAN/JAN two label
  • UCC/EAN 128
  • Code 39 (with full ASCII)
  • Code 128
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Italian Pharmacode
  • Codabar/NW7
  • MSI/Plessey
Light Source:
Laser
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Form Factor:
In-counter
Height:
6"
Width:
6"
Depth:
3.4"
Weight (Approximate):
2.50 lb
Miscellaneous
Additional Information:

Supported Interfaces:

  • RS-232
  • IBM 46XX
  • IBM USB
  • USB
  • Keyboard Wedge

USB Cable separate

Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211701
