Datalogic Magellan 2200VS – Barcode Scanner – 1D

Part Number: M2200-00211-0701A
Model: Magellan 2200VS
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

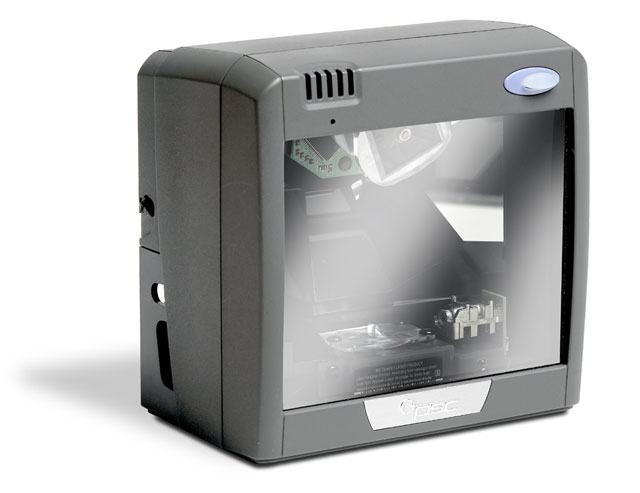

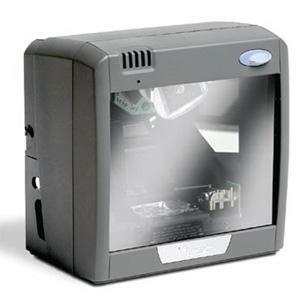

  Magellan 2200VS Vertical Scanner (Keyboard Wedge, US Power Supply and Standard Mount)
Explore all Datalogic Magellan 2200VS Barcode Scanners
Add to Quote
Datalogic M2200-00211-0701A Barcode Scanner
Datalogic M2200-00211-0701A Barcode Scanner
Datalogic M2200-00211-0701A Barcode Scanner
Datalogic M2200-00211-0701A Barcode Scanner
Datalogic M2200-00211-0701A Barcode Scanner Datalogic M2200-00211-0701A Barcode Scanner Datalogic M2200-00211-0701A Barcode Scanner Datalogic M2200-00211-0701A Barcode Scanner
Full specifications (PDF)

Datalogic Magellan 2200VS Barcode Scanner Model Overview

The Datalogic Magellan 2200VS uses Magellan 8500 Series scanning technology to create one of the quickest and easiest-to-use vertical scanners in the industry. The Magellan 2200VS features a large, dense scanning pattern to improve both checkout speed and operator ergonomics. The Magellan 2200VS supports all popular barcode symbologies including RSS. With the ability to upgrade the system software via flash memory, diagnostic reporting, the Productivity Index Reporting software and FirstStrike decoding, the Magellan 2200VS will be a productive part of any enterprise for years to come.
Datalogic M2200-00211-0701A Barcode Scanner Overview

The Magellan 2200VS Bar Code Reader features Aggressive vertical scan volume, RSS Decoding capability, Flash memory for easy software upgrades Powered auxiliary RS-232 port for easy integration of a handheld scanner and Host diagnostic reporting.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • UPC Supplementals
  • Bookland
  • Coupon Code
  • UPC P5 Add-ons
  • UPC P2 Add-ons
  • C128
  • RSS-14
  • RSS-Stacked
  • RSS-Expanded
  • EAN-8
  • EAN-13
  • JAN-8
  • JAN-13
  • EAN/JAN Two Label
  • UCC/EAN 128
  • Code 39 Full ASCII
  • Code 128
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Italian Pharmacode
  • Codabar (NW7)
  • MSI/PLESSEY
Depth of Field:
  • 8"
Scan Pattern:
Linear
Cable Type Included:
USB
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Form Factor:
Desktop
Height:
6"
Width:
6"
Depth:
3.8"
Weight (Approximate):
2.50 lb
Miscellaneous
Package Contents:
  • Magellan 2200VS Bar Code Reader
  • Standard Counter Mount
  • 15 FT USB Cable
Additional Information:

Supported Interfaces:

  • Serial
  • IBM 46XX
  • USB
  • Keyboard Wedge

    • Certifications & Standards:

    Electrical:

    • EN60950 (TÜV Europe)
    • PSE-Mark (Japan)
    • UL 60950 (USA)
    • CSA 60950 (Canada)

    Emissions:

    • CISPR22-B (World)
    • FCC part 15 Class B (USA)
    • VCCI-B (Japan)
    • EN 55022-B (Europe)
    • NOM (Mexico)

    Laser Safety:

    • CDRH Class IIa (USA/Canada)
    • EN 60825-1 Class 1 (Europe)
    • IEC 60825-1 Class 1 (World) (CAUTION: Laser Radiation - do not stare into beam)
    • IEC 60825 Class 1 (Europe)
    Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    1 Year
    Item Numbers
    UNSPSC: 43211701

    Recommended Accessories

    Category

    • Computer Accessories (2)
    • Scanner Accessories (12)

    Recommended Accessories for Model: Datalogic M2200-00211-0701A Barcode Scanner

    Top Computer Accessories Purchased With Datalogic M2200-00211-0701A

    Top Scanner Accessories Purchased With Datalogic M2200-00211-0701A

    See All Scanner Accessories for Datalogic M2200-00211-0701A Barcode Scanner >
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Datalogic M2200-00211-0701A Barcode Scanner is also known as PSC-M2200002110701A or M2200002110701A.
