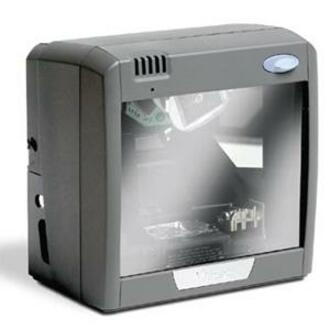

Datalogic M2200-00111-0604A Barcode Scanner

The Datalogic M2200-00111-0604A Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Datalogic Magellan 2200VS - Magellan 2200VS Vertical Scanner (US Power Supply and USB Cable #8-0732-04)
  • Creates a high ROI because of diminishment in workforce and descend inventory errors
  • Laser scan engine guarantees rapid error free data entry
  • Wired connectivity makes this scanner ideal for retail and desktop applications
Read More
Discontinued Need Assistance?
Add to Quote

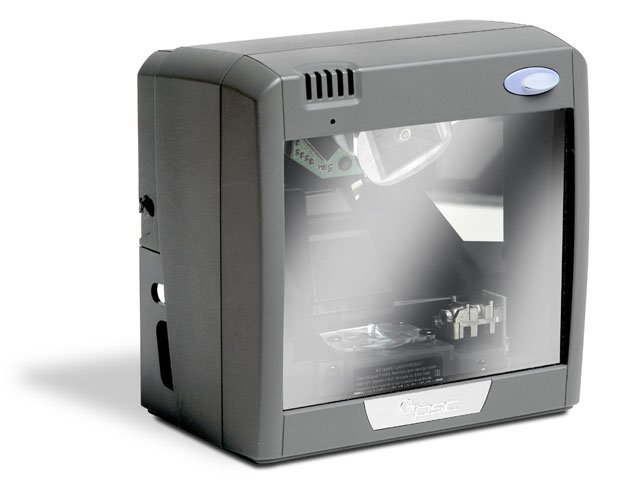

Datalogic Magellan 2200VS Barcode Scanner Model Overview
The Datalogic Magellan 2200VS uses Magellan 8500 Series scanning technology to create one of the quickest and easiest-to-use vertical scanners in the industry. The Magellan 2200VS features a large, dense scanning pattern to improve both checkout speed and operator ergonomics. The Magellan 2200VS supports all popular barcode symbologies including RSS. With the ability to upgrade the system software via flash memory, diagnostic reporting, the Productivity Index Reporting software and FirstStrike decoding, the Magellan 2200VS will be a productive part of any enterprise for years to come.
Datalogic M2200-00111-0604A Barcode Scanner Overview

The Magellan 2200VS features OmegaTek Productivity Technology comprised of hardware and software innovations that significantly improve scanner performance by improving the first pass read rates on hard-to-read bar codes. The Magellan 2200VS offers best-in-class vertical scanning performance and software for improving POS productivity. With these and other great features, plus a very economical price-point, the Magellan 2200VS is the choice for vertical single-plane POS scanning.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC Versions A&E
  • UPC Supplementals (Bookland & Coupon Code)
  • UPC Add-on C128
  • UPC Add-on sub 2 or P2
  • UPC Add-on sub 5 or P5
  • RSS-14
  • RSS-Expanded
  • RSS-Stacked
  • EAN-8
  • EAN-13
  • JAN-8
  • JAN-13
  • EAN/JAN Two Label
  • UCC/EAN 128
  • Code 39 Full ASCII
  • Code 128
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Italian Pharmacode
  • Codabar (NW7)
  • MSI/PLESSEY
  • RSS
Light Source:
Laser
Depth of Field:
  • 8"
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Power Supply Included:
Yes
Physical Characteristics
Form Factor:
Desktop
Height:
6"
Width:
6"
Depth:
3.8"
Weight (Approximate):
2.50 lb
Miscellaneous
Package Contents:
  • Magellan 2200VS Bar Code Reader
  • 15 ft USB Type A Cable
  • European Power Supply
Additional Information:

Supported Interfaces:

  • Serial
  • IBM 46XX
  • USB
  • Keyboard Wedge
  • Certifications & Standards:

    Electrical:

    • EN60 950(TÜVEurope)
    • PSE-Mark(Japan)
    • UL60950(USA)
    • CSA 60950(Canada)

    Emissions:

    • CISPR22-B(World)
    • FCC part 15 Class B(USA)
    • VCCI-B(Japan)
    • EN 55022-B(Europe)
    • NOM(Mexico)

    Laser Safety:

    • CDRH Class IIa(USA/Canada)
    • EN 60825-1 Class 1(Europe)
    • IEC 60825-1 Class 1 (World)
    • IEC 60825 Class 1(Europe)

    Restriction of Hazardous Substances:

    • EU RoHS
    Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    1 Year
    Item Numbers
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Datalogic M2200-00111-0604A Barcode Scanner is also known as PSC-M2200001110604A
