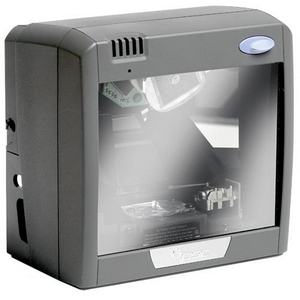

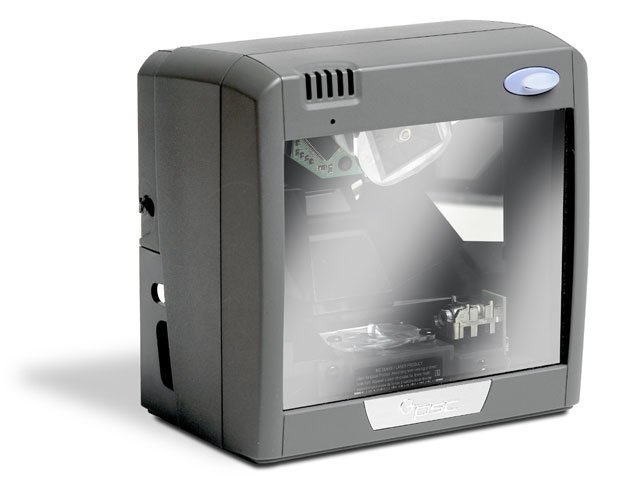

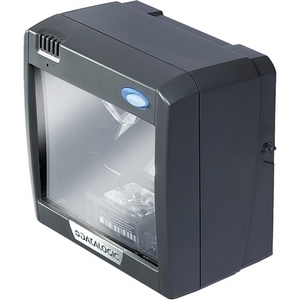

Datalogic Magellan 2200VS – Barcode Scanner – 1D

Part Number: M2200-00102-0000R
Model: Magellan 2200VS

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Magellan 2200VS Vertical Scanner (Multiple Interface, RSS and No AC). RoHS Compliant.

Datalogic Magellan 2200VS Barcode Scanner Model Overview

The Datalogic Magellan 2200VS uses Magellan 8500 Series scanning technology to create one of the quickest and easiest-to-use vertical scanners in the industry. The Magellan 2200VS features a large, dense scanning pattern to improve both checkout speed and operator ergonomics. The Magellan 2200VS supports all popular barcode symbologies including RSS. With the ability to upgrade the system software via flash memory, diagnostic reporting, the Productivity Index Reporting software and FirstStrike decoding, the Magellan 2200VS will be a productive part of any enterprise for years to come.
Datalogic M2200-00102-0000R Barcode Scanner Overview

The Magellan 2200VS features OmegaTek Productivity Technology comprised of hardware and software innovations that significantly improve scanner performance by improving the first pass read rates on hard-to-read bar codes. The Magellan 2200VS offers best-in-class vertical scanning performance and software for improving POS productivity. With these and other great features, plus a very economical price-point, the Magellan 2200VS is the choice for vertical single-plane POS scanning.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC Versions A&E
  • UPC Supplementals (Bookland & Coupon Code)
  • UPC Add-on C128
  • UPC Add-on sub 2 or P2
  • UPC Add-on sub 5 or P5
  • RSS-14
  • RSS-Expanded
  • RSS-Stacked
  • EAN-8
  • EAN-13
  • JAN-8
  • JAN-13
  • EAN/JAN Two Label
  • UCC/EAN 128
  • Code 39 Full ASCII
  • Code 128
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Italian Pharmacode
  • Codabar (NW7)
  • MSI/PLESSEY
Depth of Field:
  • 8"
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Form Factor:
Desktop
Height:
6"
Width:
6"
Depth:
3.8"
Weight (Approximate):
2.50 lb
Miscellaneous
Additional Information:

Supported Interfaces:

  • Serial
  • IBM 46XX
  • USB
  • Keyboard Wedge
  • Certifications & Standards:

    Electrical:

    • EN60 950(TÜVEurope)
    • PSE-Mark(Japan)
    • UL60950(USA)
    • CSA 60950(Canada)

    Emissions:

    • CISPR22-B(World)
    • FCC part 15 Class B(USA)
    • VCCI-B(Japan)
    • EN 55022-B(Europe)
    • NOM(Mexico)

    Laser Safety:

    • CDRH Class IIa(USA/Canada)
    • EN 60825-1 Class 1(Europe)
    • IEC 60825-1 Class 1 (World)
    • IEC 60825 Class 1(Europe)

    Restriction of Hazardous Substances:

    • EU RoHS
    Environmentally Friendly:
    Yes
    Warranty
    Limited Warranty:
    1 Year
    Item Numbers
    UNSPSC: 43211701
