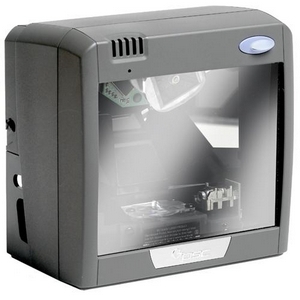

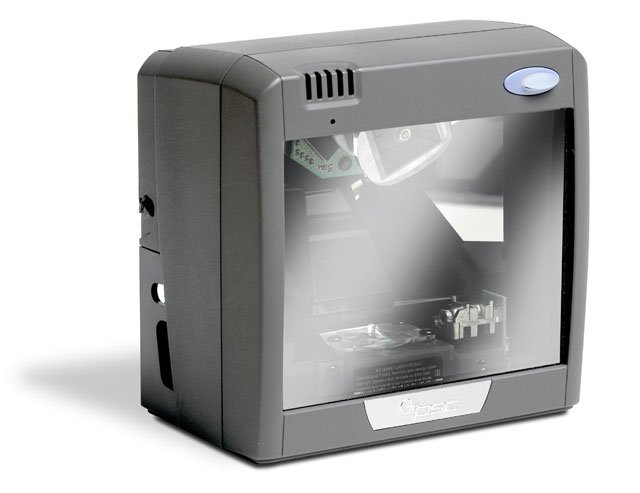

Datalogic Magellan 2200VS – Barcode Scanner – 1D

Part Number: M2200-00102-0000
Model: Magellan 2200VS

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Magellan 2200VS Vertical Scanner (Multiple Interface, RSS and No AC)

Datalogic Magellan 2200VS Barcode Scanner Model Overview

The Datalogic Magellan 2200VS uses Magellan 8500 Series scanning technology to create one of the quickest and easiest-to-use vertical scanners in the industry. The Magellan 2200VS features a large, dense scanning pattern to improve both checkout speed and operator ergonomics. The Magellan 2200VS supports all popular barcode symbologies including RSS. With the ability to upgrade the system software via flash memory, diagnostic reporting, the Productivity Index Reporting software and FirstStrike decoding, the Magellan 2200VS will be a productive part of any enterprise for years to come.
Datalogic M2200-00102-0000 Barcode Scanner Overview

The Magellan 2200VS features OmegaTek Productivity Technology comprised of hardware and software innovations that significantly improve reader performance by improving the first pass read rates on hard-to-read bar codes. The Magellan 2200VS offers best-in-class vertical reader performance and software for improving POS productivity. With these and other great features, plus a very economical price-point, the Magellan 2200VS is the choice for vertical single-plane POS reading.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • UPC Versions A&E
  • UPC Supplementals (Bookland & Coupon Code)
  • UPC Add-ons sub 2 or P2
  • UPC Add-ons sub 5 or P5
  • UPC Add-ons C128
  • RSS-14
  • RSS expanded
  • RSS stacked
  • EAN 8
  • EAN 13
  • JAN 8
  • JAN 13
  • EAN/JAN two label
  • UCC/EAN 128
  • Code 39 (with full ASCII)
  • Code 128
  • Code 93
  • Interleaved 2 of 5
  • Standard 2 of 5
  • Italian Pharmacode
  • Codabar/NW7
  • MSI/Plessey
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Form Factor:
Desktop
Height:
6"
Width:
6"
Depth:
3.8"
Weight (Approximate):
2.50 lb
Miscellaneous
Additional Information:

Communication Host:

  • Standard RS-232
  • IBM 46XX
  • IBM USB
  • USB Keyboard
  • Keyboard Wedge

USB Cable separate

Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211701
