Datalogic GM4431-BK-910K2 Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review

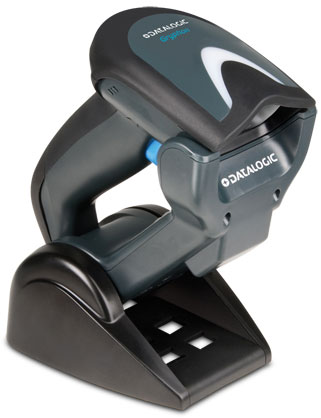

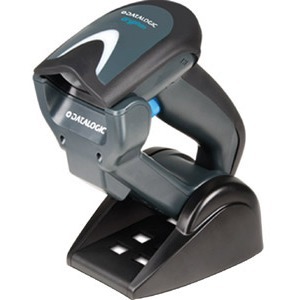

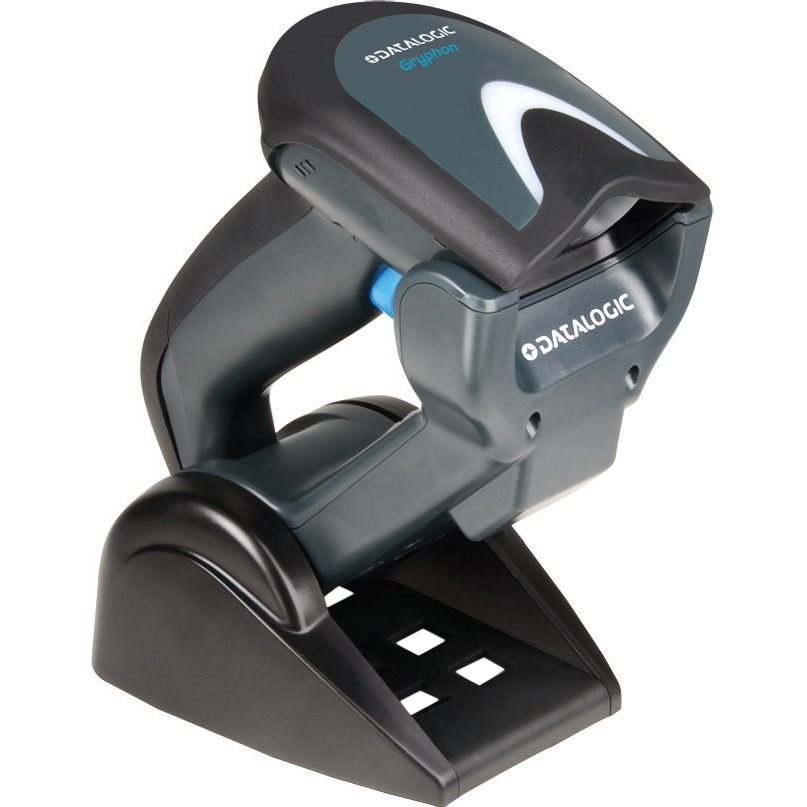

Datalogic Gryphon I GM4400 - Gryphon Scanner (GM4431, RS-232 Kit, Black, STAR, 910 MHz, Includes Base/Cable)
$555.40
Ships in 3-5 Days
Protect Your Product
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:
Point-to-point and multi-point transmission

The Gryphon I GM4400 blends the most advanced reading technology and the best suitable radio technology with a unique set of features to allow operators maximum efficiency and ease of use. Lightweight and comfortable to use, the steady, dim, deep red illumination light is much easier on the eyes than other similar products with flicker illumination. The highly visible 4-Dot aimer clearly defines the reading zone and the center cross provides a locator for targeting when scanning a sheet or product with multiple barcodes. Featuring narrow band radio communications with Datalogic"s STAR Cordless System, the Gryphon I GM4400 provides increased productivity and flexibility in the workplace. The Gryphon I GM4400 reader series offer scalable solutions from simple point-to-point applications to point-to-multipoint installations with up to 16 readers connected to the same base station. The Gryphon I GM4400 readers "Batch Mode" capability allows thousands of codes to be stored in its" memory. This feature, combined with a long-lasting 60,000 scans-per-charge Lithium-Ion battery allows uninterrupted scanning with unlimited mobility.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Wireless
  • Scanning Distance: 98.43 ft
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Auto Discriminates All Standard 1D Codes Including GS1 DataBar Liinearcodes
    • 2D Codes:
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • QR Code
    • Postal Codes:
    • Australian Post
    • China Post
    • IMB
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
    • 1D / Linearcodes:
    • Auto Discriminates All Standard 1D Codes Including GS1 DataBar Liinearcodes
    • 2D Codes:
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • QR Code
    • Postal Codes:
    • Australian Post
    • China Post
    • IMB
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
  • Maximum Scan Resolution: 7 mil
  • Depth of Field:
    • 1.60" - 7.50"@5 mil - Code 39
    • 0.40" - 11.80"@10 mil - Code 39
    • 0.80" - 6.30"@10 mil - Data Matrix
    • 0 mil - 9.30"@15 mil - Data Matrix
    • 0.60" - 15.70"@13 mil - EAN-13
    • 0.20" - 8.60"@10 mil - PDF417
    • 1.20" - 4.90"@10 mil - QR Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: GM4400 2D
  • Product Name: Gryphon GM4400 2D General Purpose Handheld Area Imager Barcode Reader with Datalogic's STAR Cordless System
  • Product Line: Gryphon

Physical Characteristics

  • Height: 7.1"
  • Width: 2.8"
  • Depth: 3.9"
  • Color: Black
  • Weight (Approximate): 8.64 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • China RoHS
  • Package Contents:
    • Gryphon GM4400 2D General Purpose Handheld Area Imager Barcode Reader with Datalogic's STAR Cordless System
    • BC4031 Base
    • Cable 90G001070
    • Power Supply
    • Line Cord
    • Gryphon GM4400 2D General Purpose Handheld Area Imager Barcode Reader with Datalogic's STAR Cordless System
    • BC4031 Base
    • Cable 90G001070
    • Power Supply
    • Line Cord

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Warranty

  • Limited Warranty: 3 Year

Network & Communication

  • Radio Frequency: Yes

Full specifications (PDF)
