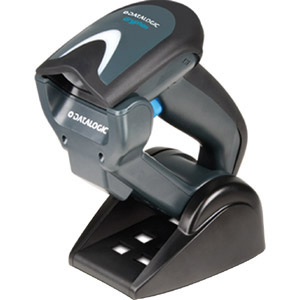

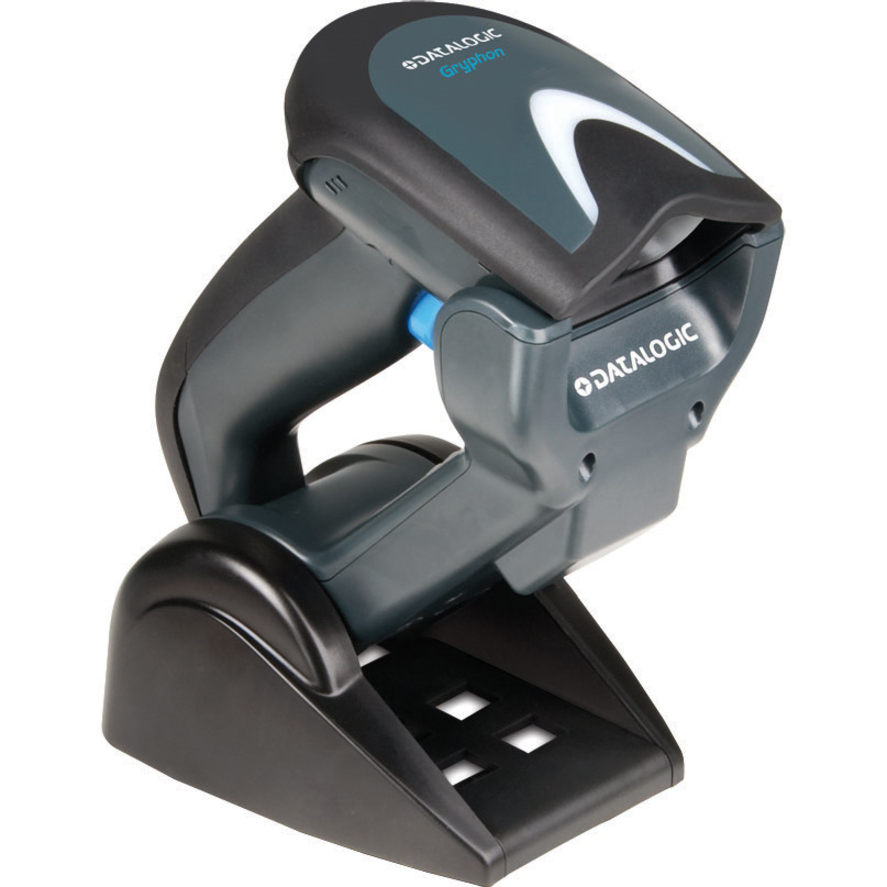

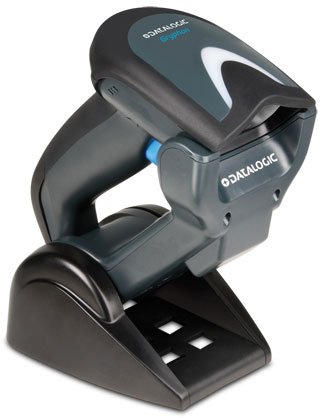

Datalogic GM4430-BK-433K1 Barcode Scanner

Datalogic Gryphon I GM4400 - Gryphon GM4400 Handheld Barcode scanner Kit - Wireless Connectivity - 98.43 ft. Scan Distance - 1D, 2D - Laser - Imager - Omnidirectional -, Radio Frequency - USB - Black
  • Increase productivity and performance by excluding the cable
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • With laser scanning technology you don't have to use any additional lighting as it works effectively in low ambient lighting conditions too
Read More

Full specifications (PDF)

Point-to-point and multi-point transmission
The Gryphon I GM4400 blends the most advanced reading technology and the best suitable radio technology with a unique set of features to allow operators maximum efficiency and ease of use. Lightweight and comfortable to use, the steady, dim, deep red illumination light is much easier on the eyes than other similar products with flicker illumination. The highly visible 4-Dot aimer clearly defines the reading zone and the center cross provides a locator for targeting when scanning a sheet or product with multiple barcodes. Featuring narrow band radio communications with Datalogic"s STAR Cordless System, the Gryphon I GM4400 provides increased productivity and flexibility in the workplace. The Gryphon I GM4400 reader series offer scalable solutions from simple point-to-point applications to point-to-multipoint installations with up to 16 readers connected to the same base station. The Gryphon I GM4400 readers "Batch Mode" capability allows thousands of codes to be stored in its" memory. This feature, combined with a long-lasting 60,000 scans-per-charge Lithium-Ion battery allows uninterrupted scanning with unlimited mobility.
Datalogic GM4430-BK-433K1 Overview

With rich feature sets, the Gryphon series from Datalogic Scanning represents the premium level of data collection equipment for general purpose applications. The Gryphon GM4400 2D scanner blends the most advanced reading technology and the best suitable radio technology with a unique set of features to allow operators maximum efficiency and ease of use.

Protect Your Product
Datalogic Service Contracts (W-GM44-R)
GRYPHON GM4400 EofC, 2 DAYS COMP, 1 YEAR RENEWAL
Temporarily out of stock; available to order
$28.13
+ Add to Quote
Datalogic Service Contracts (W-GM44-2)
GRYPHON GM4400, EOFC, 2 DAYS COMP, 2 YR
Temporarily out of stock; available to order
$23.34
+ Add to Quote
Datalogic Service Contract - 3 year (W-BC4-3)
Service Plus 2-Day Program - 3 Year Extended Service - Service - 2 Business Day - Carry-in - Maintenance - Parts & Labor - Physical Service
Temporarily out of stock; available to order
$19.24
+ Add to Quote
Datalogic Service Contracts (E-GM44-R)
EASEOFCARE 5 day - 1 Year Extended Service (Renewal) - Service - Maintenance - Parts & Labor - Physical Service
Temporarily out of stock; available to order
$22.42
+ Add to Quote
Datalogic Service Contract - 3 year (W-GM44-3)
EASEOFCARE 2-Day Comprehensive - 3 Year Extended Service - Service - Maintenance - Parts & Labor - Physical Service
Temporarily out of stock; available to order
$43.00
+ Add to Quote

Full specifications (PDF)

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / Linear Codes:

  • Auto Discriminates All Standard 1D Codes Including GS1 DataBar Liinear Codes

2D Codes:

  • Aztec Code
  • China Han Xin Code
  • Data Matrix
  • MaxiCode
  • QR Code

Postal Codes:

  • Australian Post
  • China Post
  • IMB
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Light Source:
Laser
Image Sensor Type:
Imager
Maximum Scan Resolution:
7 mil
Depth of Field:
  • 1.6" - 7.5"@5mil - Code 39
  • 0.4" - 11.8"@10mil - Code 39
  • 0.8" - 6.3"@10mil - Data Matrix
  • 0" - 9.3"@15mil - Data Matrix
  • 0.6" - 15.7"@13mil - EAN-13
  • 0.2" - 8.6"@10mil - PDF417
  • 1.2" - 4.9"@10mil - QR Code
Scan Pattern:
Omni-directional
Scanning Distance:
98.43 ft
Network & Communication
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
USB
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Color:
Black
Height:
7.1"
Width:
2.8"
Depth:
3.9"
Weight (Approximate):
8.64 oz
Miscellaneous
Additional Information:

USB Cable separate

Item Numbers
GTIN: 5711045410840
EAN: 5711045410840
UNSPSC: 43211701
