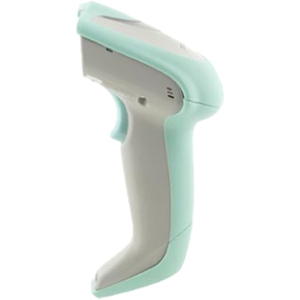

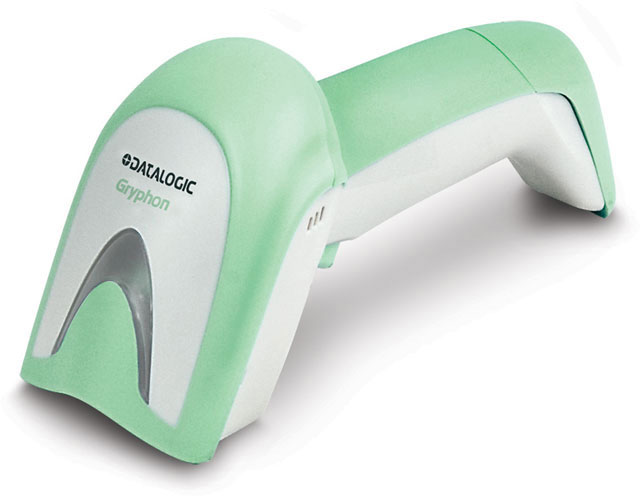

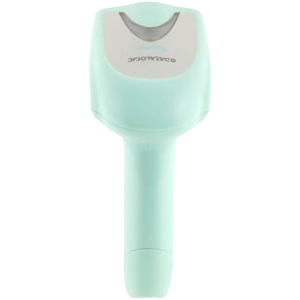

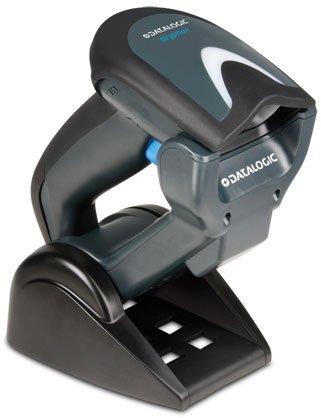

Datalogic GM4400-HC-433 Barcode Scanner

Datalogic Gryphon I GM4400 - Gryphon GM4400 Handheld Barcode Reader - Wireless Connectivity - 98.43 ft. Scan Distance - 1D, 2D - Laser - Imager - Omnidirectional -, Radio Frequency
Point-to-point and multi-point transmission

The Gryphon I GM4400 blends the most advanced reading technology and the best suitable radio technology with a unique set of features to allow operators maximum efficiency and ease of use. Lightweight and comfortable to use, the steady, dim, deep red illumination light is much easier on the eyes than other similar products with flicker illumination. The highly visible 4-Dot aimer clearly defines the reading zone and the center cross provides a locator for targeting when scanning a sheet or product with multiple barcodes. Featuring narrow band radio communications with Datalogic"s STAR Cordless System, the Gryphon I GM4400 provides increased productivity and flexibility in the workplace. The Gryphon I GM4400 reader series offer scalable solutions from simple point-to-point applications to point-to-multipoint installations with up to 16 readers connected to the same base station. The Gryphon I GM4400 readers "Batch Mode" capability allows thousands of codes to be stored in its" memory. This feature, combined with a long-lasting 60,000 scans-per-charge Lithium-Ion battery allows uninterrupted scanning with unlimited mobility.

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Wireless
  • Scanning Distance: 98.43 ft
  • Light Source: Laser
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Auto Discriminates All Standard 1D Codes Including GS1 DataBar Liinearcodes
    • 2D Codes:
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • QR Code
    • Postal Codes:
    • Australian Post
    • China Post
    • IMB
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
    • 1D / Linearcodes:
    • Auto Discriminates All Standard 1D Codes Including GS1 DataBar Liinearcodes
    • 2D Codes:
    • Aztec Code
    • China Han Xin Code
    • Data Matrix
    • MaxiCode
    • QR Code
    • Postal Codes:
    • Australian Post
    • China Post
    • IMB
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)
    • Stacked Codes:
    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites
  • Maximum Scan Resolution: 7 mil
  • Depth of Field:
    • 1.60" - 7.50"@5 mil - Code 39
    • 0.40" - 11.80"@10 mil - Code 39
    • 0.80" - 6.30"@10 mil - Data Matrix
    • 0 mil - 9.30"@15 mil - Data Matrix
    • 0.60" - 15.70"@13 mil - EAN-13
    • 0.20" - 8.60"@10 mil - PDF417
    • 1.20" - 4.90"@10 mil - QR Code

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: GM4400
  • Product Name: Gryphon GM4400 Handheld Barcode Reader
  • Product Line: Gryphon

Physical Characteristics

  • Height: 7.1"
  • Width: 2.8"
  • Depth: 3.9"
  • Weight (Approximate): 8.64 oz

Network & Communication

  • Radio Frequency: Yes

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Full specifications (PDF)

Full specifications (PDF)

Brand Datalogic
Model Gryphon I GM4400
Connectivity Cordless
Scan Pattern Area
Scanner Type Imager
Scanner Capability 2D
