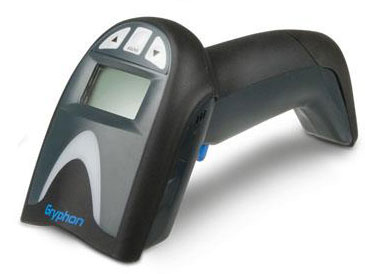

Datalogic GM4100-BK-D910 Barcode Scanner


0.0

(No reviews)

Be the first to

Write a Review
Datalogic Gryphon I GM4100 - SCANNER ONLY, Linear Imager, 910 MHz, Display. Color: Black. Cables and accessories must be purchased separately.
Radio frequencies available in 433 MHz or 910 MHz

The Datalogic Gryphon I GM4100 cordless linear imaging readers offer the richest feature set among general purpose product offerings. Extremely versatile and durable, the Gryphon I GM4100 cordless linear imaging readers are the ultimate solution for applications in retail and light industrial environments where mobility is necessary for improved productivity. Mobile communications also eliminate the restraints caused by cabled devices, providing a safer and more efficient environment for employees. The Gryphon I GM4100 reader series offer scalable solutions from simple point-to-point applications to networking capabilities combined with seamless roaming for complex installations. An optional display with a 3-button keypad provides battery status, radio coverage indicator and enables operator interaction with the host system.

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Linear
  • Scan Rate: 325 scan/s
  • Connectivity Technology: Wireless
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes
    • GS1 DataBar Linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • 1D / Linearcodes:
    • Autodiscriminates All Standard 1D Codes
    • GS1 DataBar Linearcodes
    • Postal Codes:
    • China Post
    • Stacked Codes:
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
  • Maximum Scan Resolution: 3 mil
  • Depth of Field:
    • 2.30" - 7"@5 mil
    • 1.40" - 11.70"@7.50 mil
    • 0.80" - 17"@10 mil
    • 1.20" - 23.40"@13 mil
    • 1.20" - 31.20"@20 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: GM4100-D
  • Product Name: Gryphon GM4100-D Barcode Reader
  • Product Line: Gryphon

Physical Characteristics

  • Height: 7.1"
  • Width: 2.8"
  • Depth: 3.9"
  • Color: Black

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: China RoHS

Battery Information

  • Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

  • Radio Frequency: Yes

Warranty

  • Limited Warranty: 3 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Datalogic
Model Gryphon I GM4100
Connectivity Cordless
Scanner Capability 1D
Scanner Type Imager
Scan Pattern LED Beam
Form Factor Handheld
Included Cables Scanner Only - No Cable
Communication Type RF
Ruggedness General Purpose
