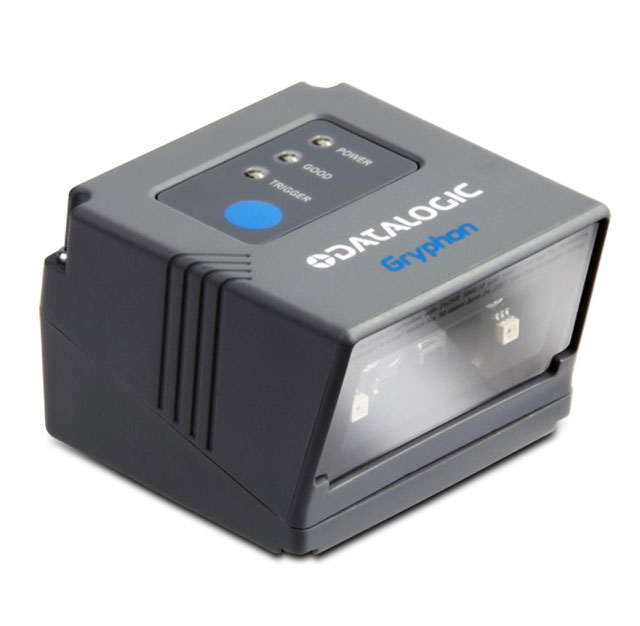

Designed for easy integration, the Gryphon GFS4400 2D module provides a 'plugand-play' solution for system designers. Constructed using high-impact resin to withstand repeated cleanings with solvents and disinfectant solutions, the sealed enclosure meets industrial standards against water and particulates to provide dependable scanning performance.
ADVANCED IMAGING TECHNOLOGY
The GFS4400 2D OEM module features outstanding near-field reading, a wide angle field-of-view, high motion tolerance, snappy reading, and also offers excellent performance on decoding poor or damaged bar codes. As with all Gryphon readers, the GFS4400 reader offers goodread visual confirmation with Datalogic's patented 'Green Spot' technology.
RED ILLUMINATING LIGHT AND 4-DOT AIMER
User comfort is maximized with the GFS4400 OEM module's steady, deep red illumination light. Easier on the eyes than competitive products with flicker illumination, the highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads. The aimer's center cross provides a locator for targeted scanning in a multiple bar code environment.
What barcode types does the Datalogic GFS4470-BK scanner read?
The Datalogic GFS4470-BK is a 2D imager that autodiscriminates all standard 1D codes including GS1 DataBar linear codes. With its advanced imaging technology and 0.076 mm resolution capability, it can read barcodes down to 4 mils, making it suitable for both standard and high-density barcode applications in warehouse and logistics environments.
Is the Datalogic GFS4470-BK durable enough for warehouse environments?
Yes, the GFS4470-BK is built for industrial use with an IP54 particulate and water sealing rating, withstands repeated drops from 0.76 m onto concrete, and features 16 kV ESD protection. It operates reliably in temperatures from 0 to 50°C and handles ambient light conditions from 0 to 100,000 lux, making it ideal for demanding warehouse and logistics operations.
What connectivity options are available with the GFS4470-BK?
The Datalogic GFS4470-BK offers dual connectivity with both RS-232 and USB interfaces, providing flexibility for integration into various warehouse management and point-of-sale systems. The scanner comes with a 2.0 m RS-232 cable included and draws typical operating current of 390 mA at 5 VDC.
What is the reading performance and speed of the GFS4470-BK?
The GFS4470-BK delivers a maximum read rate of 320 reads per second with excellent reading angles—pitch of ±65°, roll of ±35°, and skew of ±65°. It features Datalogic's patented 'Green Spot' good read feedback along with beeper and LED indicators, ensuring reliable scanning confirmation in fast-paced warehouse environments.
How does the 4-Dot aimer help with scanning accuracy?
The GFS4470-BK's highly visible 4-Dot aimer with center cross defines a precise reading zone and reduces accidental reads, which is especially valuable when scanning multiple barcodes in close proximity. The deep red illumination (630-670 nm) is easier on the eyes than flicker-based competitors and provides clear targeting for operators in warehouse picking and receiving operations.
Can I get the Datalogic GFS4470-BK with custom colors or logos?
The GFS4470-BK is available in grey as standard, and Datalogic offers other colors and custom logo options for minimum quantity purchases. Contact us today at barcodesinc.com to discuss custom configurations and bulk ordering options for your warehouse operations.
The Datalogic GFS4470-BK Barcode Scanner is also known as
DTL-GFS4470BK
or GFS4470BK.
